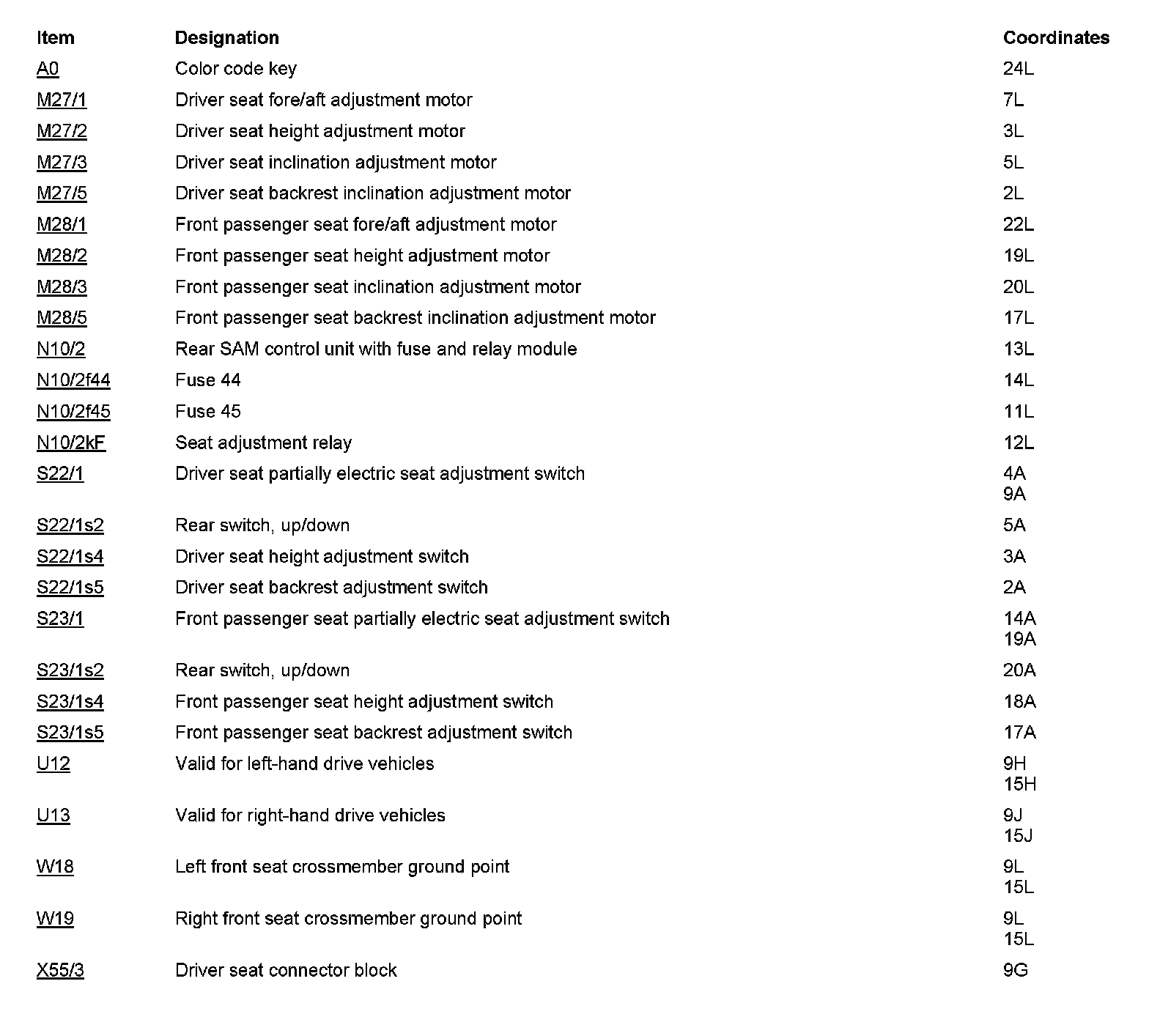

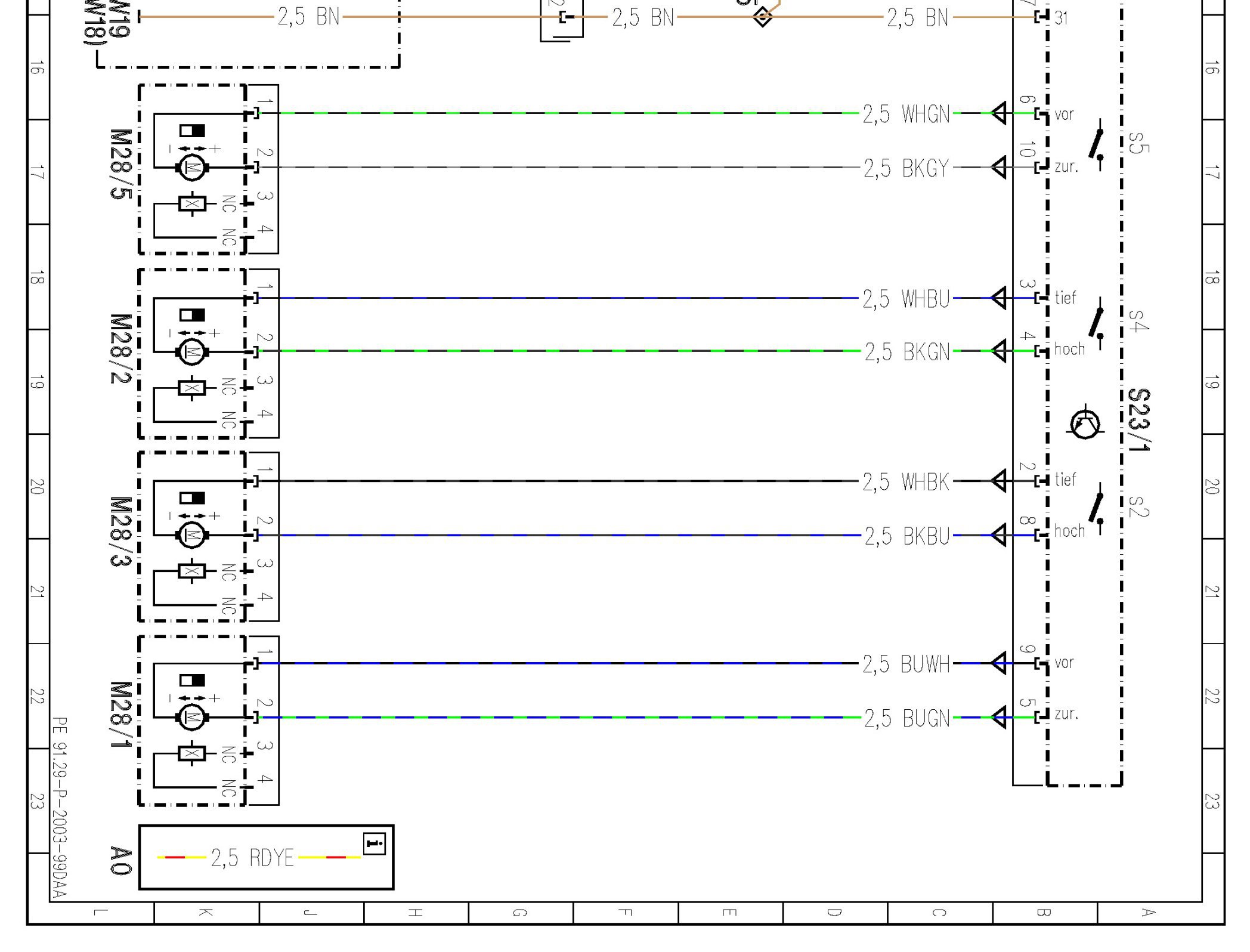

PE91.29-P-2003DAA Partially Electric Seat Adjustment (ESA [ESV]) Wiring Diagram

PE91.29-P-2003DAA Partially Electric Seat Adjustment (ESA [ESV]) Wiring Diagram
MODEL 212.0 /2
- except CODE (275) Memory package (electrically adjustable front seats)

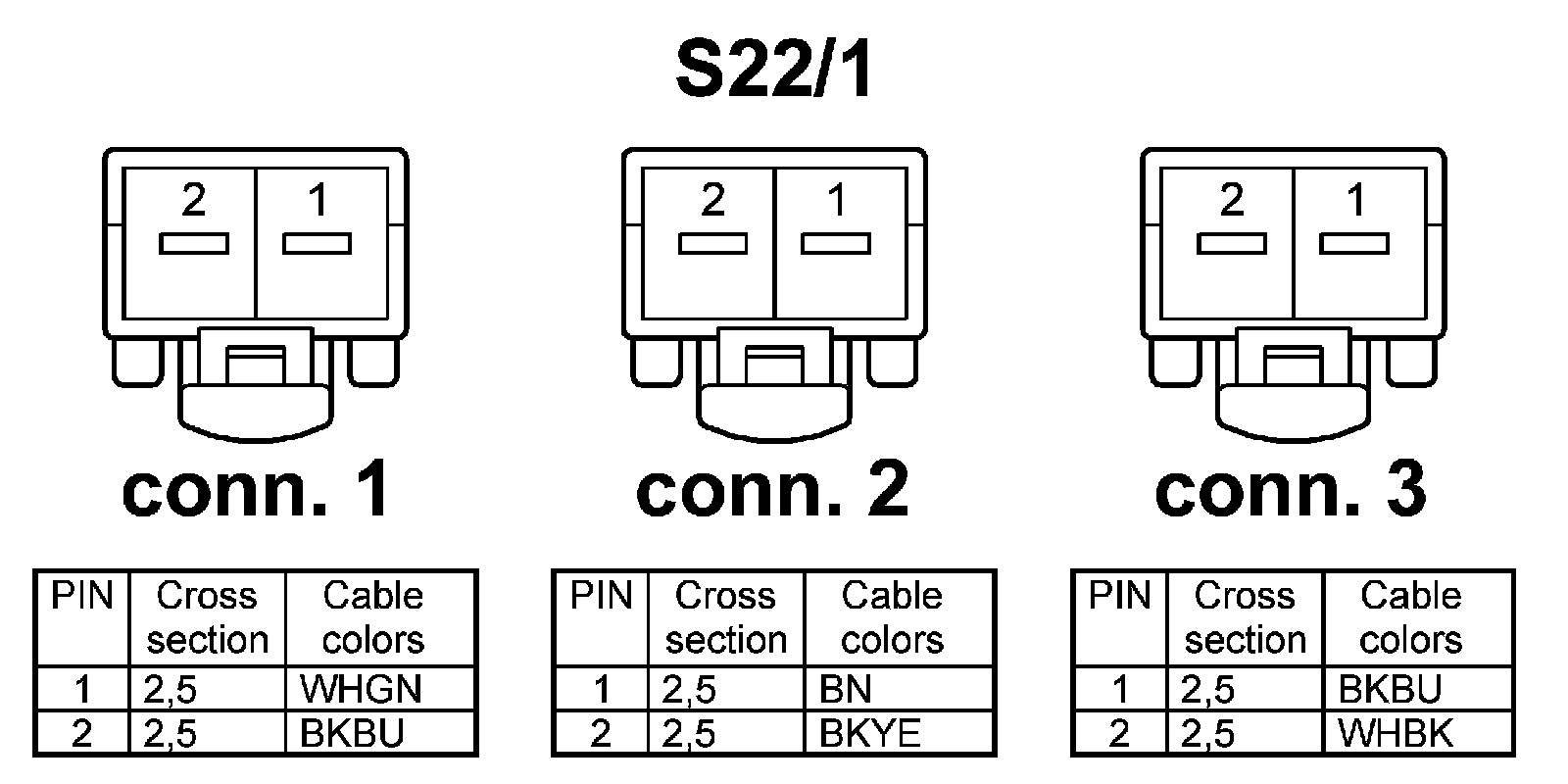

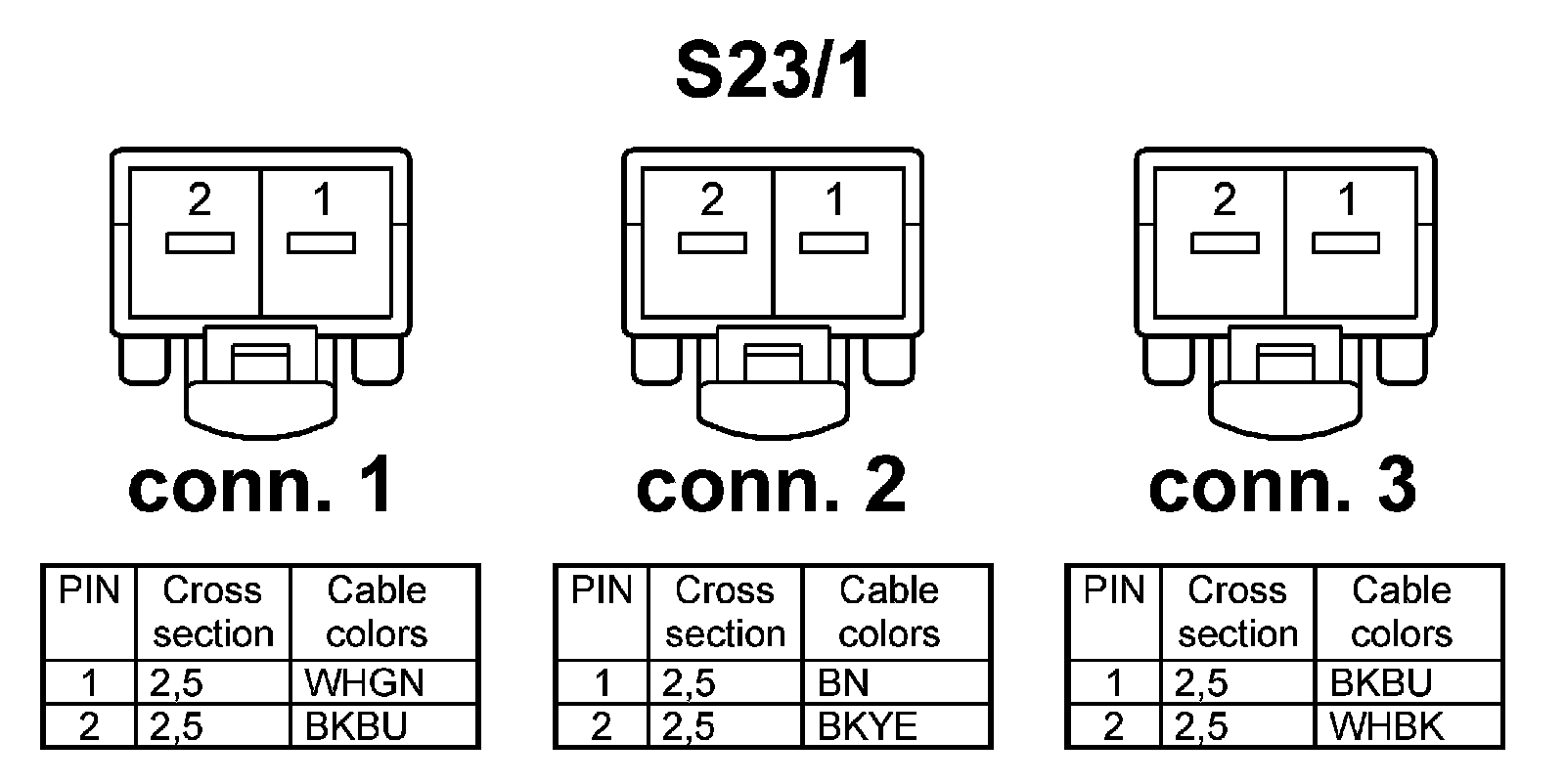

- Switch S22/1, S23/1


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
