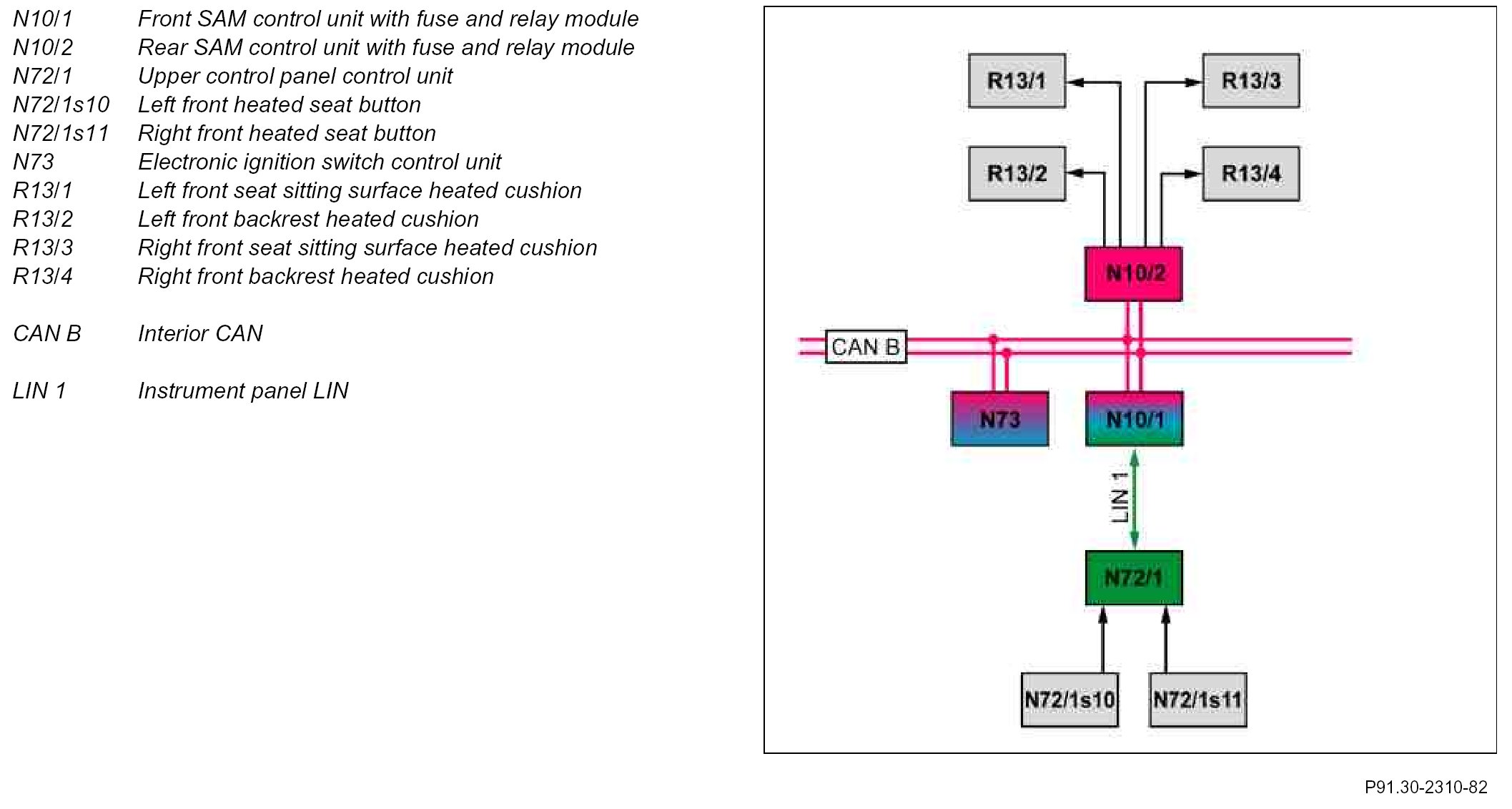

GF91.30-P-0003-03FL Seat Heater (SIH) Block Diagram



GF91.30-P-0003-03FL Seat Heater (SIH) Block Diagram
- with CODE (873) Heated left and right front seats
- with CODE (401) Front comfort seats, including seat heating and seat ventilation

Component Identification:
