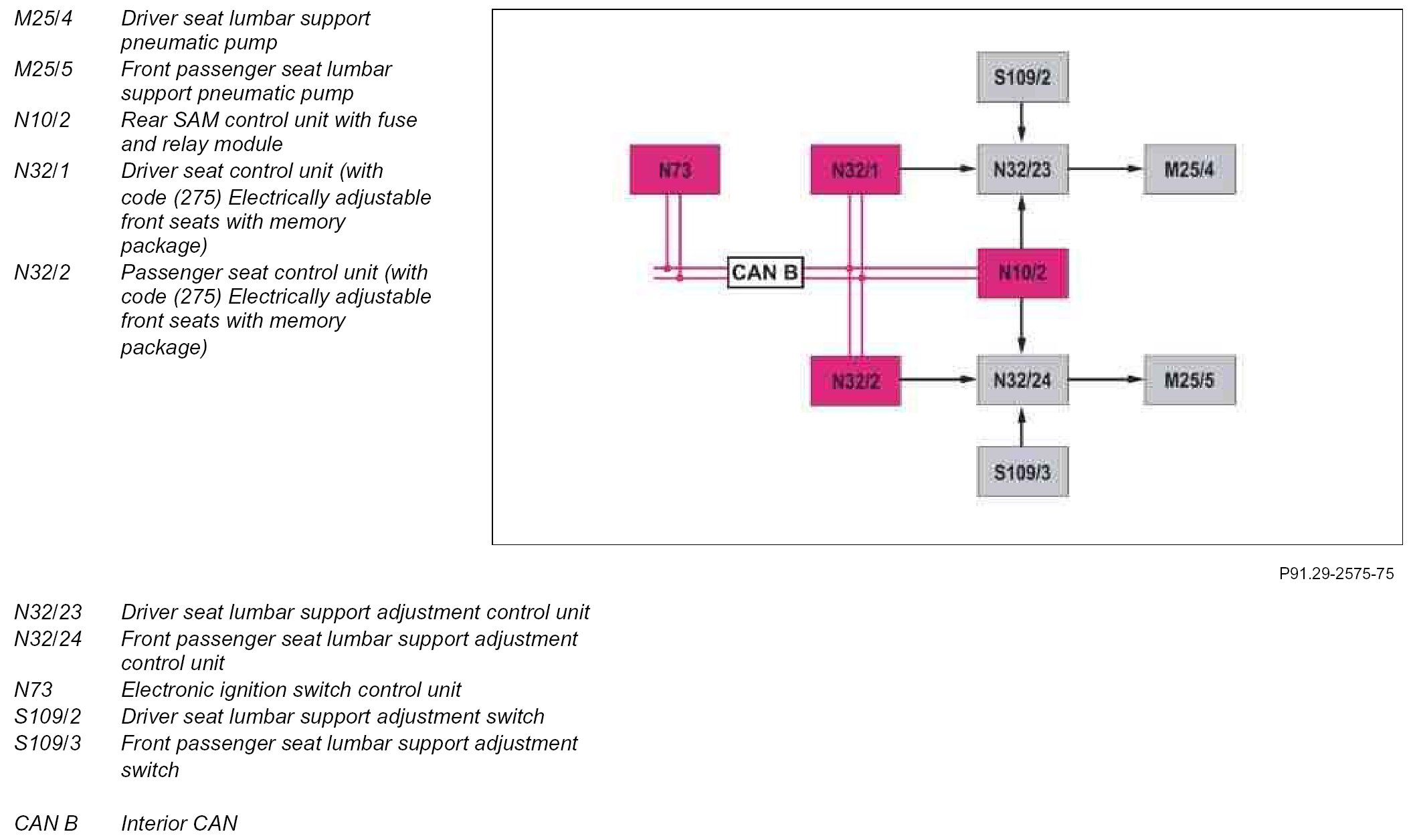

GF91.29-P-0011-02FL Lumbar Support Adjusting Facility, Block Diagram



GF91.29-P-0011-02FL Lumbar Support Adjusting Facility, Block Diagram
- except CODE (409) Left/right front multicontour seats
- except CODE (432) Left and right dynamic multicontour seat

Component Identification:
