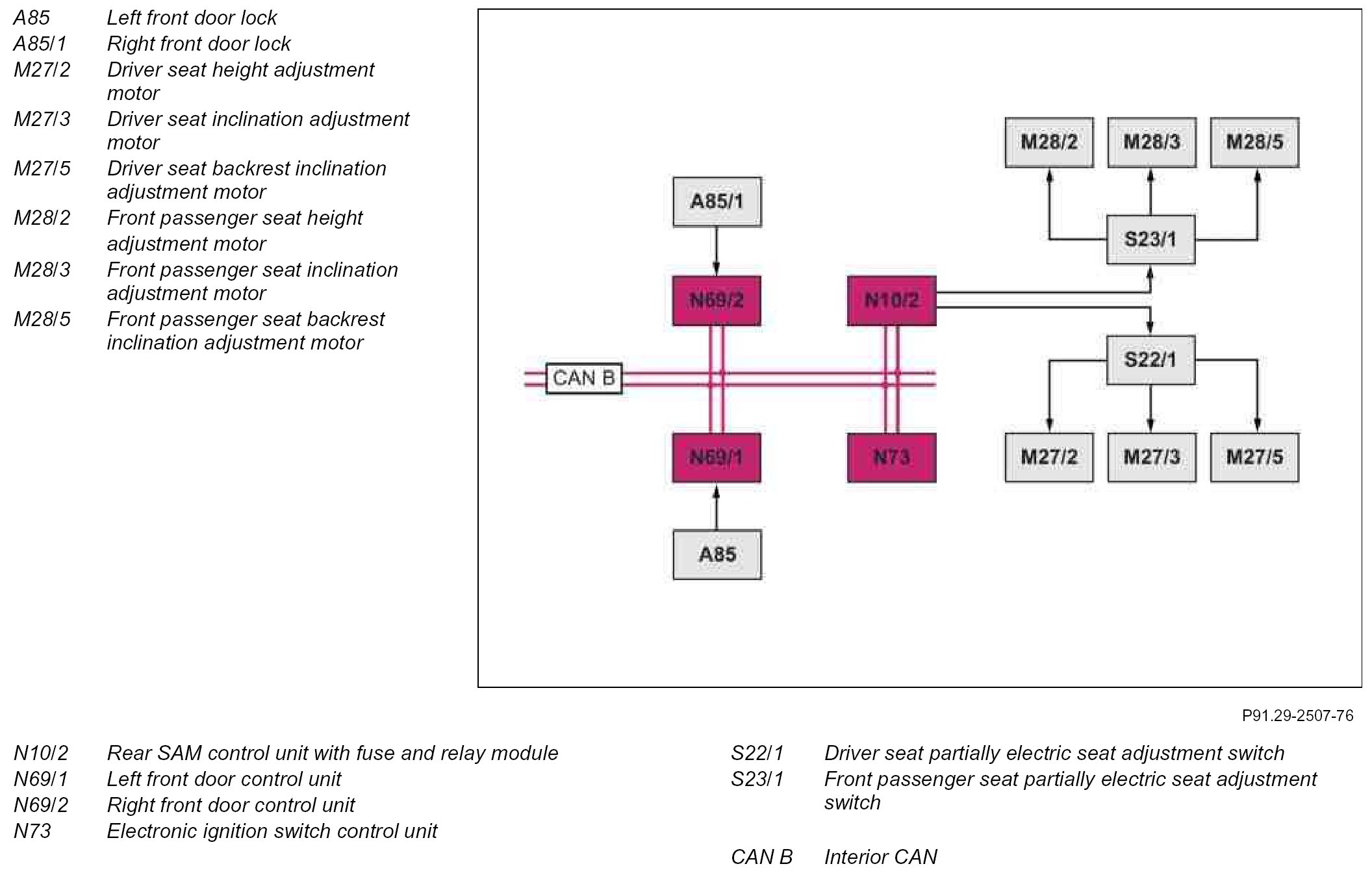

GF91.29-P-0009-03FLA Electric Seat Adjustment (ESA (ESV)), Block Diagram



GF91.29-P-0009-03FLA Electric Seat Adjustment (ESA [ESV]), Block Diagram
- except CODE (275) Electrically adjustable front seats with memory package


Component Identification:
