GF91.29-P-0009-01FLA Electric Seat Adjustment (ESA (ESV)), Location of Components



GF91.29-P-0009-01FLA Electric Seat Adjustment (ESA [ESV]), Location Of Components
- except CODE (275) Electrically adjustable front seats with memory package

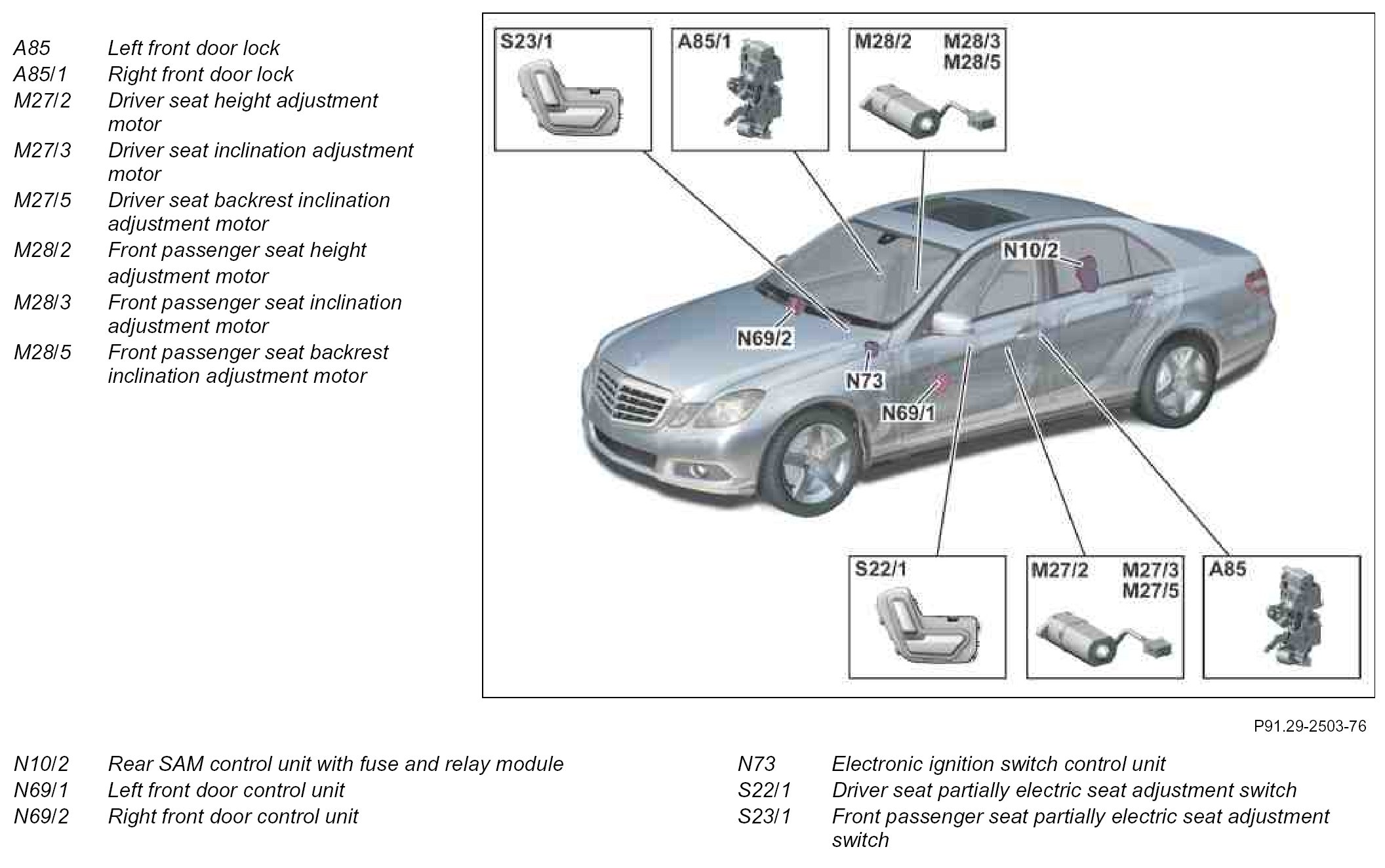

Component Identification:
