GF91.29-P-0009-01FL Electrical Seat Adjustment (ESE), Location of Components



GF91.29-P-0009-01FL Electrical Seat Adjustment (ESA), Location Of Components
- with CODE (275) Electrically adjustable front seats with memory package

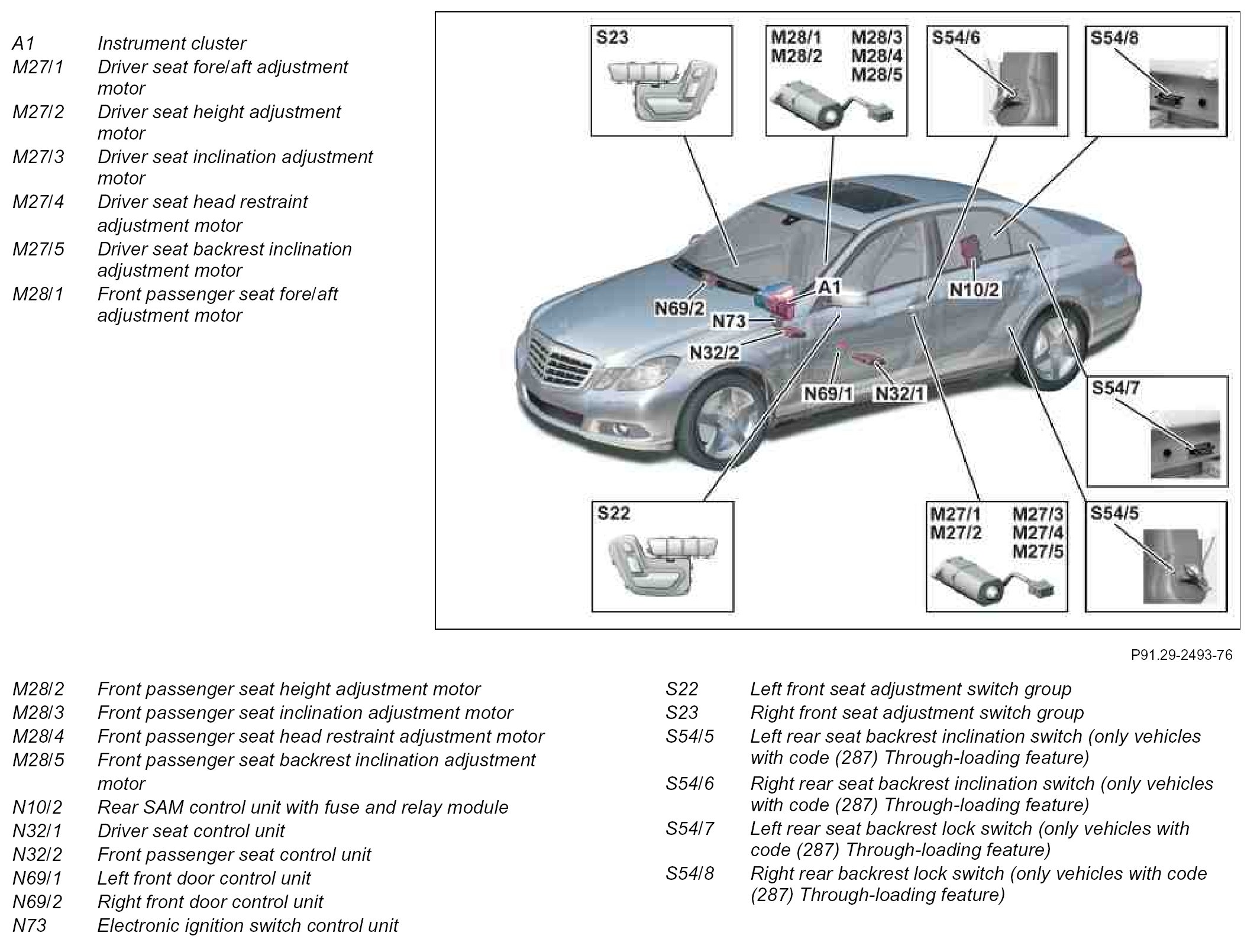

Component Identification:
