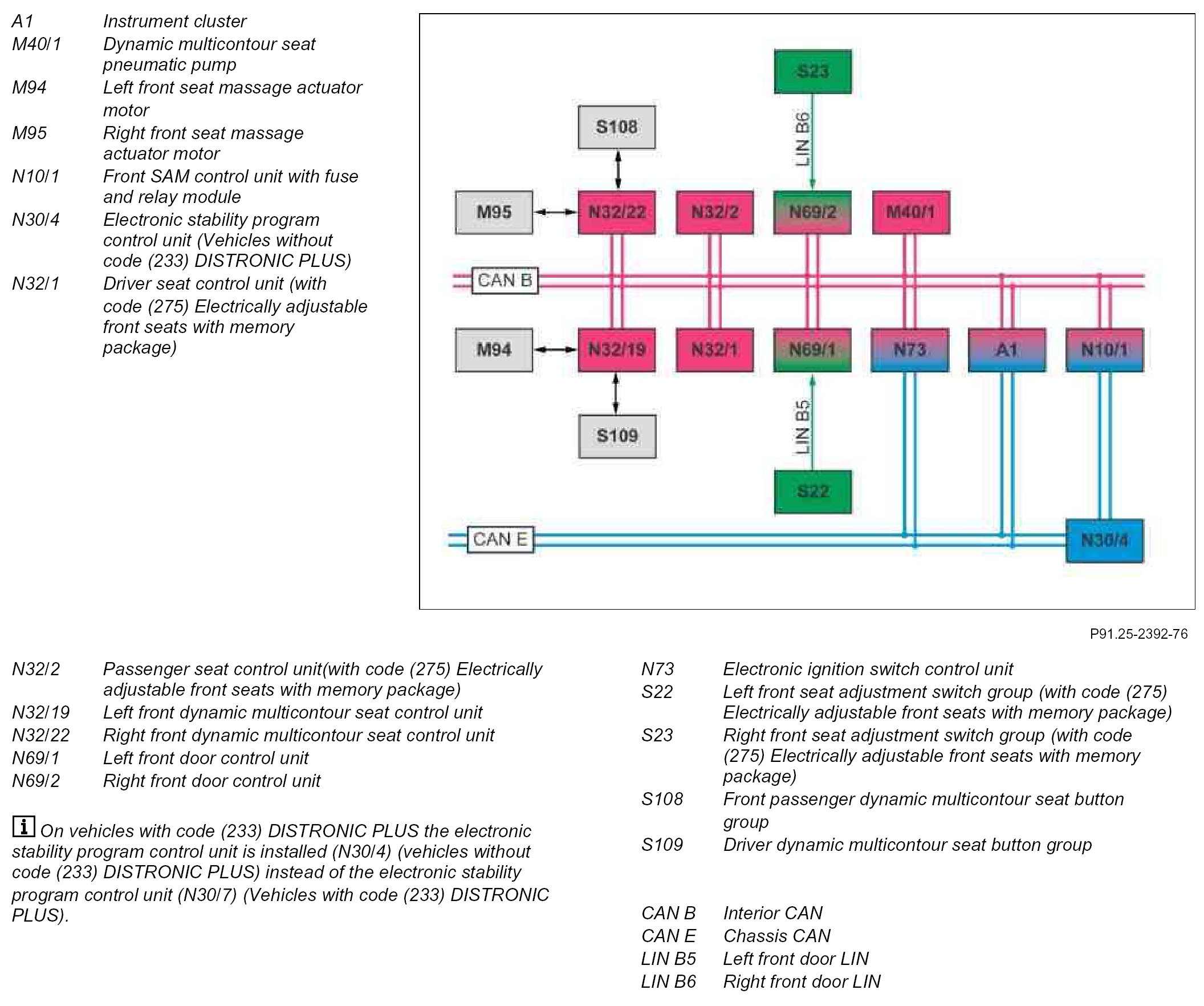

GF91.25-P-0003-02FL Dynamic Multicontour Seat Block Diagram




GF91.25-P-0003-02FL Dynamic Multicontour Seat Block Diagram
- with CODE (432) Left and right dynamic multicontour seat


Component Identification:
