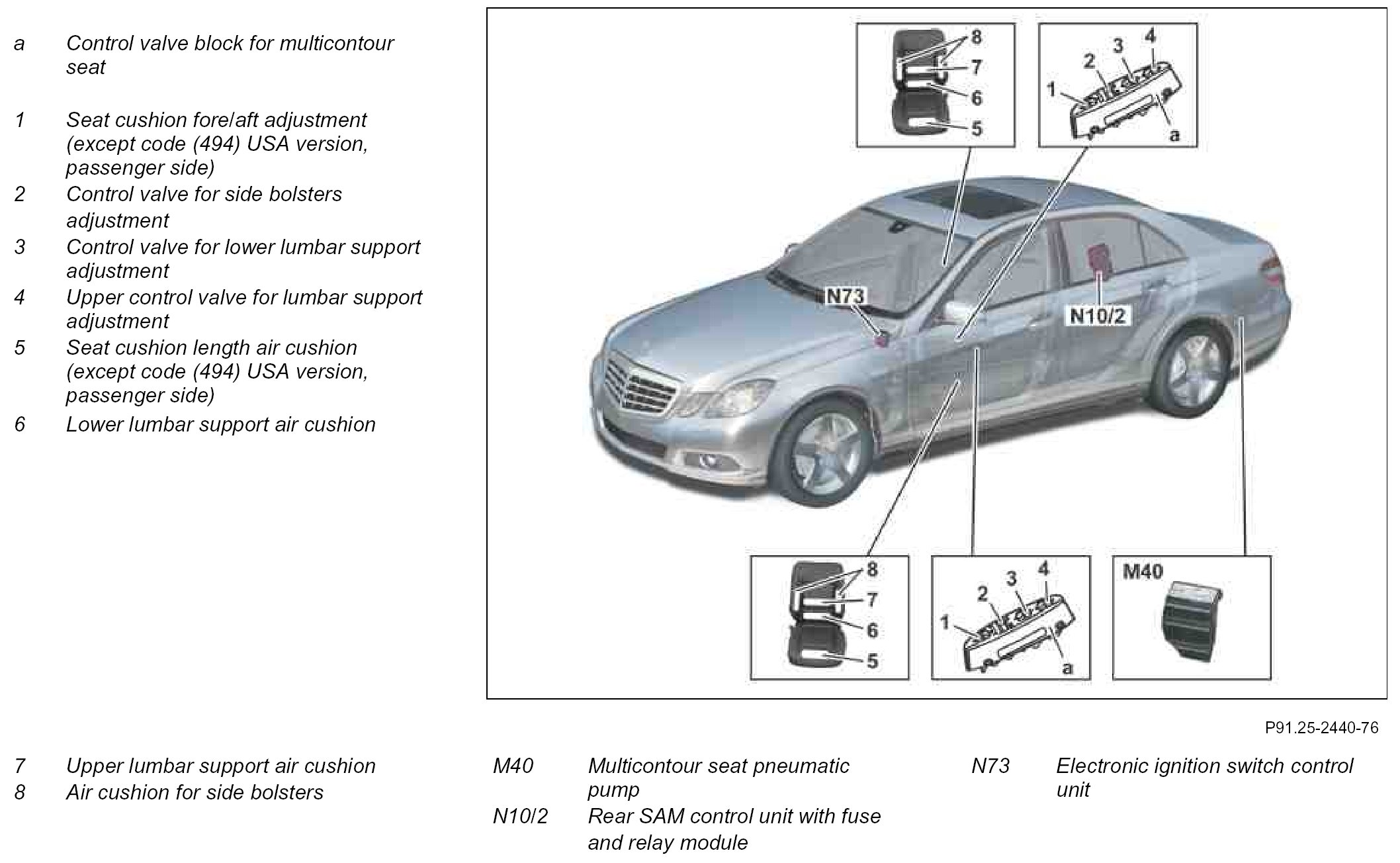

GF91.25-P-0001-04FL Multicontour Seat (MCS), Location of Components



GF91.25-P-0001-04FL Multicontour Seat (MCS), Location Of Components
- with CODE (409) Left/right front multicontour seat

Component Identification:
