AR77.21-P-0620EW Remove/Install Seal of Glass Roof on Rear Panoramic Roof

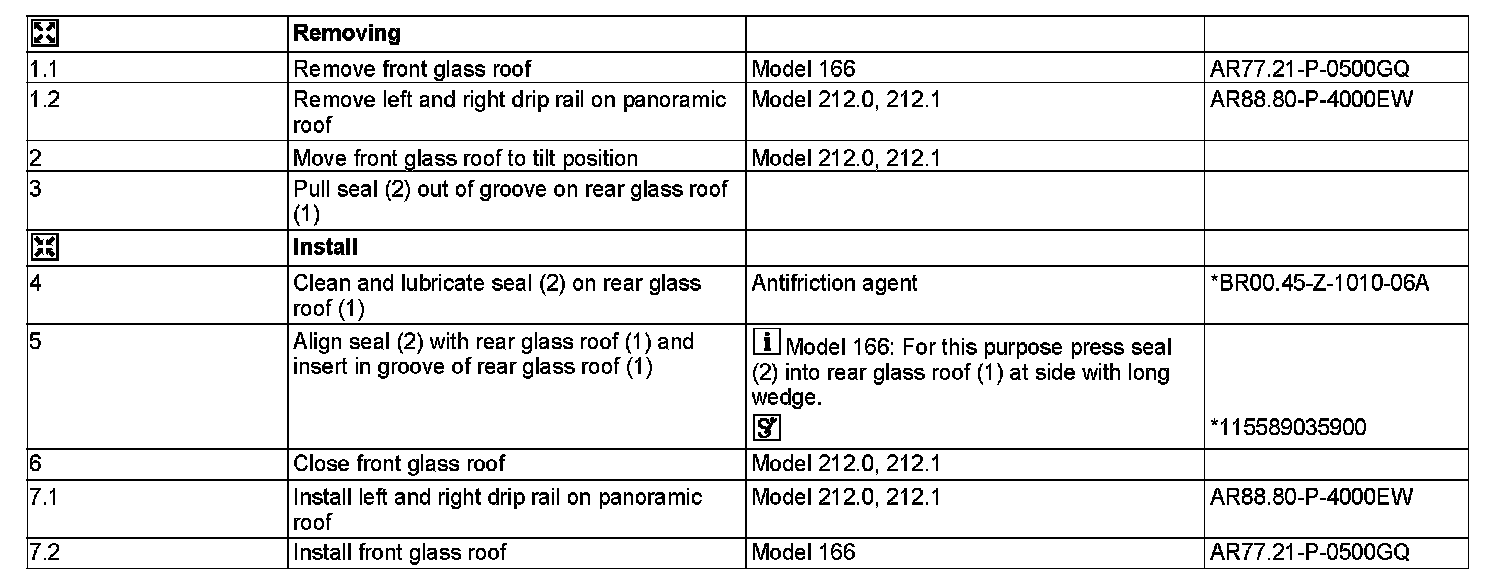

AR77.21-P-0620EW Remove/Install Seal of Glass Roof on Rear Panoramic Roof
MODEL 166, 212.0 /1
- with CODE (413) Panoramic glass roof with top sliding roof

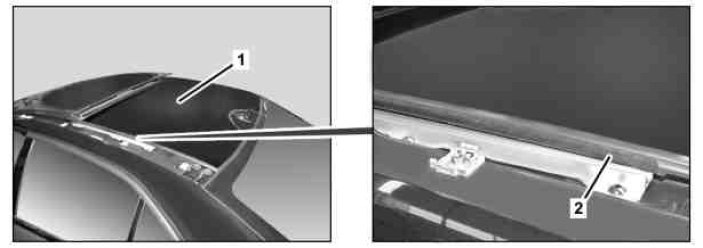

Shows model 212.1

1 Rear glass roof
2 Gasket








115 589 03 59 00
Long wedge
