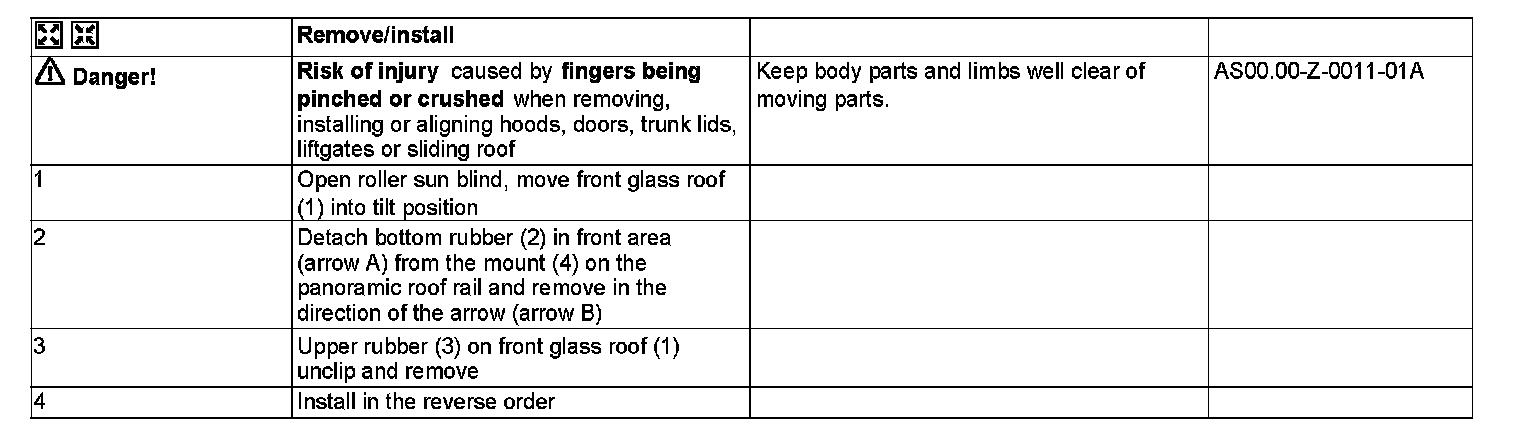

AR77.21-P-0530EW Remove/Install Folded Rubber Seal of Front Panoramic Glass Roof




AR77.21-P-0530EW Remove/Install Folded Rubber Seal of Front Panoramic Glass Roof
MODEL 166, 204.3, 207.3, 212.0 /1 /2
- with CODE (413) Panoramic glass roof with top sliding roof

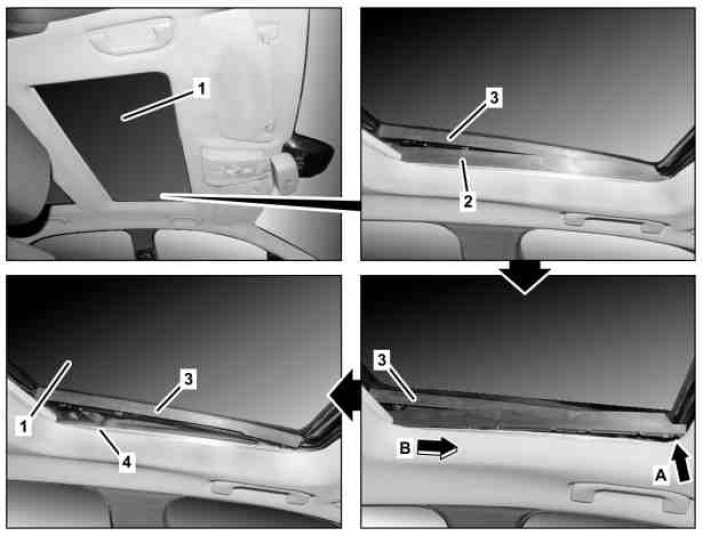

Shown on left side of vehicle on model 212.0

1 Front glass roof
2 Bottom rubber
3 Top rubber
4 Support
