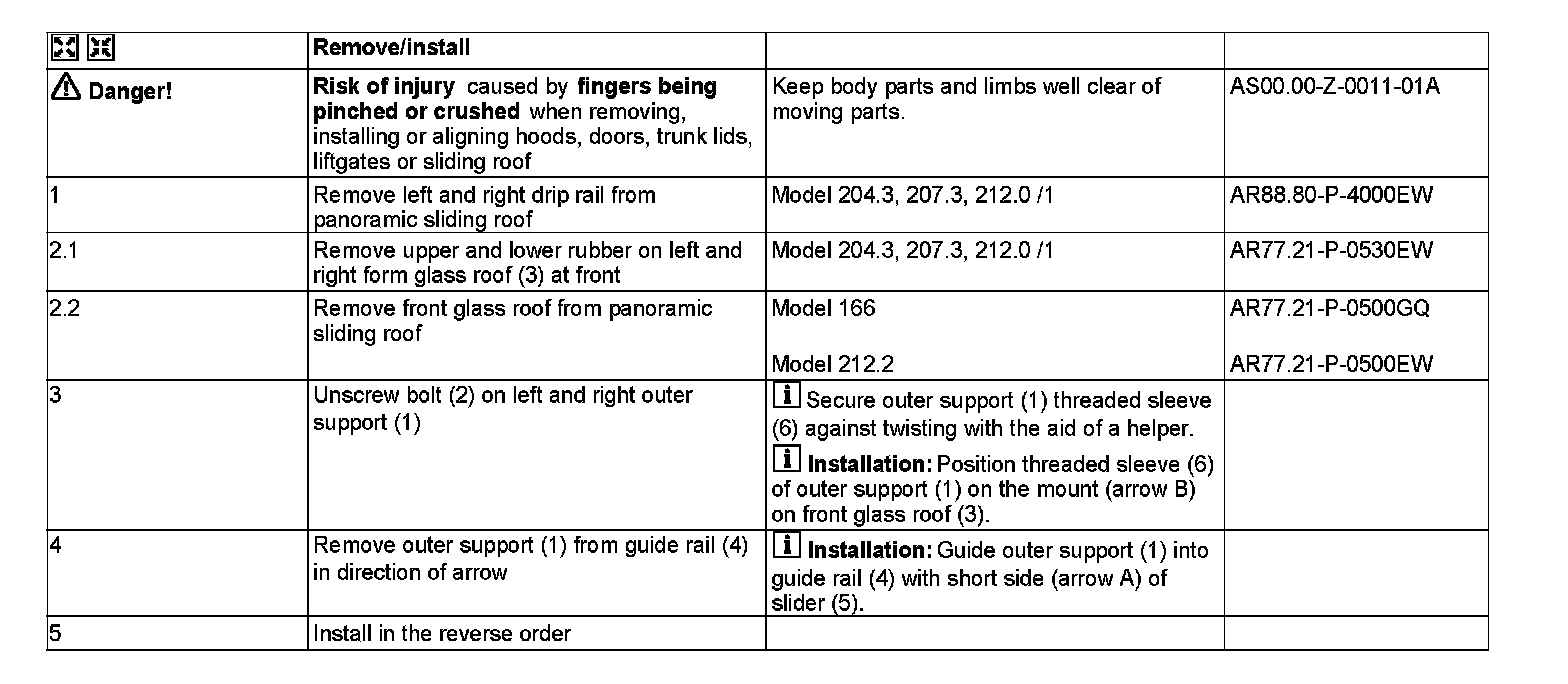

AR77.21-P-0520EW Remove/Install Outer Support for Panoramic Front Glass Roof

AR77.21-P-0520EW Remove/Install Outer Support For Panoramic Front Glass Roof
MODEL 166, 204.3, 207.3, 212.0 /1 /2
- with CODE (413) Panoramic glass roof with top sliding roof





Shown on model 207.3, on left side of vehicle

1 Outer support
2 Screw
3 Front glass roof
4 Guide rail
5 Slider
6 Threaded sleeve
