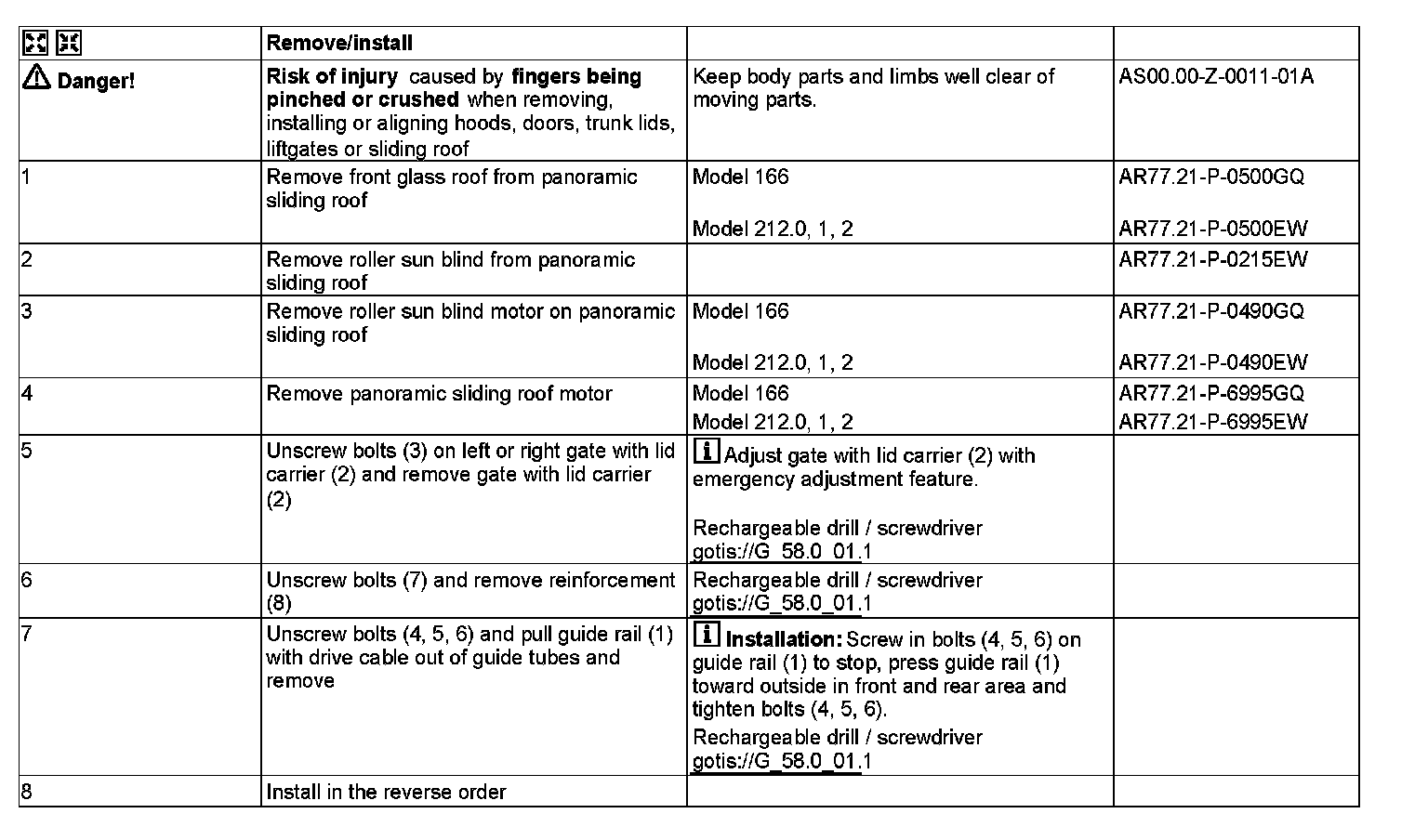

AR77.21-P-0430EW Remove/Install Panoramic Sunroof Drive Guide Rail

AR77.21-P-0430EW Remove/Install Panoramic Sunroof Drive Guide Rail
MODEL 166, 212.0 /1 /2
- with CODE (413) Panoramic glass roof with top sliding roof

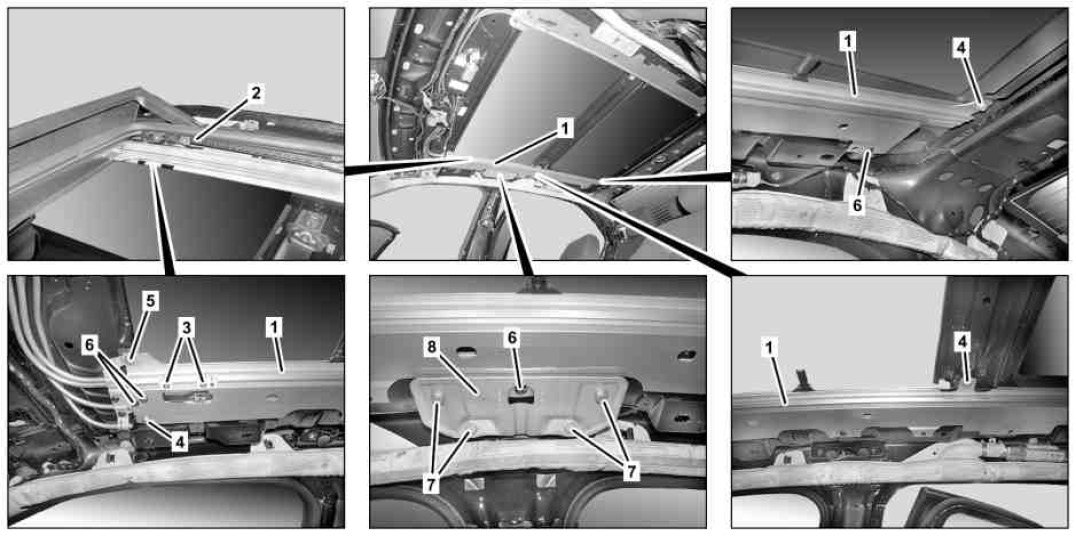

Shown on model 212.0 on right side of vehicle

1 Guide rail
2 Guide rail with lid carrier
3 Bolts
4 Screw
5 Screw
6 Bolts
7 Bolts
8 Reinforcement
