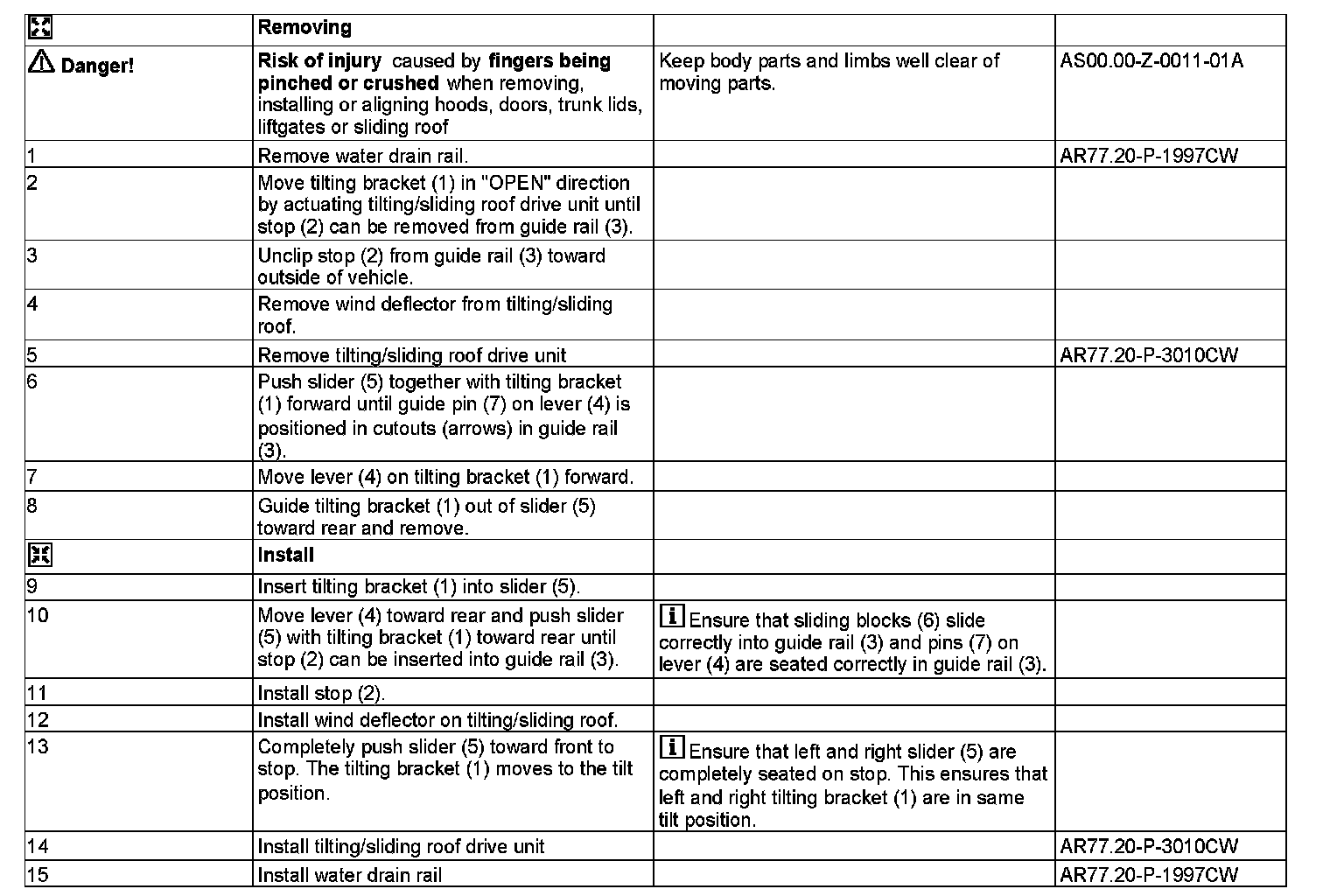

AR77.20-P-1700CW Remove/Install Pop-Up Bracket on Tilting/Sliding Roof

AR77.20-P-1700CW Remove/Install Pop-up Bracket on Tilting/Sliding Roof
MODEL 204.0 /2
- with CODE (414) Power glass tilting/sliding roof
MODEL 212
- with CODE (414) Power glass tilting/sliding roof up to model year 2011

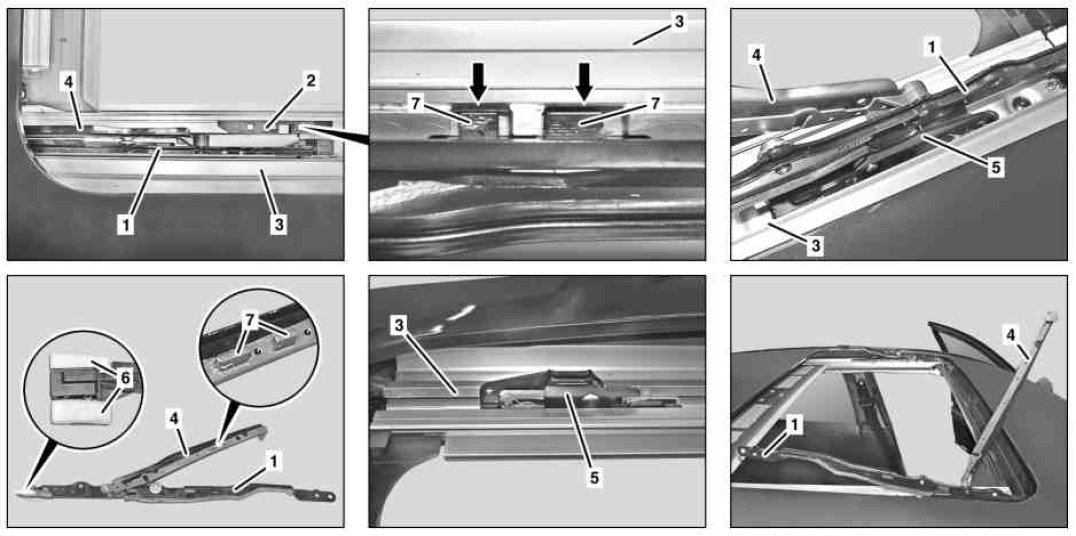

Shown on right pop-up bracket on model 204.0

1 Tilting bracket
2 End stop
3 Guide rail
4 Lever
5 Slider
6 Slide shoe
7 Guide pin
