AR77.21-P-7010-04SX Apply Adhesive Material To Front Glass Cover

AR77.21-P-7010-04SX Apply Adhesive Material To Front Glass Cover
- with CODE (413) Panoramic glass roof with top sliding roof

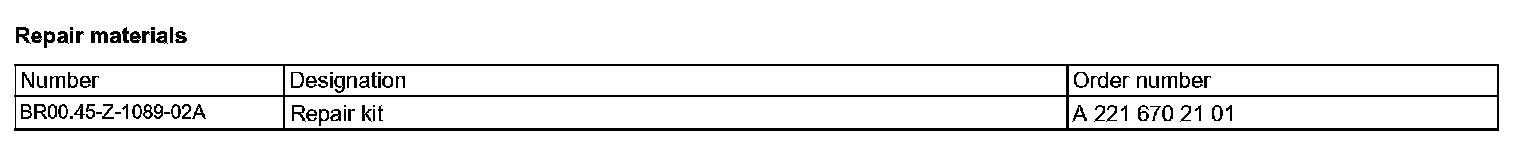

Repair Materials:

Shown on model 221

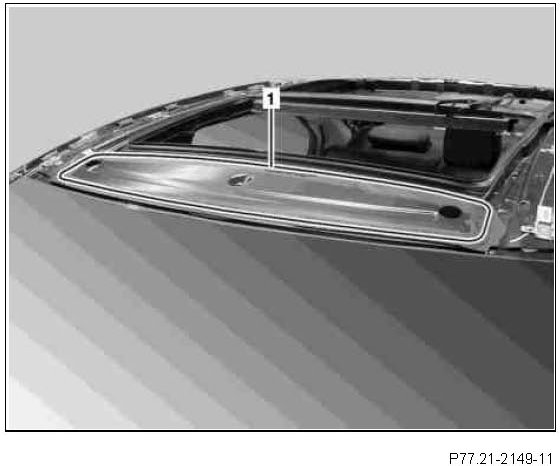

Wear cotton gloves. Ensure that no fingerprints are present in the bonding surface (1) area. The bonding surface (1) must be free of dust, oil, grease, wax, contamination residues and other adhesive constituents to prevent adhesion problems when glazing.

1. Cutout triangular opening on application nozzle so that adhesive can be applied with a height of approx. 14 mm and a width of approx. 8 mm.
2. Guide application nozzle along bonding surface (1) while uniformly pressing out adhesive.

Immediately remove contamination caused by the adhesive. Completely remove excess adhesive from cartridges immediately after applying adhesive and dispose of it as per local regulations.
"Pressofix"cartridge gun.
