AR77.21-P-0800-05SX Prepare Panoramic Roof Frame Body Flange For Installation

AR77.21-P-0800-05SX Prepare Panoramic Roof Frame Body Flange For Installation
- with CODE (413) Panoramic glass roof with top sliding roof

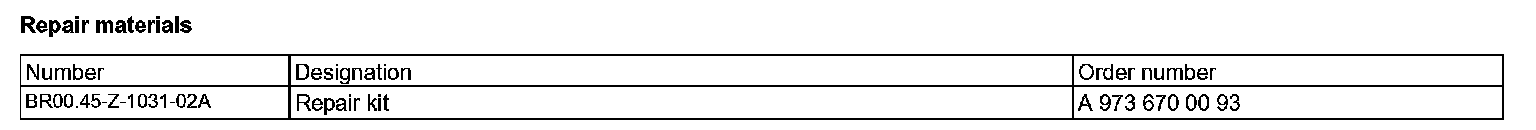

Repair Materials:

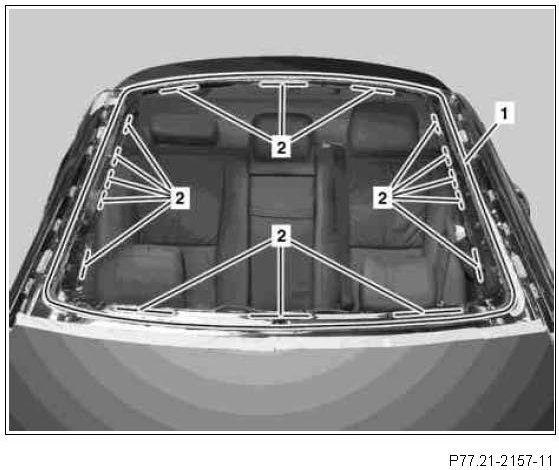

Shown on model 221

Wear cotton gloves. Ensure that no fingerprints (1, 2) are present in the area of the bonding surface. To prevent adhesion problems when installing the window, keep the bonding surface free of dust, oil, grease, wax, dirt residues and other adhesive substances.

1. Cut down present glue beads (1, 2) on body flange to a height of approx. 1 to 2 mm.
Wet/dry vacuum cleaner.

Do not leave more than 2 mm of present adhesive bead (1, 2). Remove glue residues from glue beads (1, 2) not completely cut off.

2. Repair paint damage on body flange.
3. Apply primer in gluing area if glue residues are not present.

Observe drying time of at least 10 minutes.
