AR77.21-P-0800-02SX Prepare Panoramic Roof Frame For Installation

AR77.21-P-0800-02SX Prepare Panoramic Roof Frame For Installation
- with CODE (413) Panoramic glass roof with top sliding roof

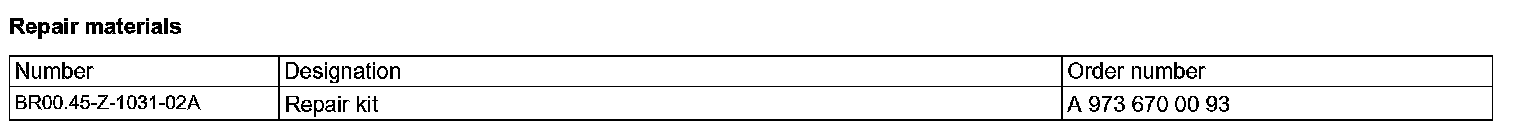

Repair Materials:

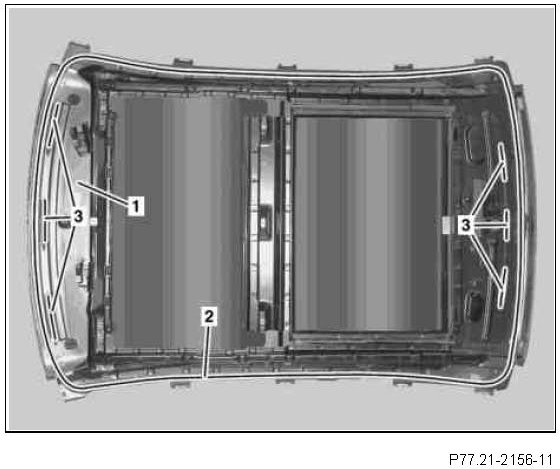

Shown on model 221

Wear cotton gloves. Ensure that no fingerprints (2, 3) are present in the area of the bonding surfaces. To prevent adhesion problems when gluing in, keep bonding surfaces (2, 3) free of dust, oil, grease, wax, dirt residues and other anti-adhesive components.

1. Check panoramic roof frame (1) with all detachable body components for damage.
2. Install cup suction tool on outer side of panoramic roof frame (1) and lay panoramic roof frame (1) down to suitable subsurface with inside pointing upward.
Cup suction tool.

3. Apply cleaner with part of paper towel to bonding surfaces (2, 3) on panoramic roof frame (1) and wipe with remaining paper towel.

Apply cleaner only to bonding surfaces (2, 3). Allow cleaner to dry completely.
