AR77.21-P-0500EW Remove/Install Front Panoramic Glass Roof



AR77.21-P-0500EW Remove/Install Front Panoramic Glass Roof
- with CODE (413) Panoramic glass roof with top sliding roof

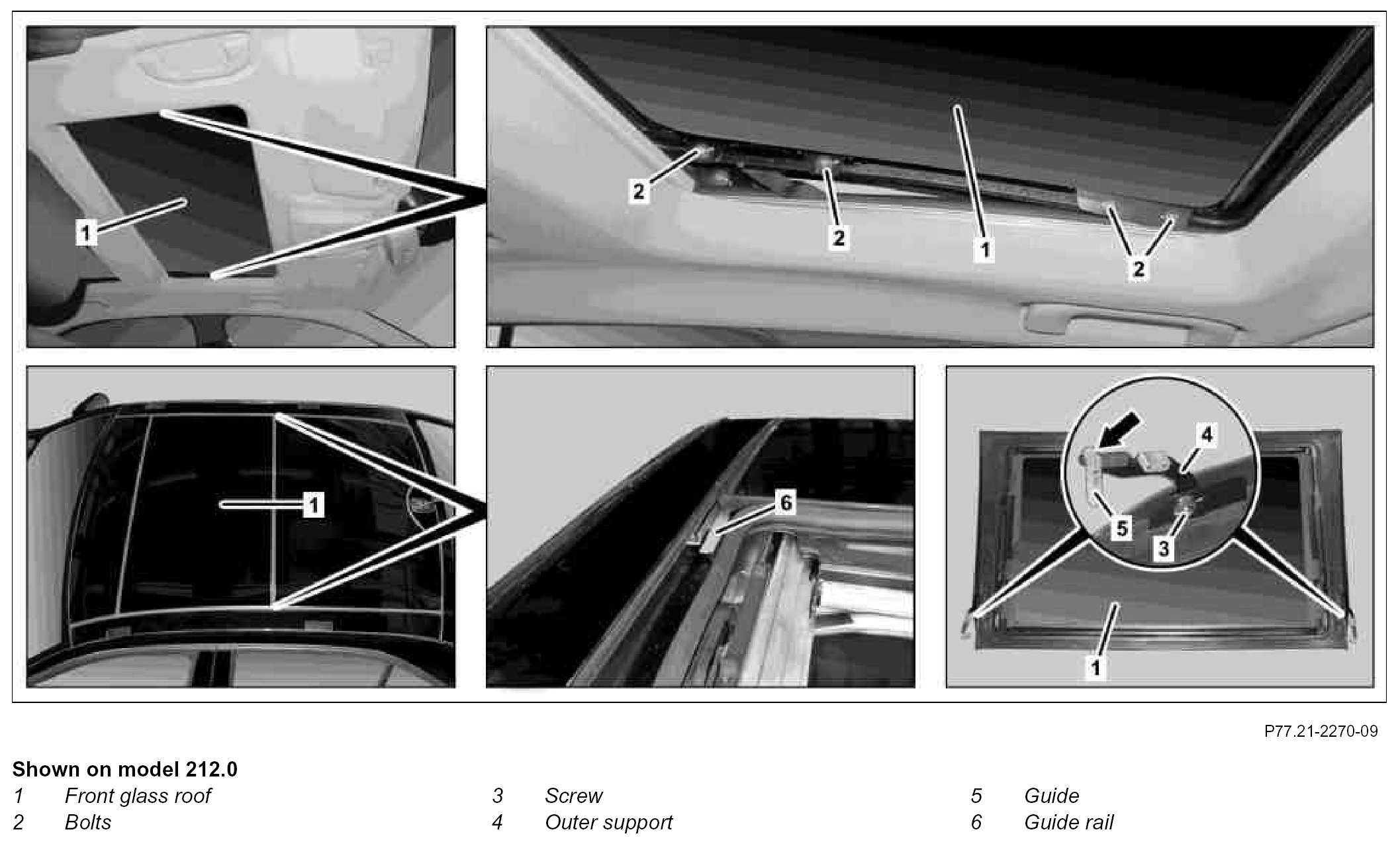

Component Identification:

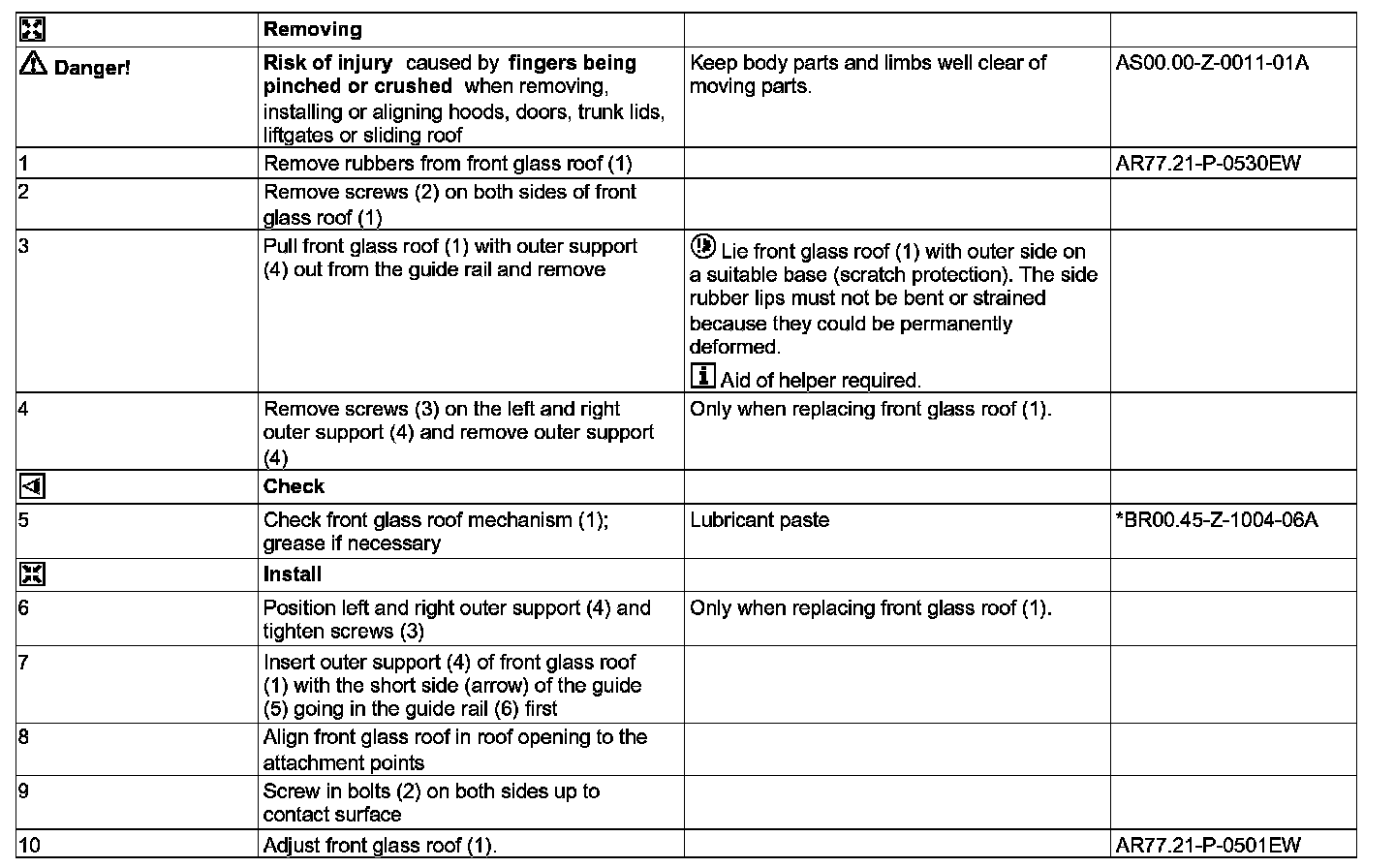

Steps 1 - 10:

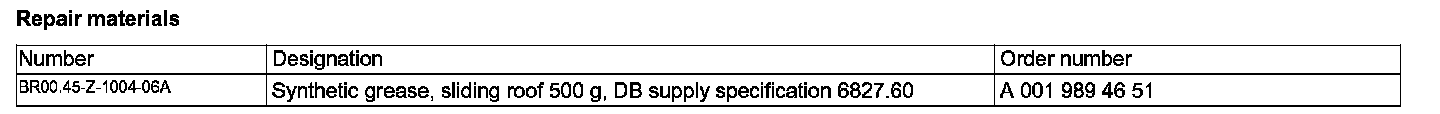

Repair Materials:
