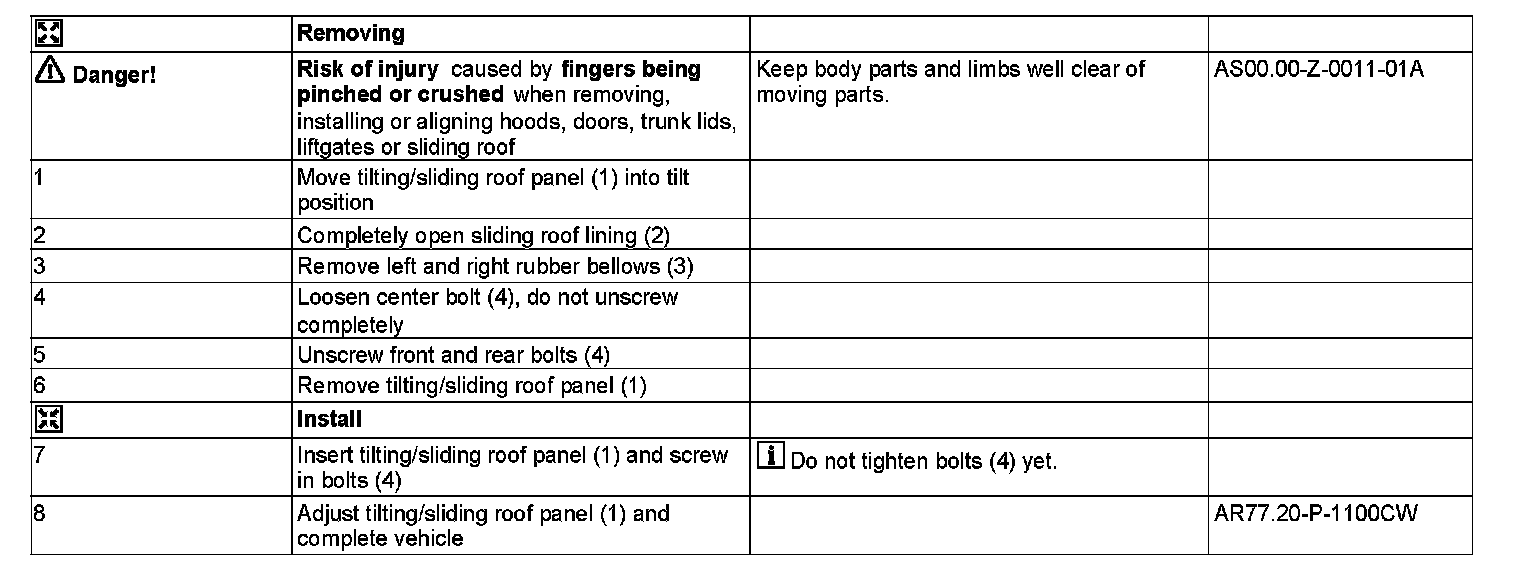

AR77.20-P-2852CW Remove/Install Glass Roof on Tilting/Sliding Roof

AR77.20-P-2852CW Remove/Install Glass Roof on Tilting/Sliding Roof
MODEL 204.0 /2, 212, 218
- with CODE (414) Power glass tilting/sliding roof

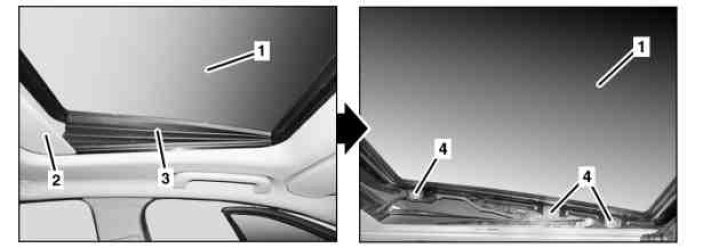

Shown on model 204.0

1 Tilting/sliding roof panel
2 Sliding sunroof lining
3 Rubber bellows
4 Bolts
