AR77.21-P-0501EW Adjust Front Panoramic Glass Roof



AR77.21-P-0501EW Adjust Front Panoramic Glass Roof
- with CODE (413) Panoramic glass roof with top sliding roof

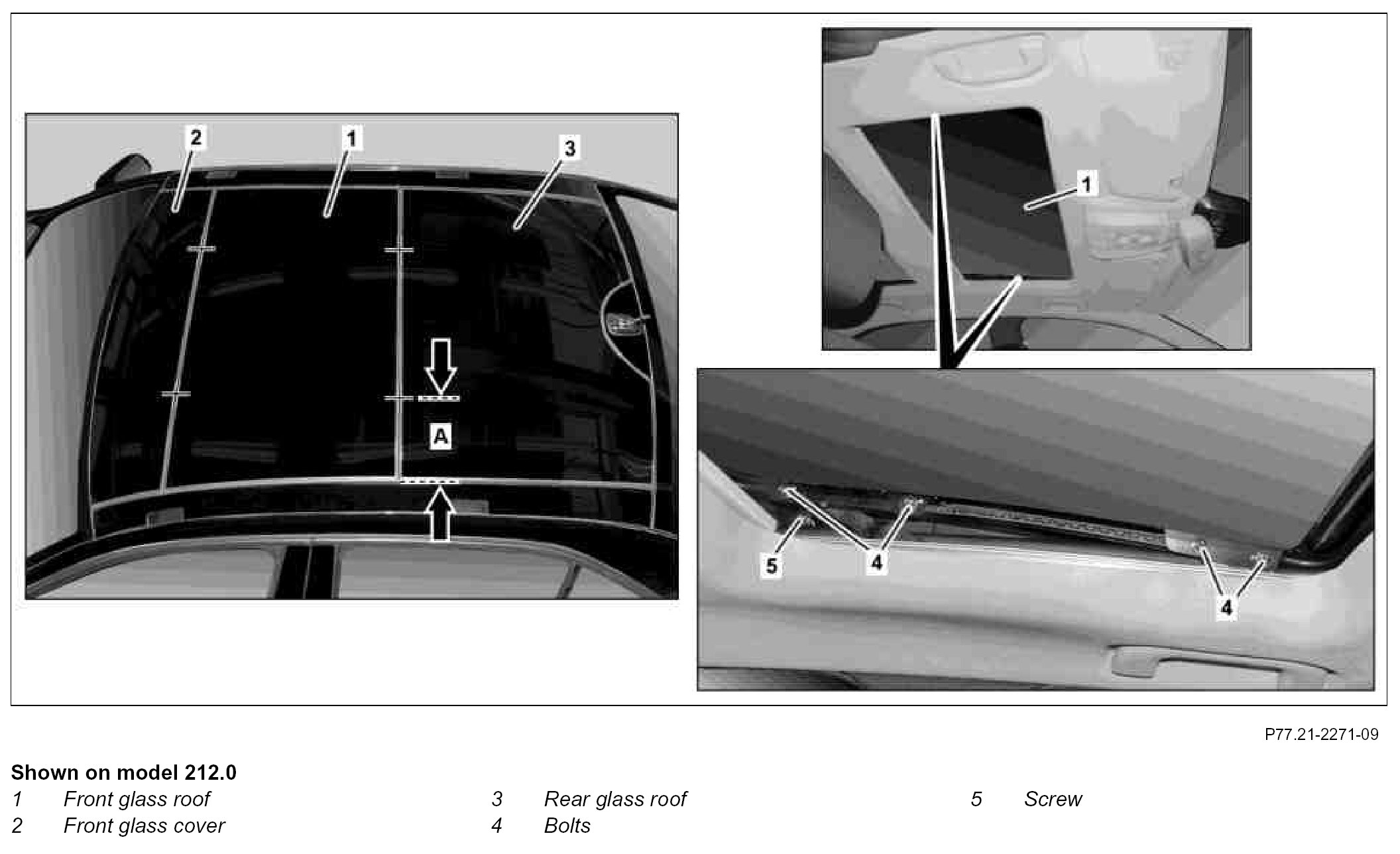

Component Identification:

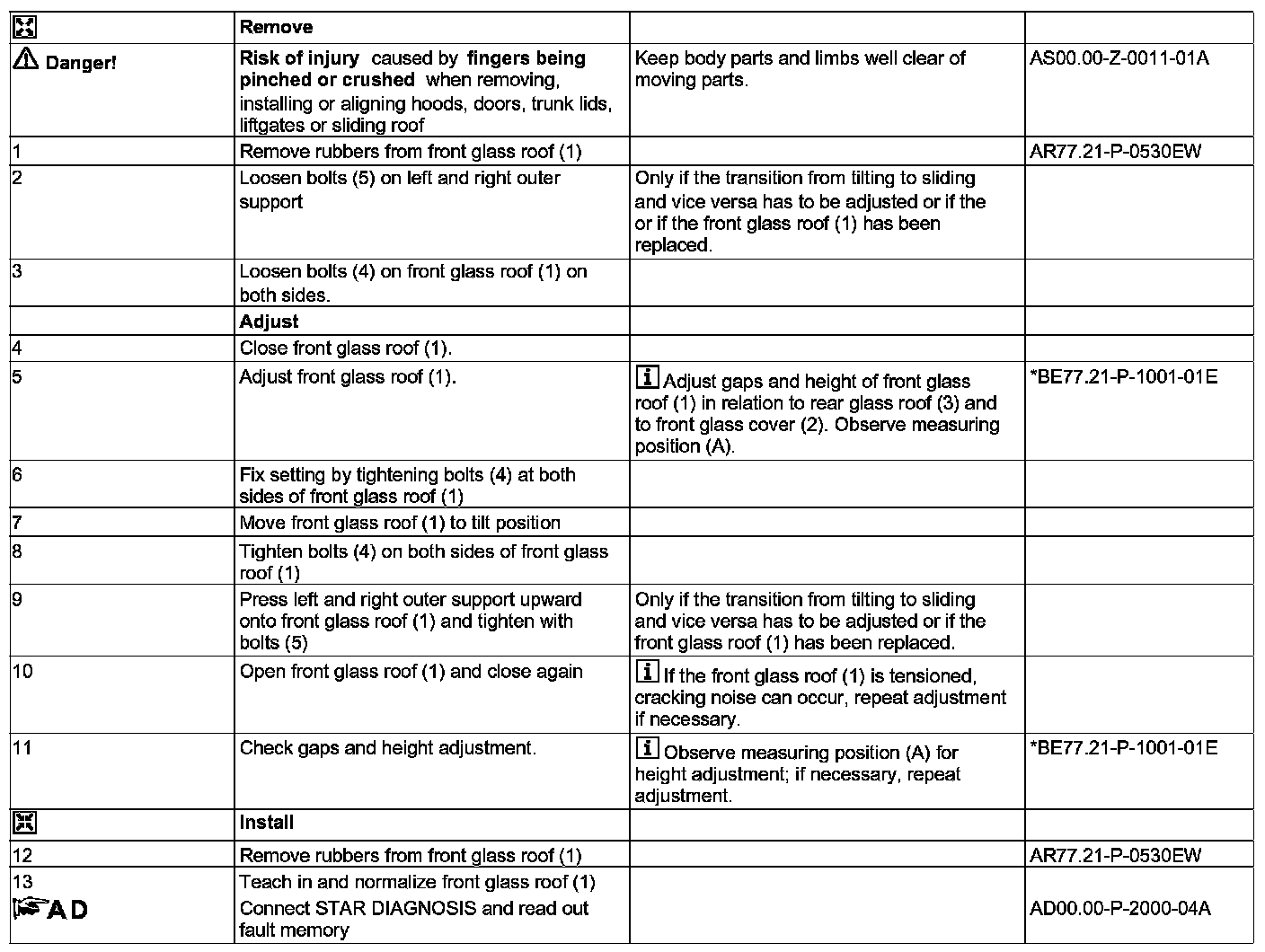

Steps 1 - 13:

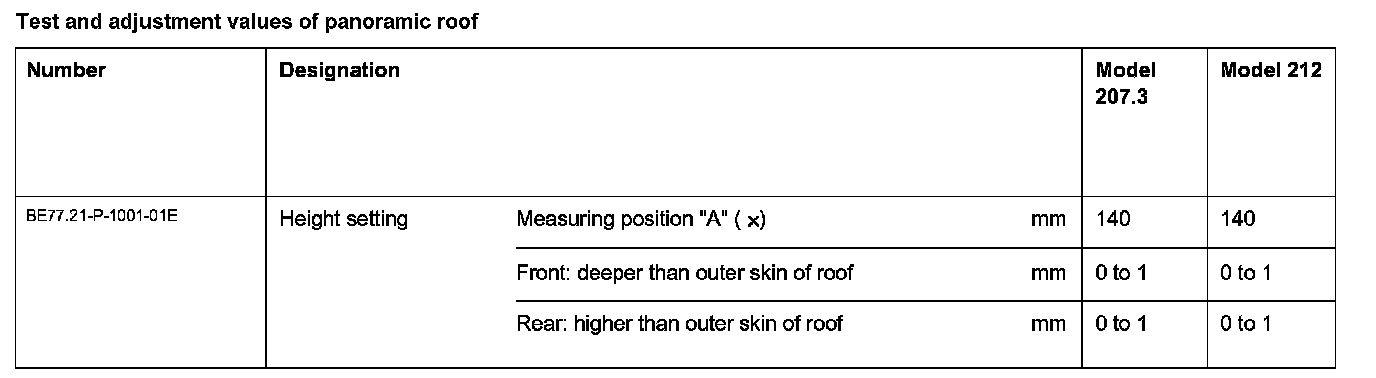

Test And Adjustment Values Of Panoramic Roof:
