AR77.20-P-1100CW Adjust Tilting/Sliding Roof Panel



AR77.20-P-1100CW Adjust Tilting/Sliding Roof Panel
- with CODE (414) Power glass tilting/sliding roof

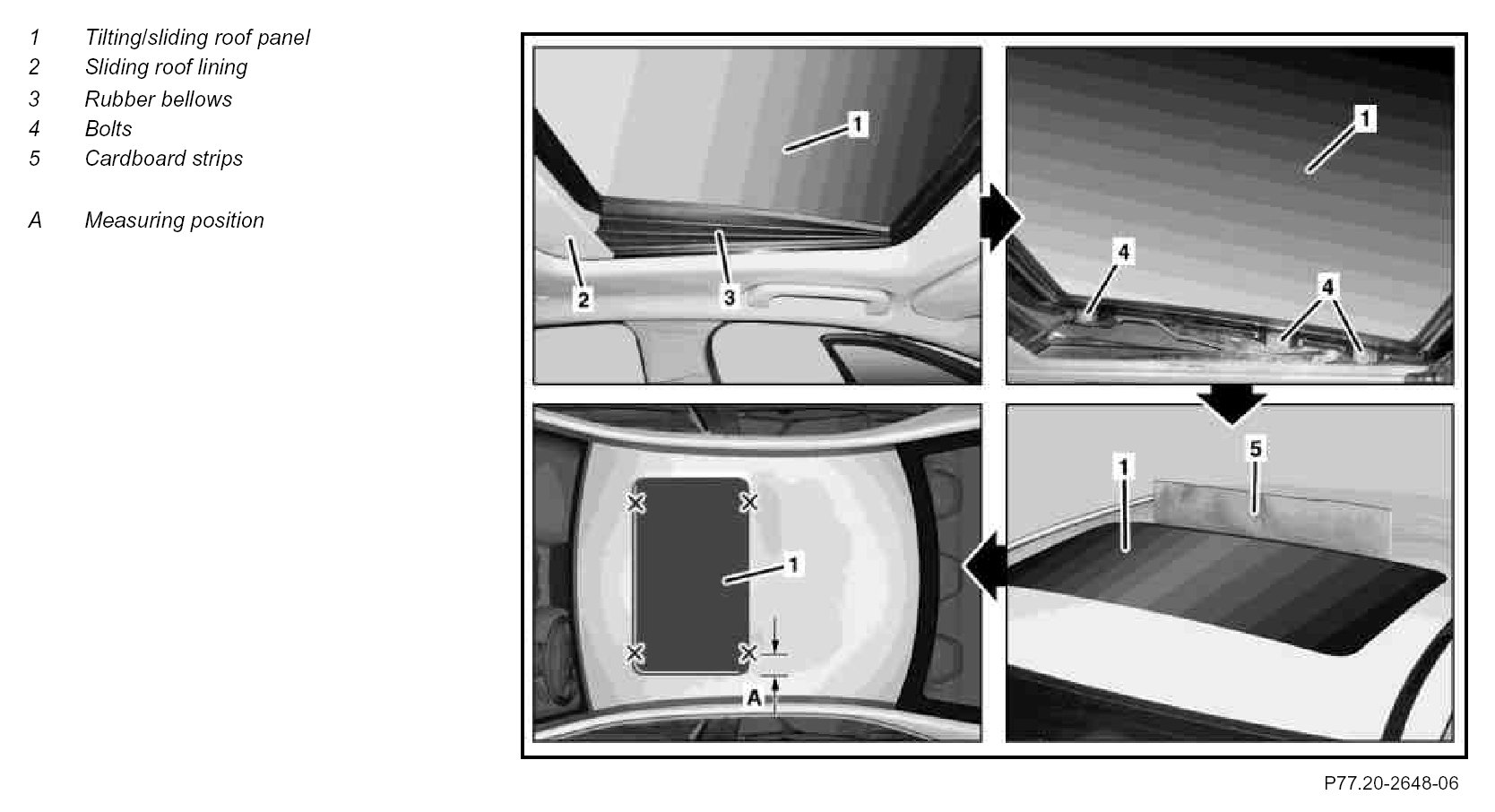

Component Identification:

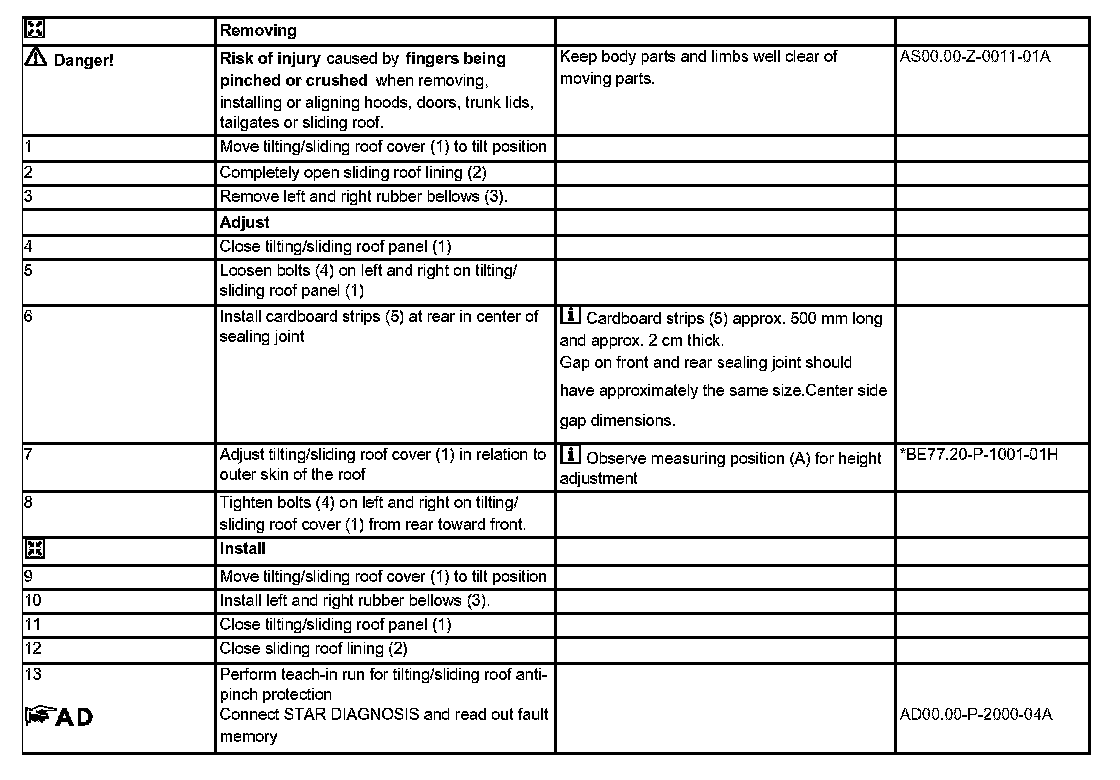

Steps 1 - 13:




Test And Adjustment Values For Tilting/sliding Roof:
