AR77.21-P-0490EW Remove/Install Motor For Roller Sun Blind on Panoramic Sliding Roof



AR77.21-P-0490EW Remove/Install Motor For Roller Sun Blind On Panoramic Sliding Roof
- with CODE (413) Panoramic glass roof with top sliding roof

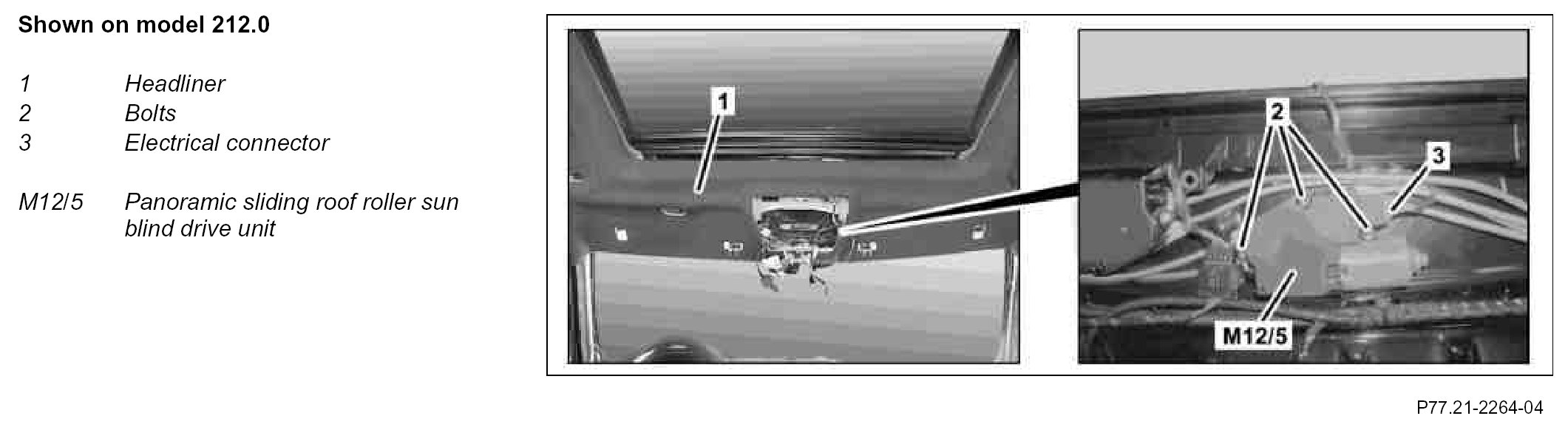

Component Identification:

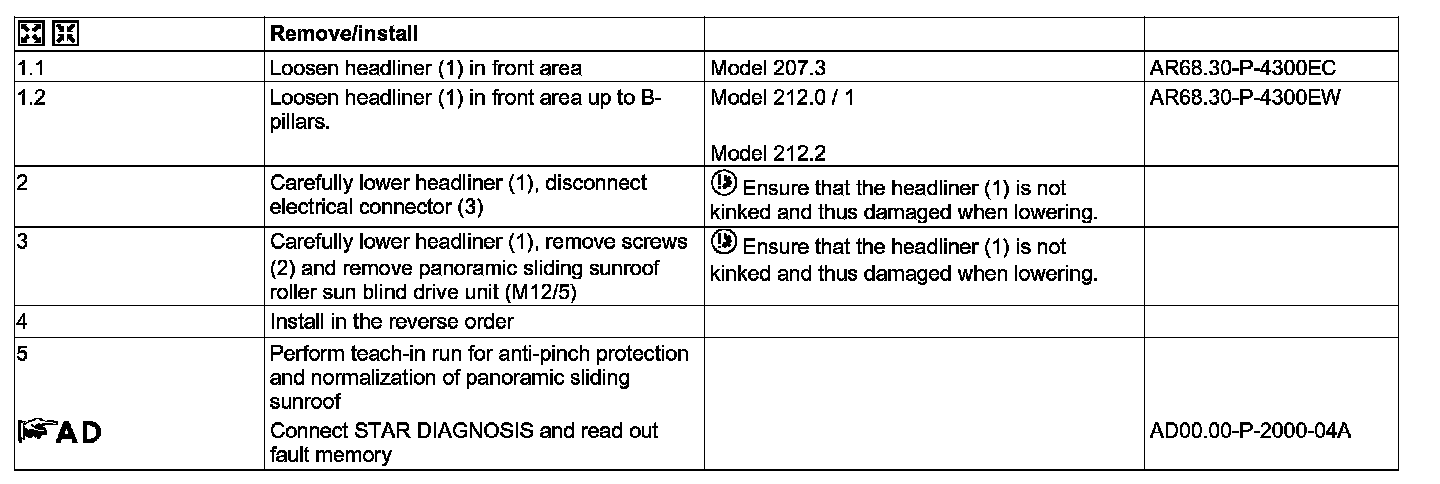

Steps 1 - 5:
