AR77.20-P-3010CW Remove/Install Tilting/Sliding Roof Motor



AR77.20-P-3010CW Remove/Install Tilting/Sliding Roof Motor
- with CODE (414) Power glass tilting/sliding roof

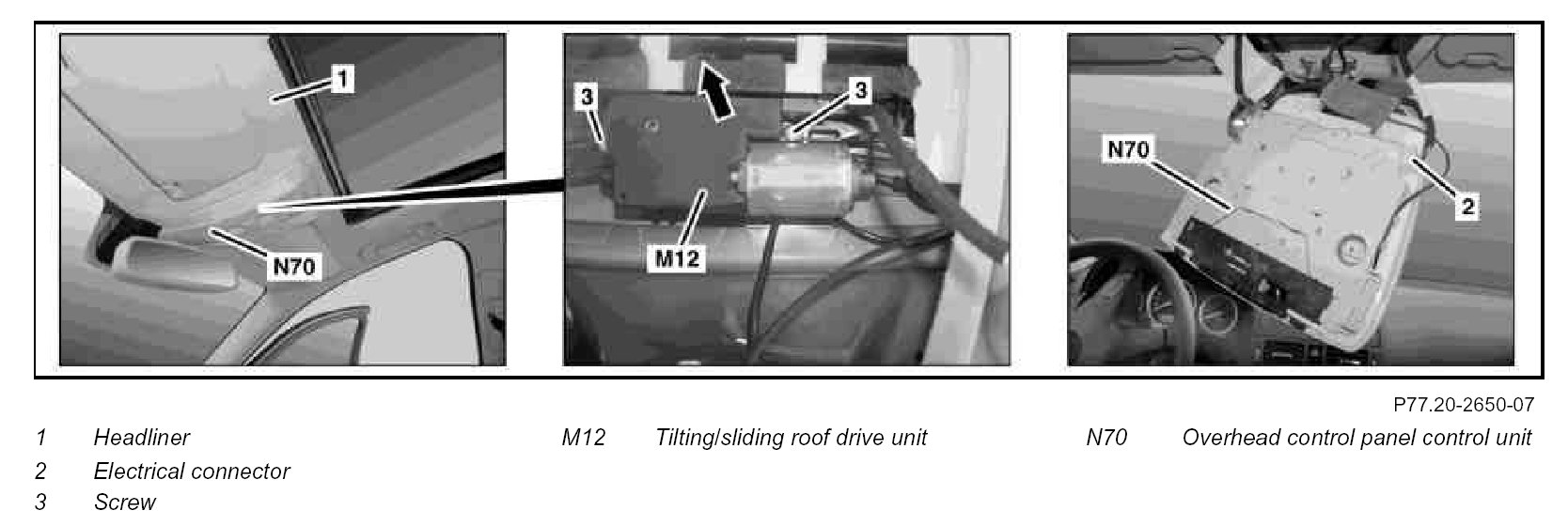

Component Identification:

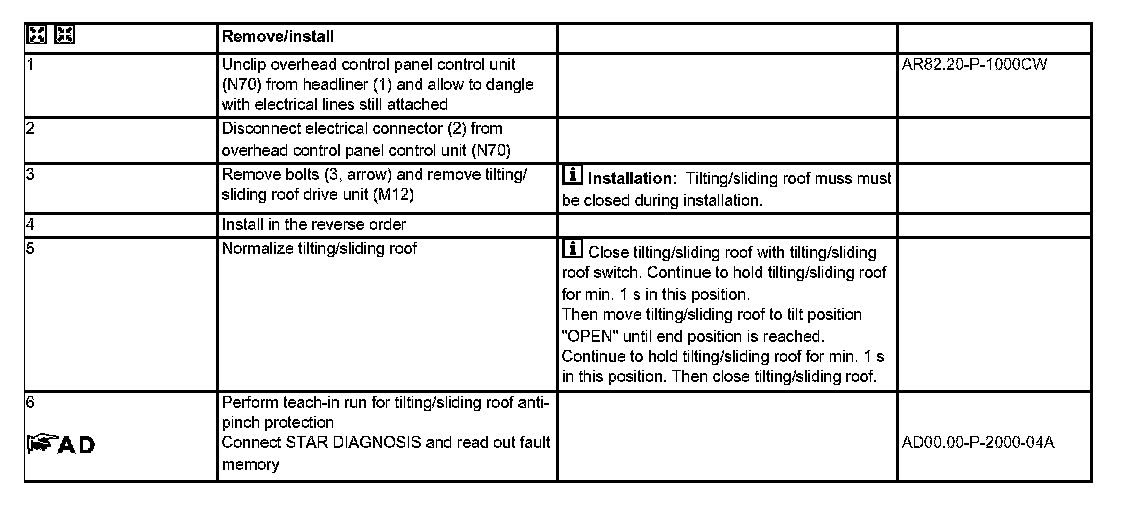

Steps 1 - 6:
