Sunroof / Moonroof Lift Mechanism: Service and Repair



AR77.20-P-1700CW Remove/Install Pop-up Bracket On Tilting/Sliding Roof
- with CODE (414) Power glass tilting/sliding roof

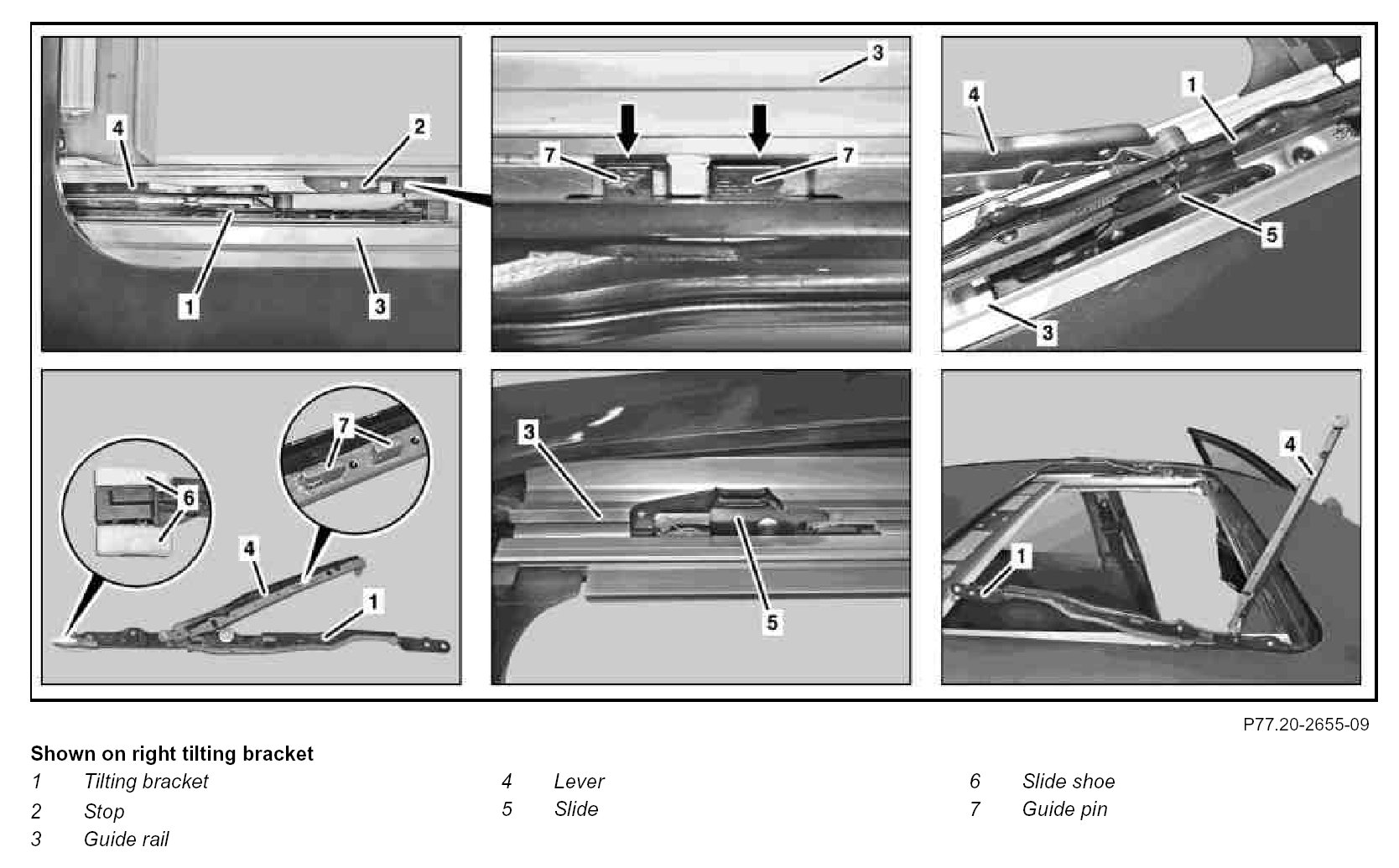

Component Identification:

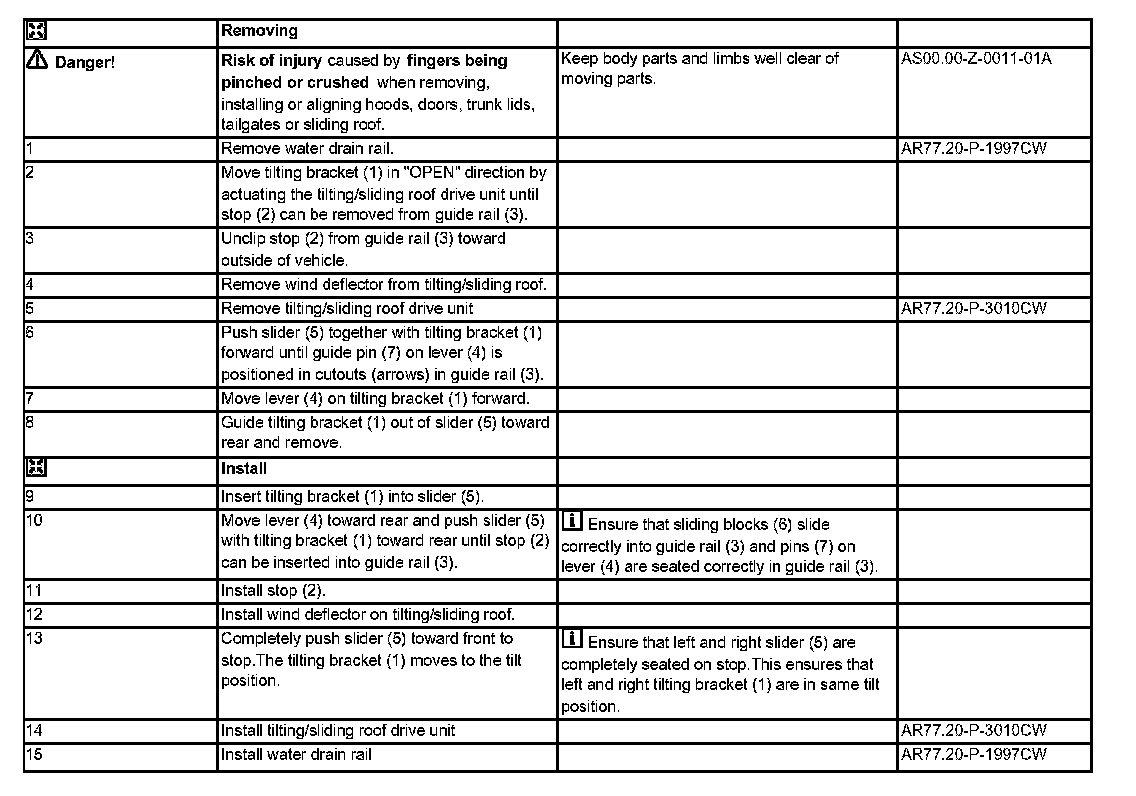

Steps 1 - 15:
