AR77.21-P-0751EW Remove, Install Rear Panoramic Roof Cover



AR77.21-P-0751EW Remove, Install Rear Panoramic Roof Cover
- with CODE (413) Panoramic glass roof with top sliding roof

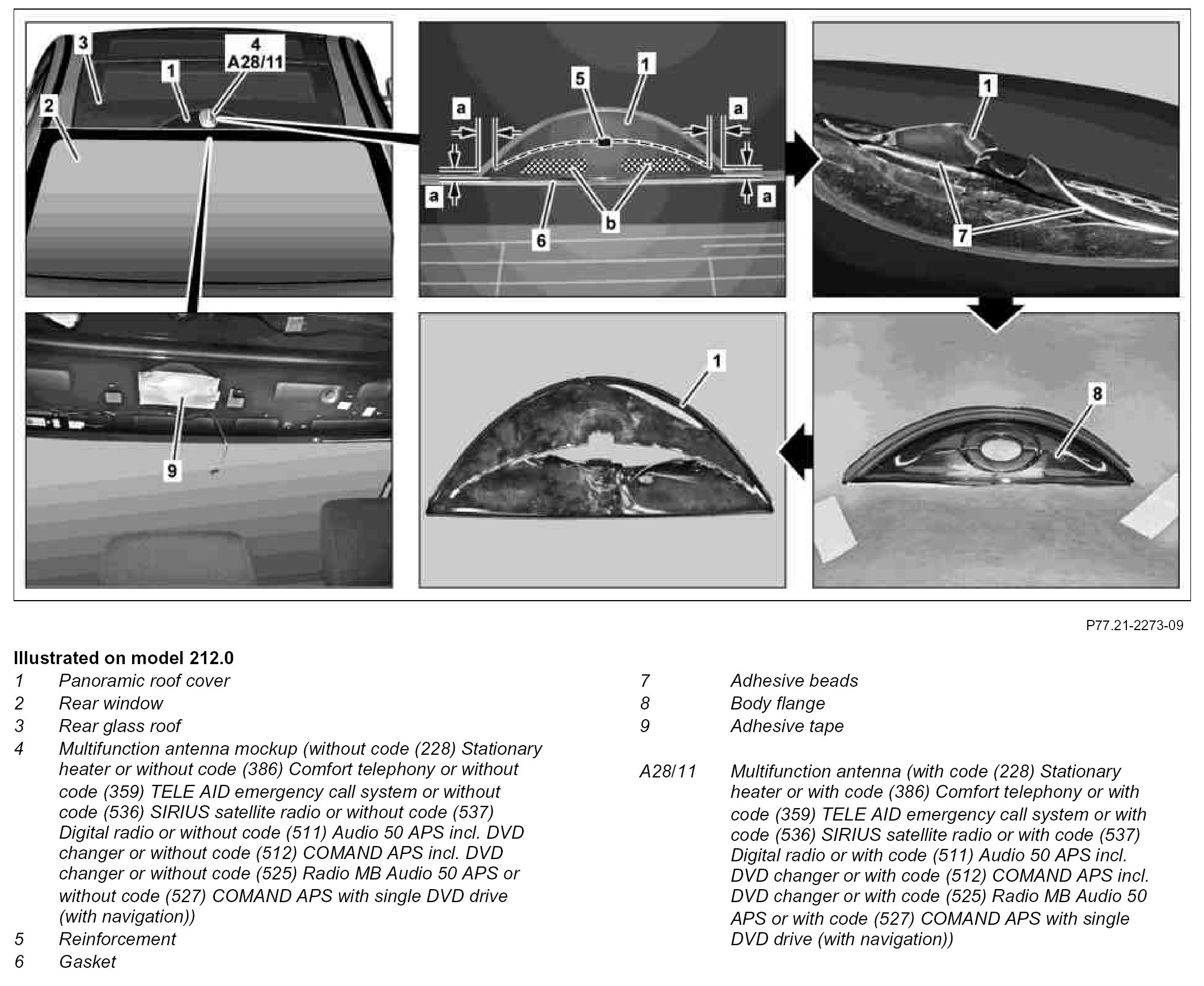

Component Identification:

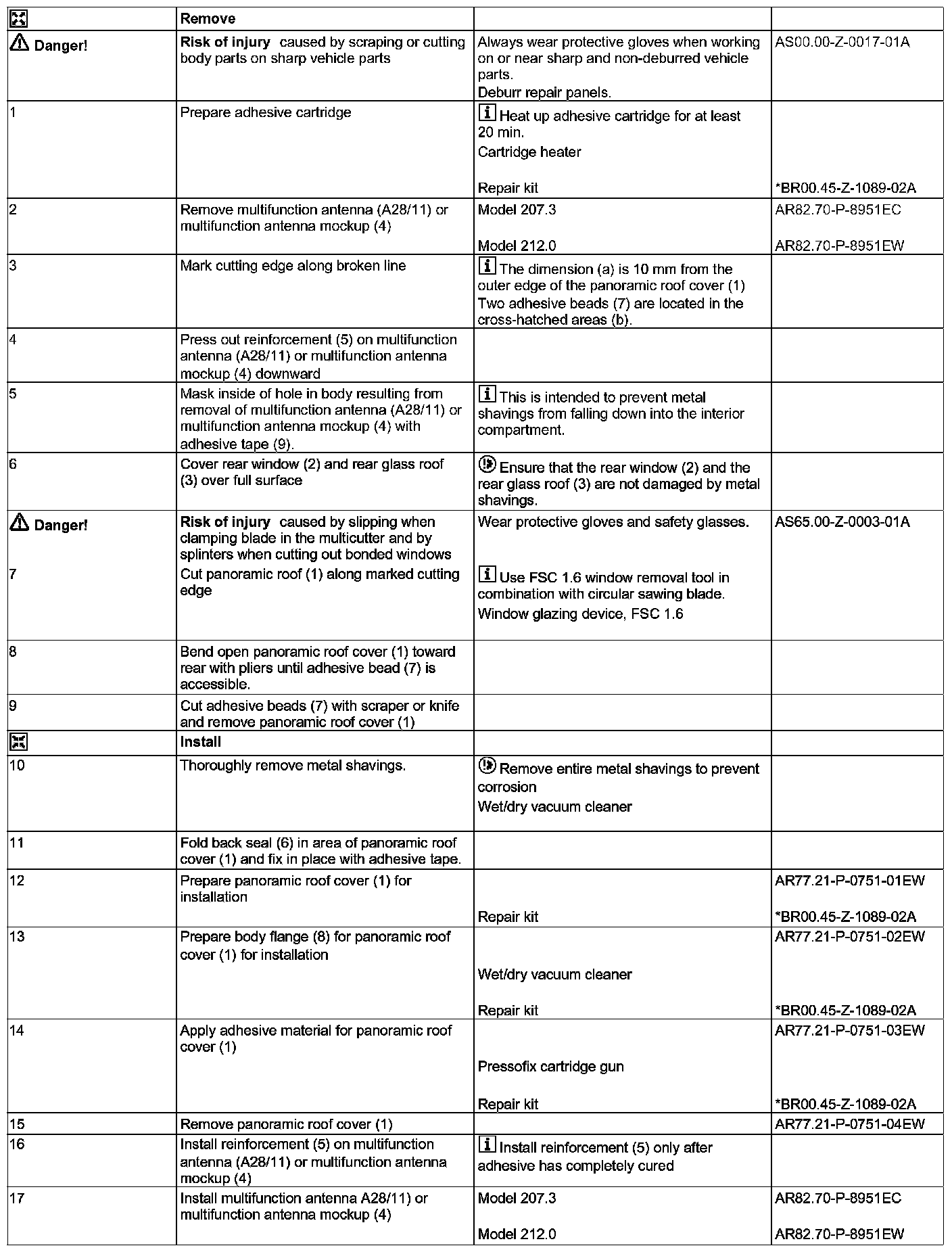

Steps 1 - 17:

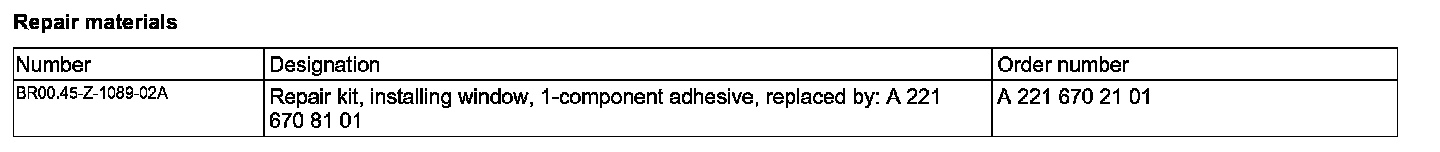

Repair Materials:
