AR77.21-P-0751-04EW Install Rear Panoramic Roof Cover

AR77.21-P-0751-04EW Install Rear Panoramic Roof Cover
- with CODE (413) Panoramic glass roof with top sliding roof







Install panoramic roof cover (1) within 5 min. after applying adhesive to body, otherwise adhesion force of glue will be impaired.

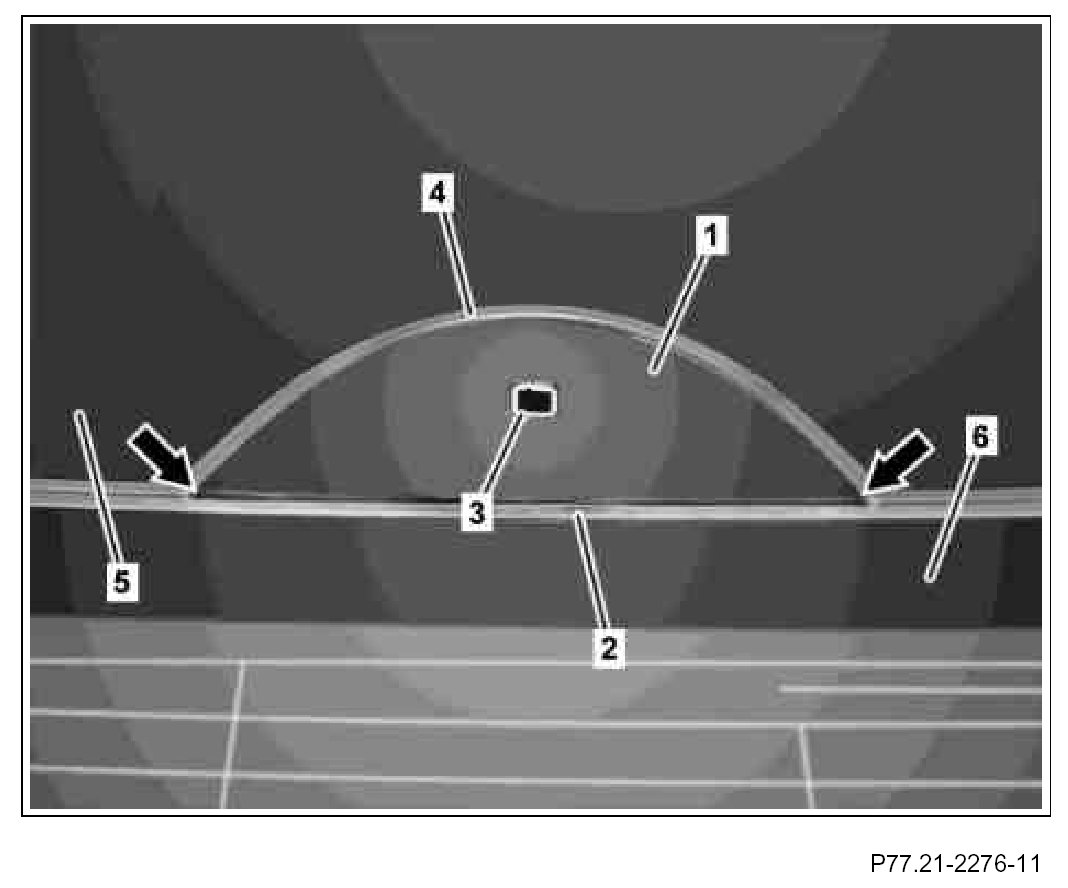

1. Position panoramic roof cover (1) in rear area (arrows) below folded down seal and lay down on body.
2. Position panoramic roof cover (1) by carefully pushing and sliding below rubber frame (4) on rear glass roof (5).
3. Remove cover material from rear window (6) and rear glass roof (5)
4. Remove adhesive tape from seal (2)
5. Align panoramic roof cover (1) in relation to rear window (6) and flush to rear glass roof (5).

Install reinforcement (3) on multifunction antenna or multifunction antenna mock-up after the adhesive has completely cured.
