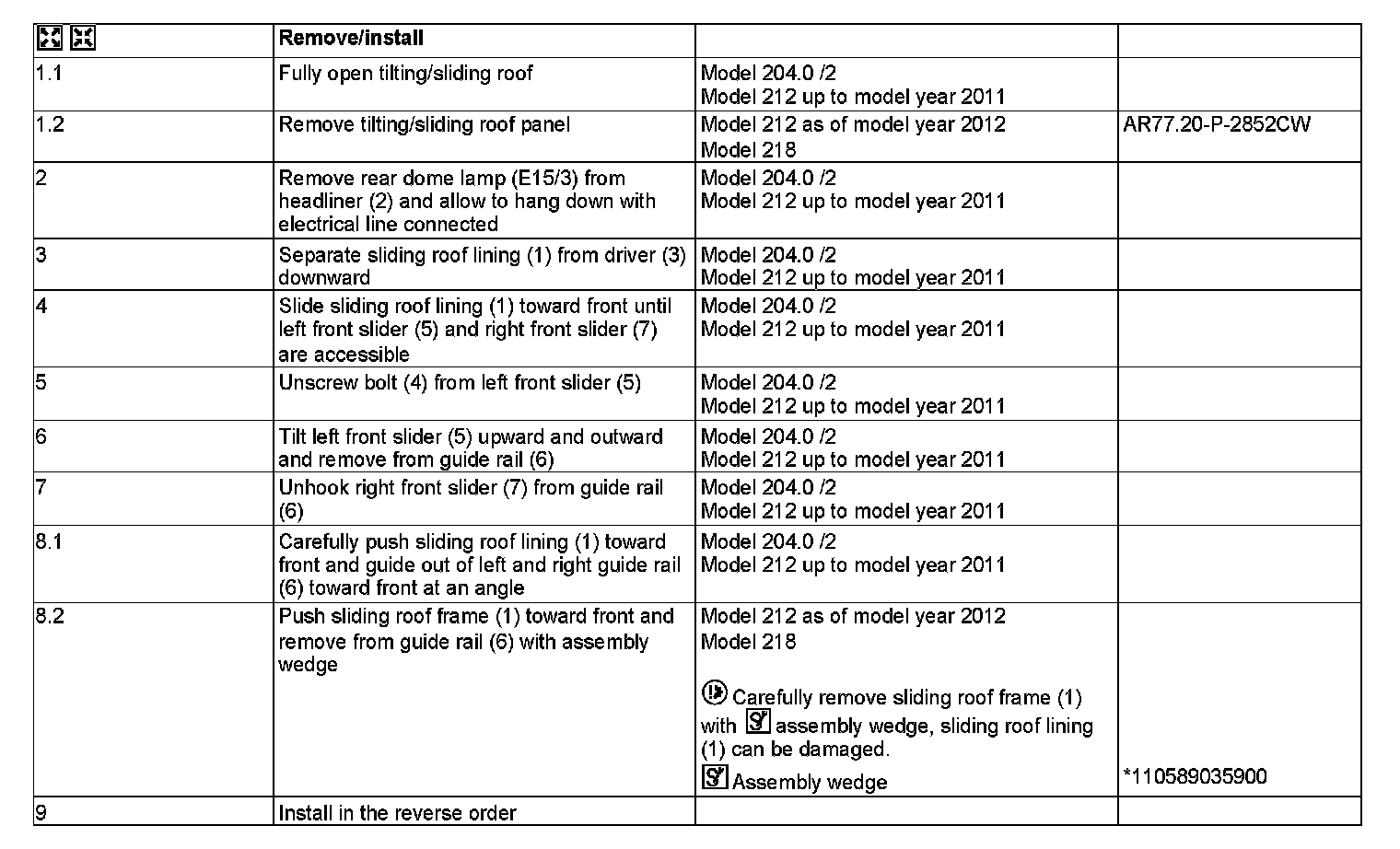

AR77.20-P-0500CW Remove/Install Paneling on Tilting/Sliding Roof

AR77.20-P-0500CW Remove/Install Paneling on Tilting/Sliding Roof
MODEL 204.0 /2, 212, 218
- with CODE (414) Power glass tilting/sliding roof





Shown on model 204.0

1 Sliding sunroof lining
2 Headliner
3 Driver
4 Screw
5 Left front slider
6 Guide rail
7 Right front slider
8 Rear sliding rail

E15/3 Rear dome lamp








110 589 03 59 00
Mounting wedge
