AR77.21-P-0751-02EW Prepare Body Flange on Rear Panoramic Roof For Installation

AR77.21-P-0751-02EW Prepare Body Flange On Rear Panoramic Roof For Installation
- with CODE (413) Panoramic glass roof with top sliding roof

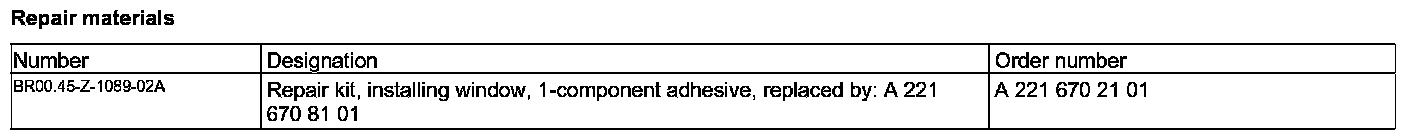

Repair Materials:

Wear cotton gloves. Ensure that no fingerprints are present in the area of the glue bead (1). To prevent adhesion problems when installing the window, keep the bonding surface free of dust, oil, grease, wax, dirt residues and other adhesive substances.

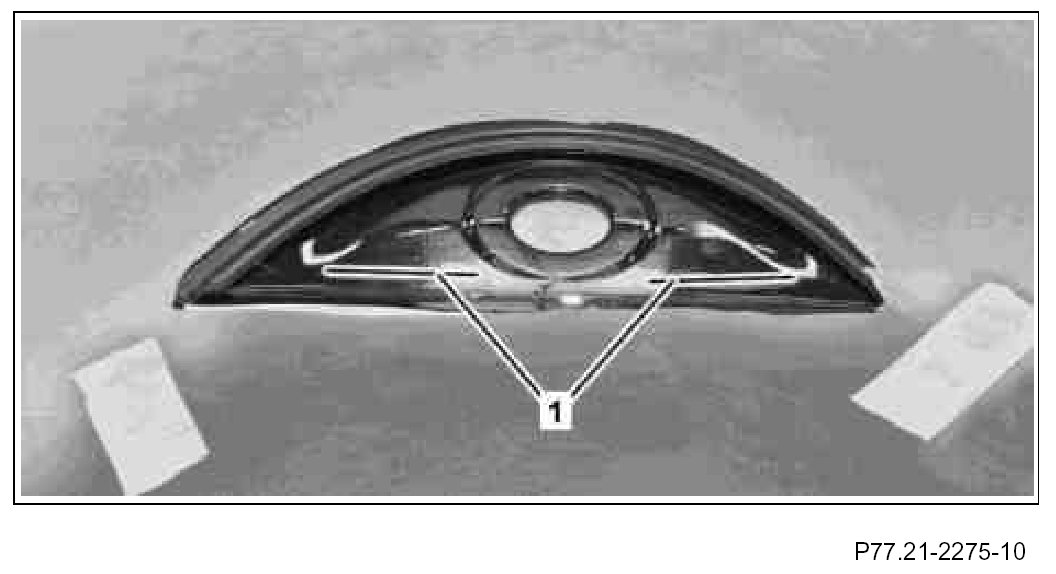

1. Cut down existing glue bead (1) on body flange to a height of approx. 1 to 2 mm.

Wet/dry vacuum cleaner

Do not leave more than 2 mm of present adhesive bead (1). Remove glue residues from glue beads (1) not completely cut off.

2. Repair paint damage on body
3. Apply primer in gluing area if glue residues are not present
Observe drying time of at least 10 minutes.
