AR77.20-P-3000CW Remove/Install Tilting/Sliding Roof Frame

AR77.20-P-3000CW Remove/Install Tilting/Sliding Roof Frame
MODEL 166.0, 204.0 /2, 212, 218.3
- with CODE (414) Power glass tilting/sliding roof

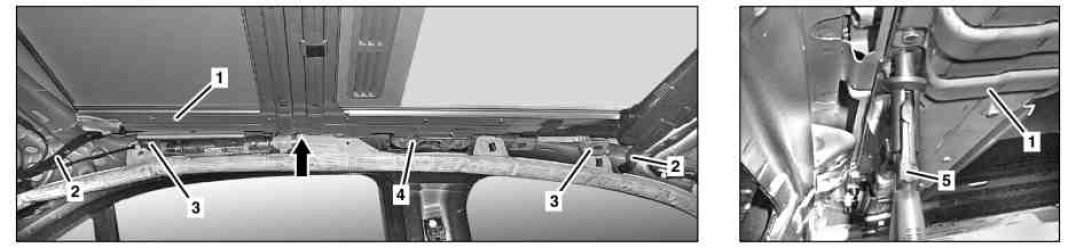

Shown on model 204.0, at left side of vehicle

1 Tilting/sliding roof frame
2 Water drain hose
3 Handle bracket
4 Mounting console
5 Pliers

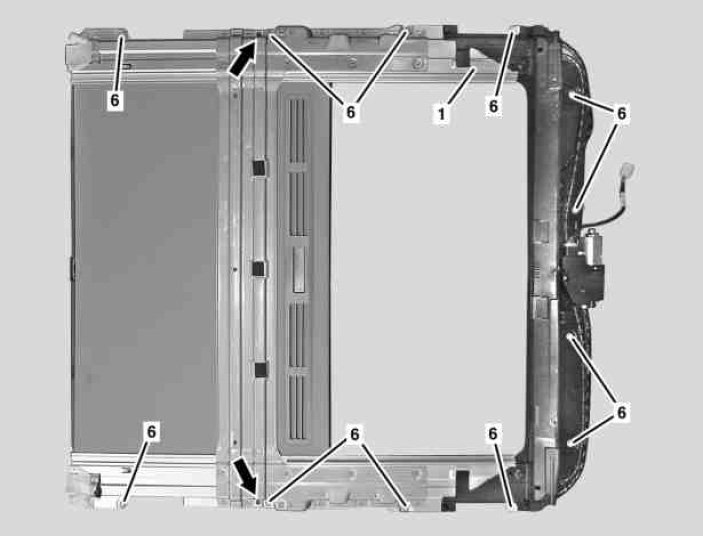

Shown on model 204.0 with tilting/sliding roof (1) removed

1 Tilting/sliding roof frame
6 Bolts











164 589 00 37 00
Pliers
