AR77.20-P-1998CW Remove/Install Sliding Rail For Water Drain Rail on Sliding Roof

AR77.20-P-1998CW Remove/Install Sliding Rail For Water Drain Rail on Sliding Roof
MODEL 204.0 /2
- with CODE (414) Power glass tilting/sliding roof
MODEL 212
- with CODE (414) Power glass tilting/sliding roof up to model year 2011

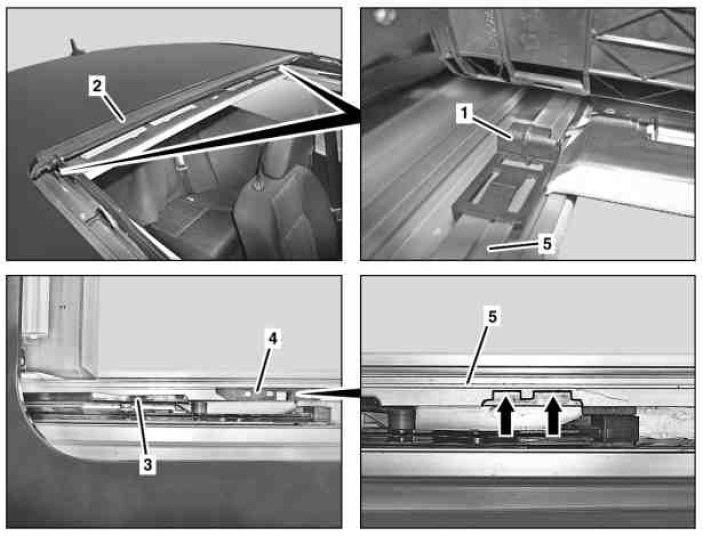

Shown on right slider on model 204

1 Slider
2 Water drain rail
3 Tilting bracket
4 End stop
5 Guide rail
