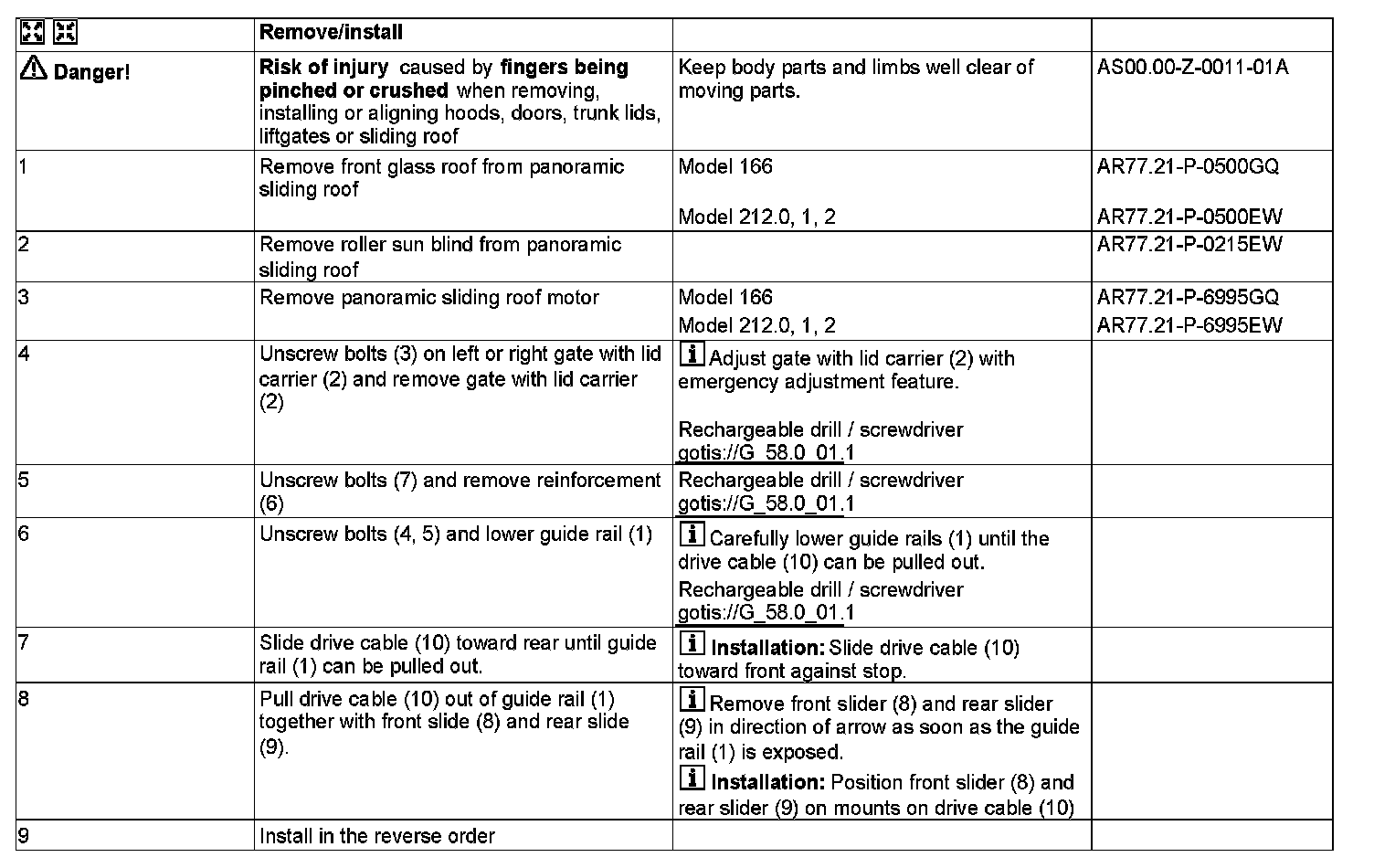

AR77.21-P-0240EW Remove/Install Drive Cable for Panoramic Sliding Sunroof

AR77.21-P-0240EW Remove/Install Drive Cable For Panoramic Sliding Sunroof
MODEL 166, 212.0 /1 /2
- with CODE (413) Panoramic glass roof with top sliding roof

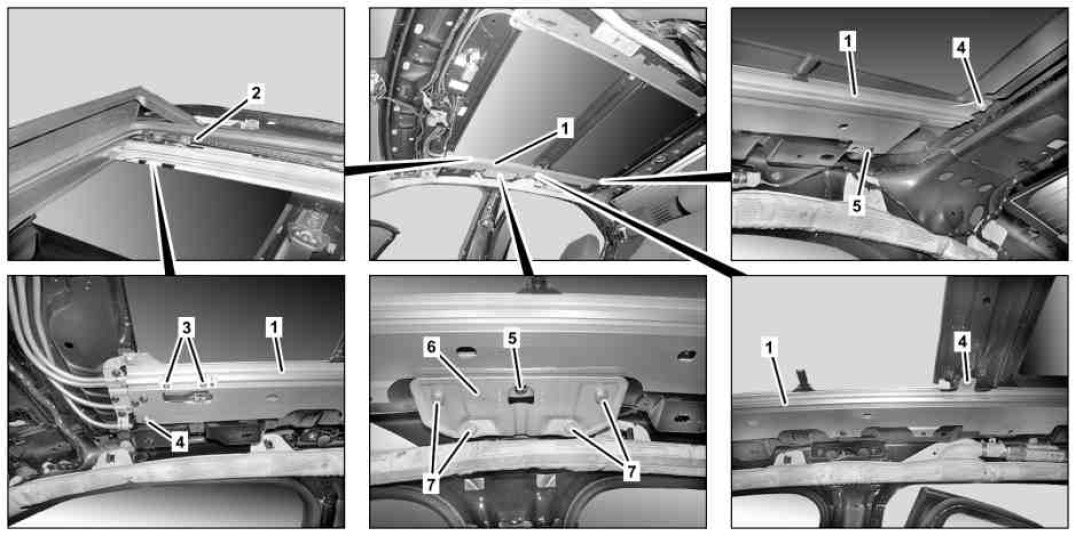

Shown on model 212.0 on right side of vehicle

1 Guide rail
2 Guide rail with lid carrier
3 Bolts
4 Screw
5 Screw
6 Reinforcement
7 Bolts





Shown on model 212.0 on right guide rail (1)

1 Guide rail
8 Front slider
9 Rear slider
10 Drive cable
