AR77.21-P-0230EW Remove/Install Drive Cable for Panoramic Sunroof Roller Sun Blind

AR77.21-P-0230EW Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind
MODEL 166, 212.0 /1 /2
- with CODE (413) Panoramic glass roof with top sliding roof

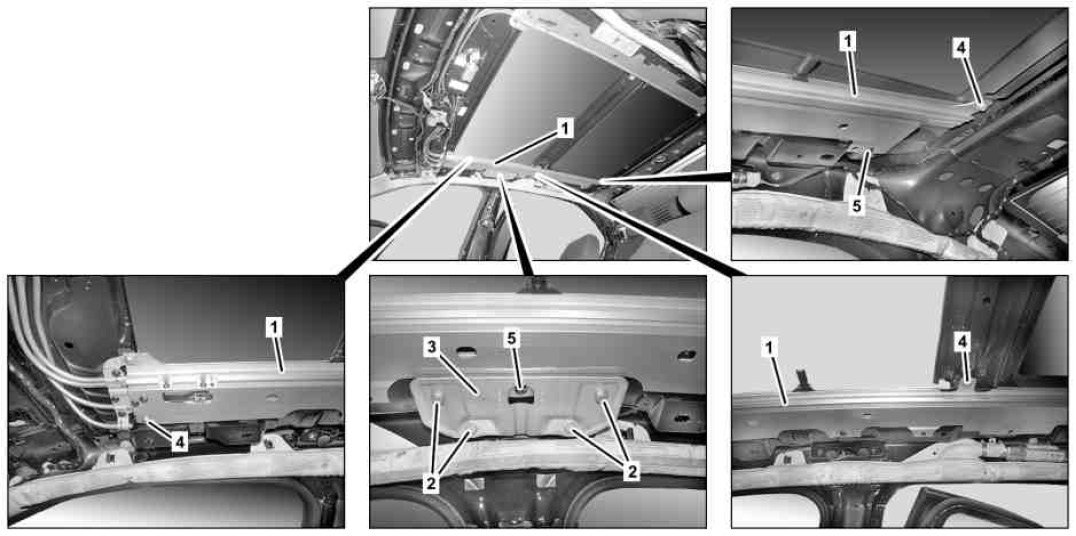

Shown on model 212.0 on right side of vehicle

1 Guide rail
2 Bolts
3 Reinforcement
4 Screw
5 Screw

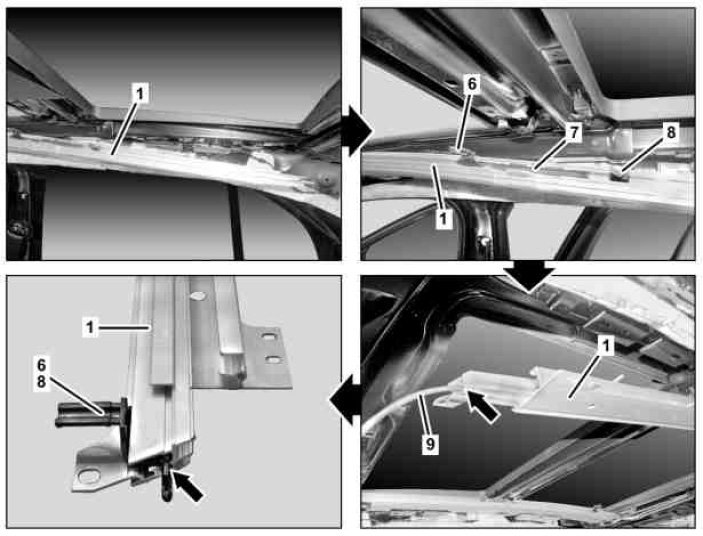

Shown on model 212.0 on right side of vehicle

1 Guide rail
6 Front roller sun blind coupling
7 Rubber stop
8 Rear roller sun blind coupling
9 Drive cable

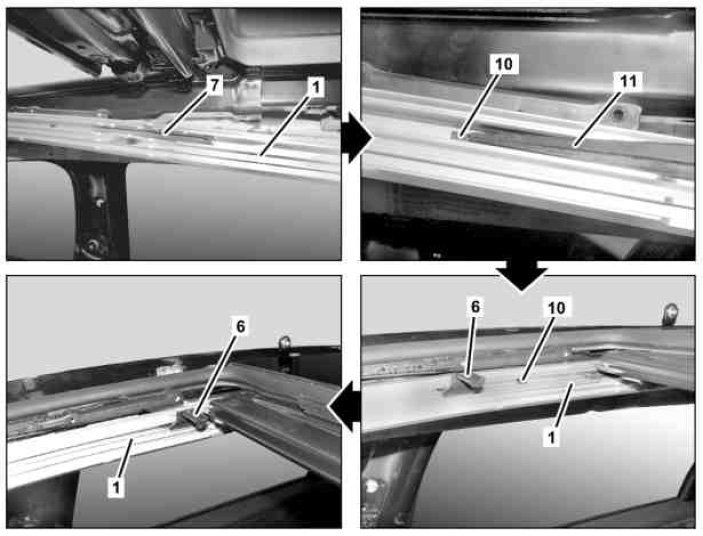

Shown on model 212.0

1 Guide rail
6 Front roller sun blind coupling
7 Rubber stop
10 Driver
11 Long wedge








115 589 03 59 00
Long wedge
