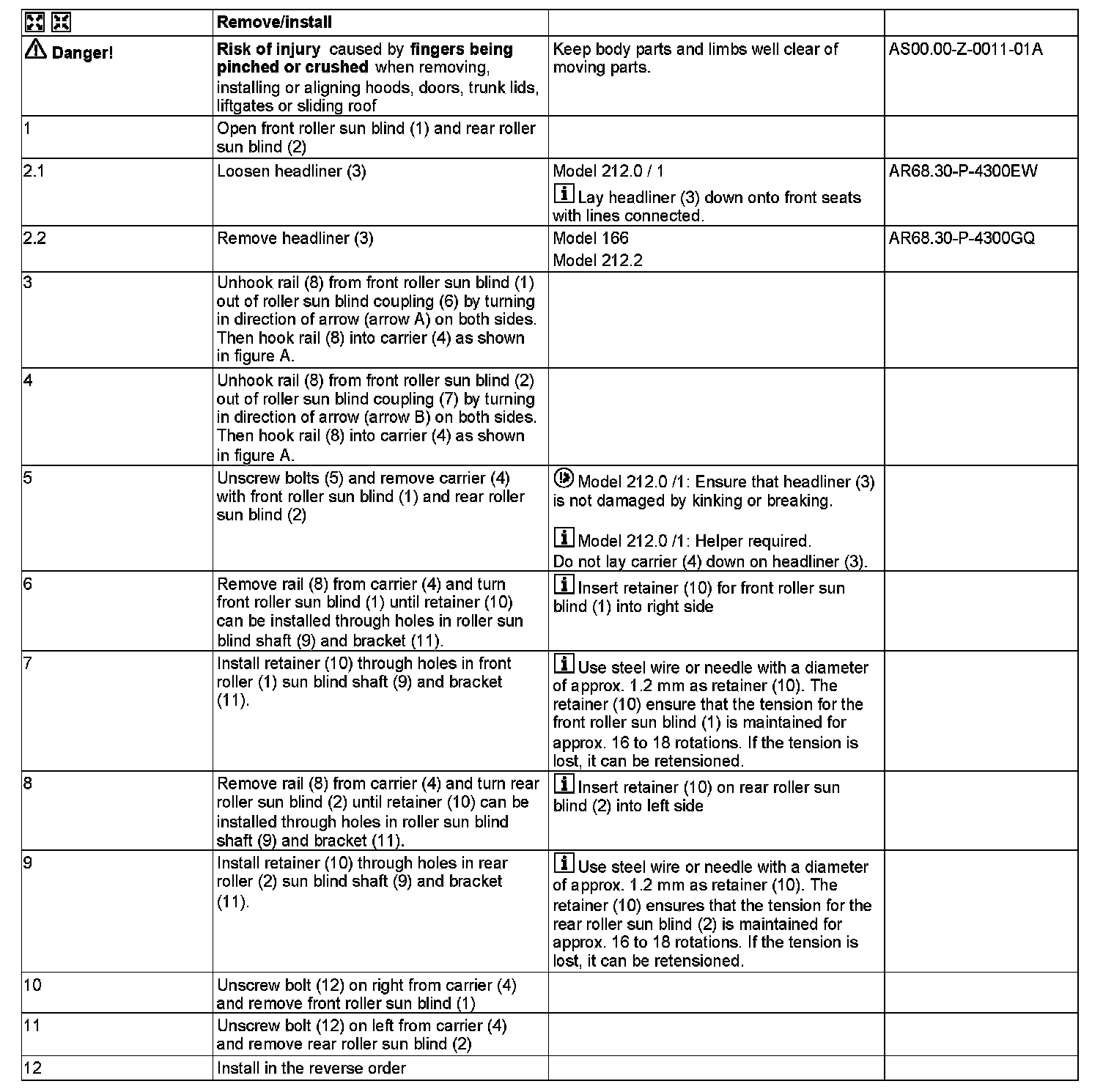

AR77.21-P-0215EW Remove, Install Roller Sun Blind on Panoramic Sliding Roof

AR77.21-P-0215EW Remove, Install Roller Sun Blind on Panoramic Sliding Roof
MODEL 166, 212.0 /1 /2
- with CODE (413) Panoramic glass roof with top sliding roof

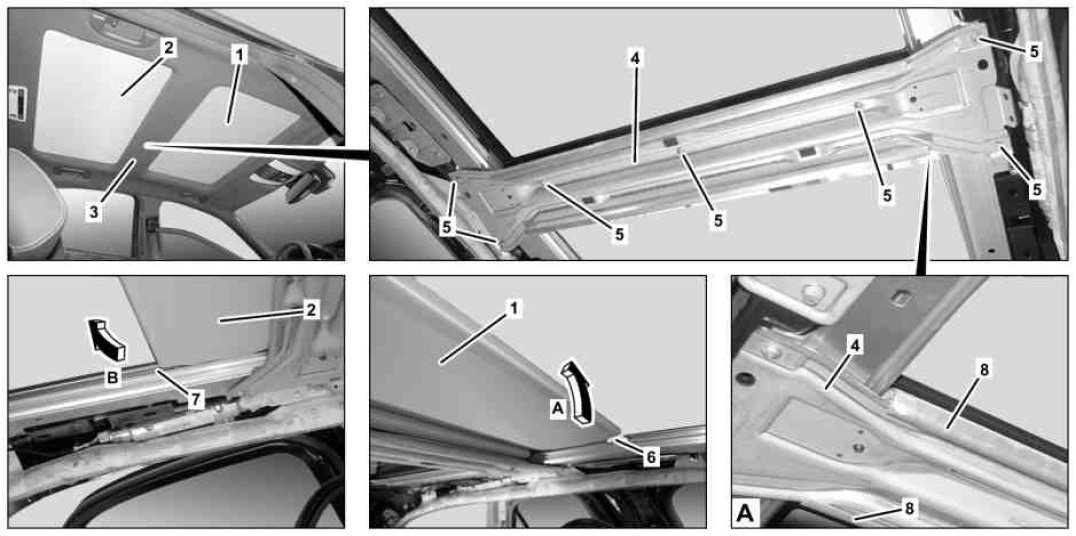

1 Front roller sun blind
2 Rear roller sun blind
3 Headliner
4 Carrier
5 Bolts
6 Roller sun blind coupling
7 Roller sun blind coupling
8 Rail

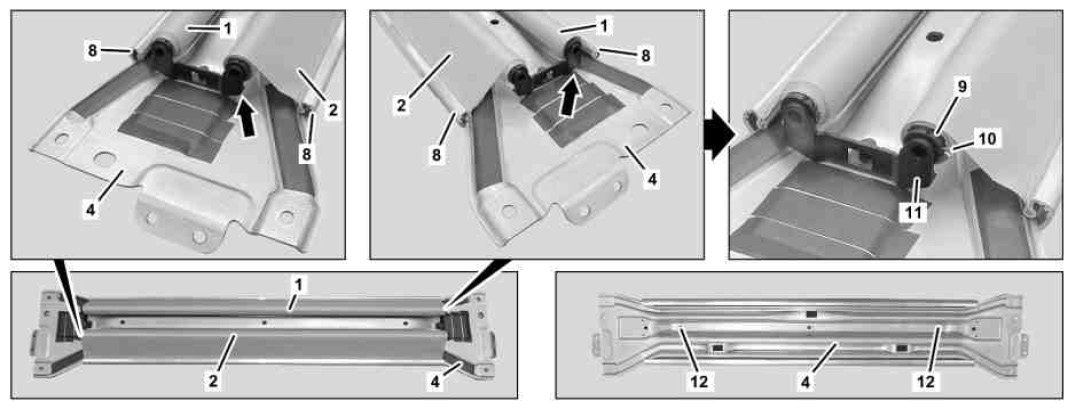

1 Front roller sun blind
2 Rear roller sun blind
4 Carrier
8 Rail
9 Sun blind shaft
10 Retainer
11 Bracket
12 Screw
