PE77.20-P-2052DAA Electrical Function Schematic For Panoramic Sliding Roof

PE77.20-P-2052DAA Electrical Function Schematic For Panoramic Sliding Roof
MODEL 212.0 /2
- with CODE (413) Panoramic glass roof with top sliding roof

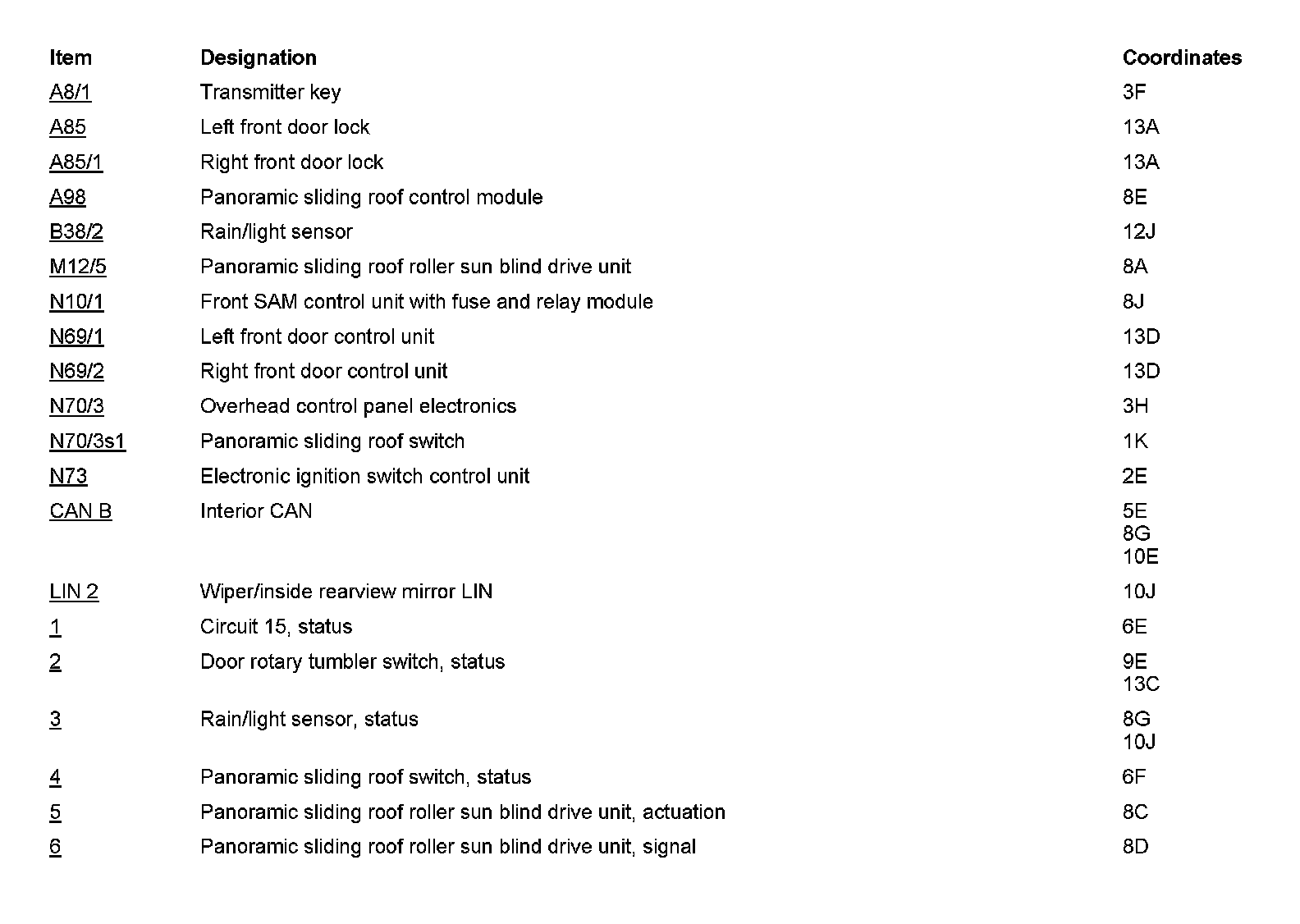

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
