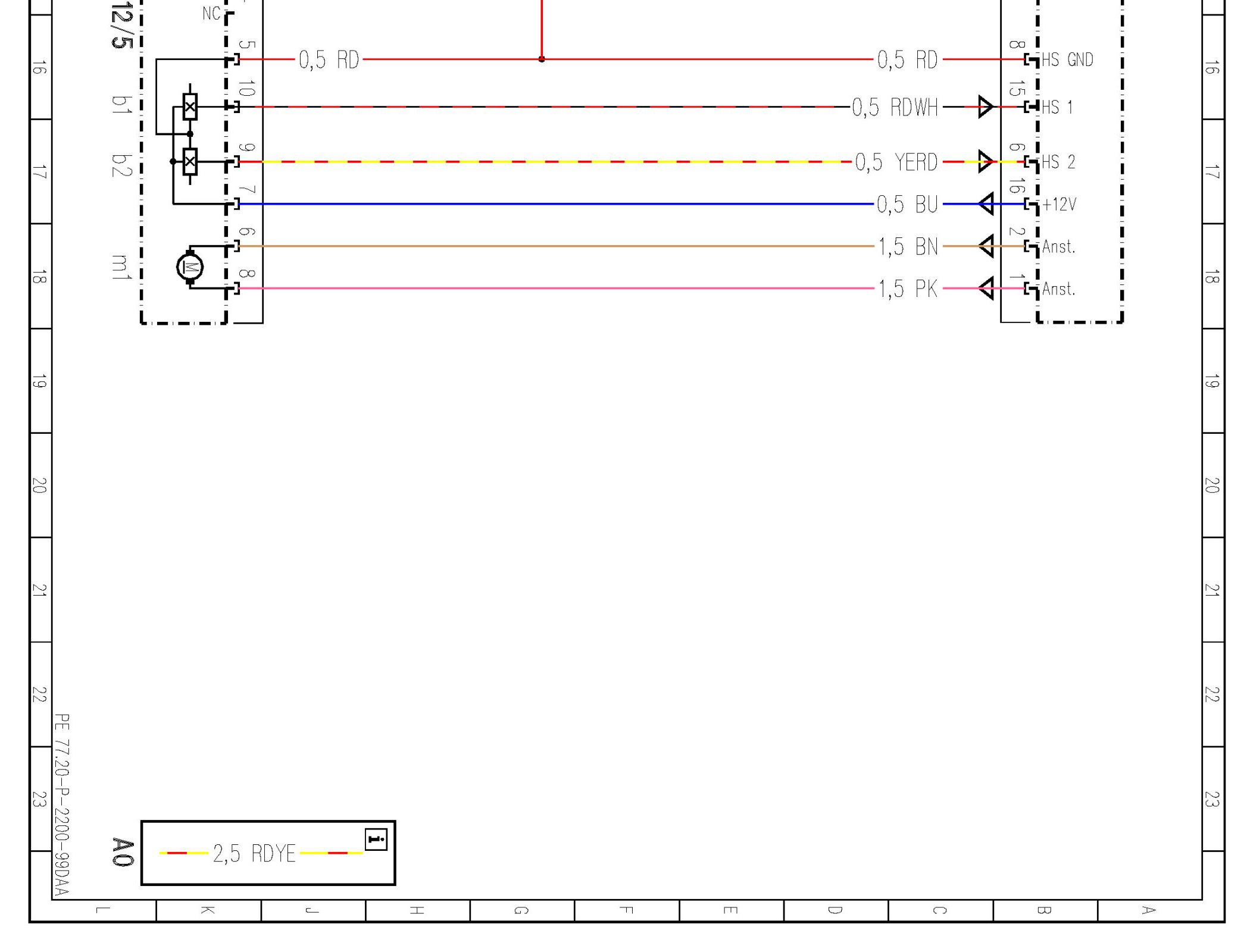

PE77.20-P-2200DAA Electric Wiring Diagram For Panoramic Sliding Roof

PE77.20-P-2200DAA Electric Wiring Diagram For Panoramic Sliding Roof
Model 212.0 /2
- with CODE (413) Panoramic glass sunroof with top sliding sunroof
- control unit A98






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
