Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Description and Operation >> GF77.20-P-0003-03FL Electric Panoramic Sliding Sunroof, Block Diagram

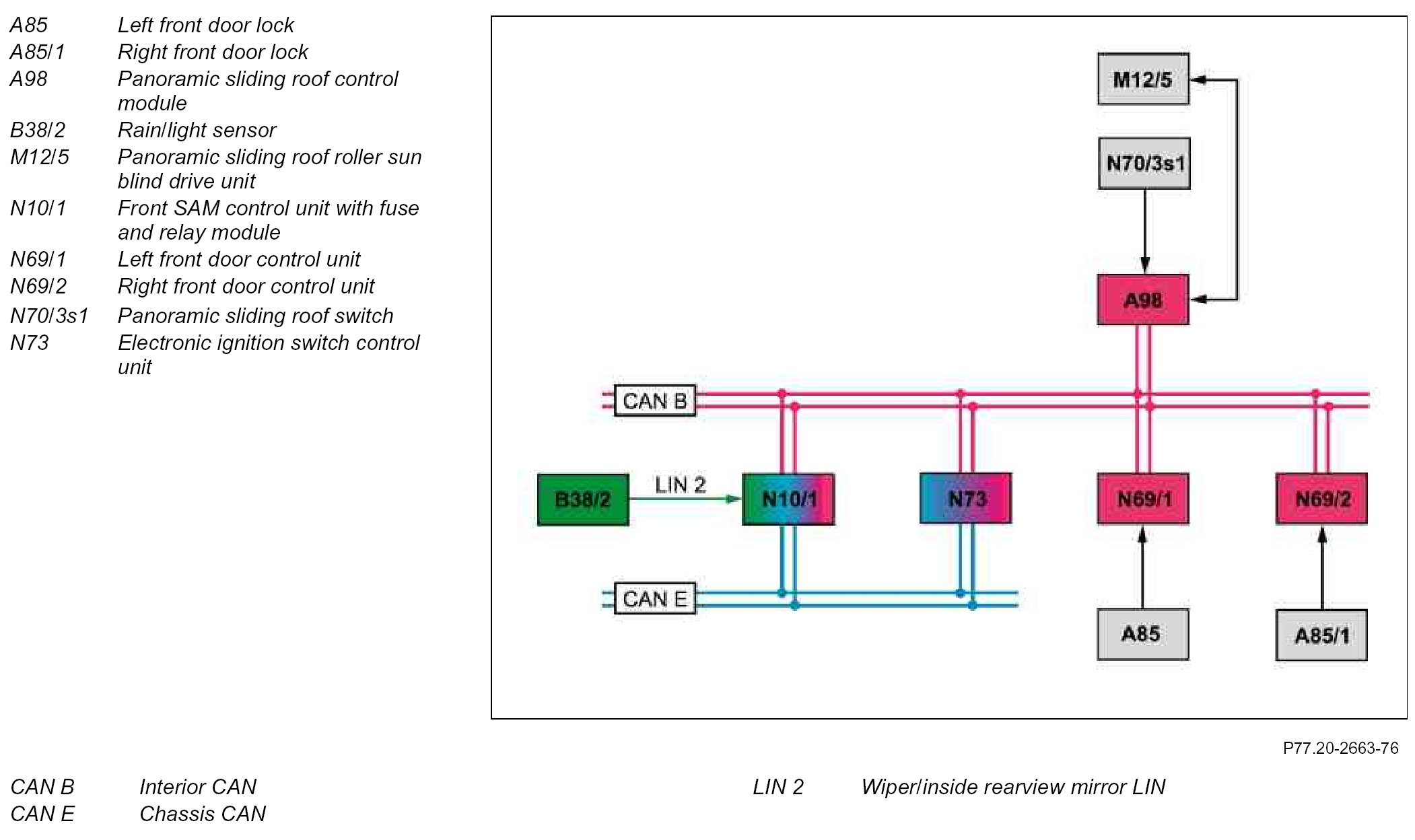

GF77.20-P-0003-03FL Electric Panoramic Sliding Sunroof, Block Diagram



GF77.20-P-0003-03FL Electric Panoramic Sliding Sunroof, Block Diagram
- with CODE (413) Panoramic glass roof with top sliding roof


Component Identification:
