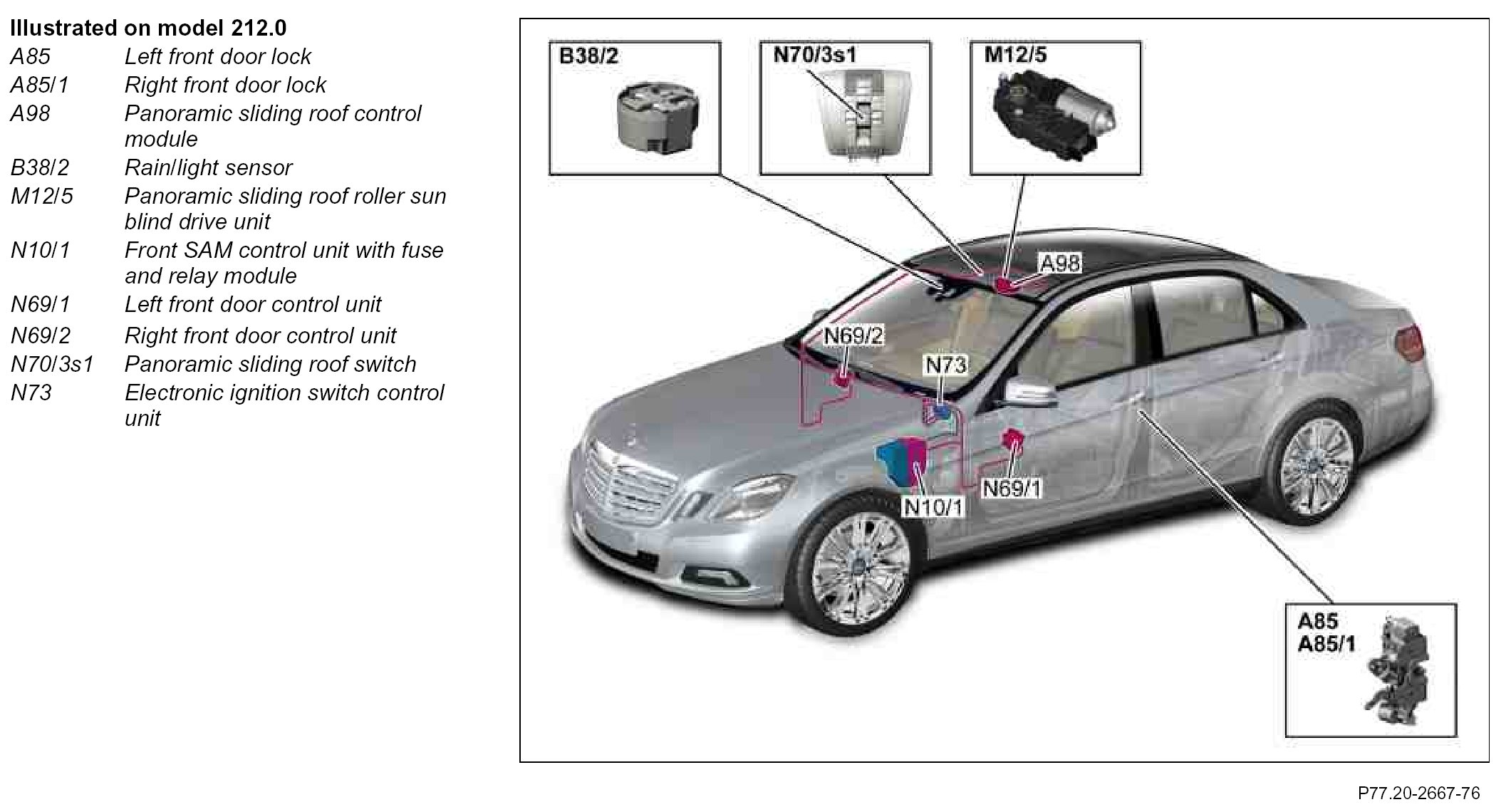

GF77.20-P-0003-01FL Electric Panoramic Sliding Roof, Location of Components



GF77.20-P-0003-01FL Electric Panoramic Sliding Roof, Location Of Components
- with CODE (413) Panoramic glass roof with top sliding roof



Component Identification:
