GF77.20-P-0001-01FL Electric Tilting/Sliding Roof (SR), Location of Components



GF77.20-P-0001-01FL Electric Tilting/Sliding Roof (SR), Location Of Components
- with CODE (414) Power glass tilting/sliding roof

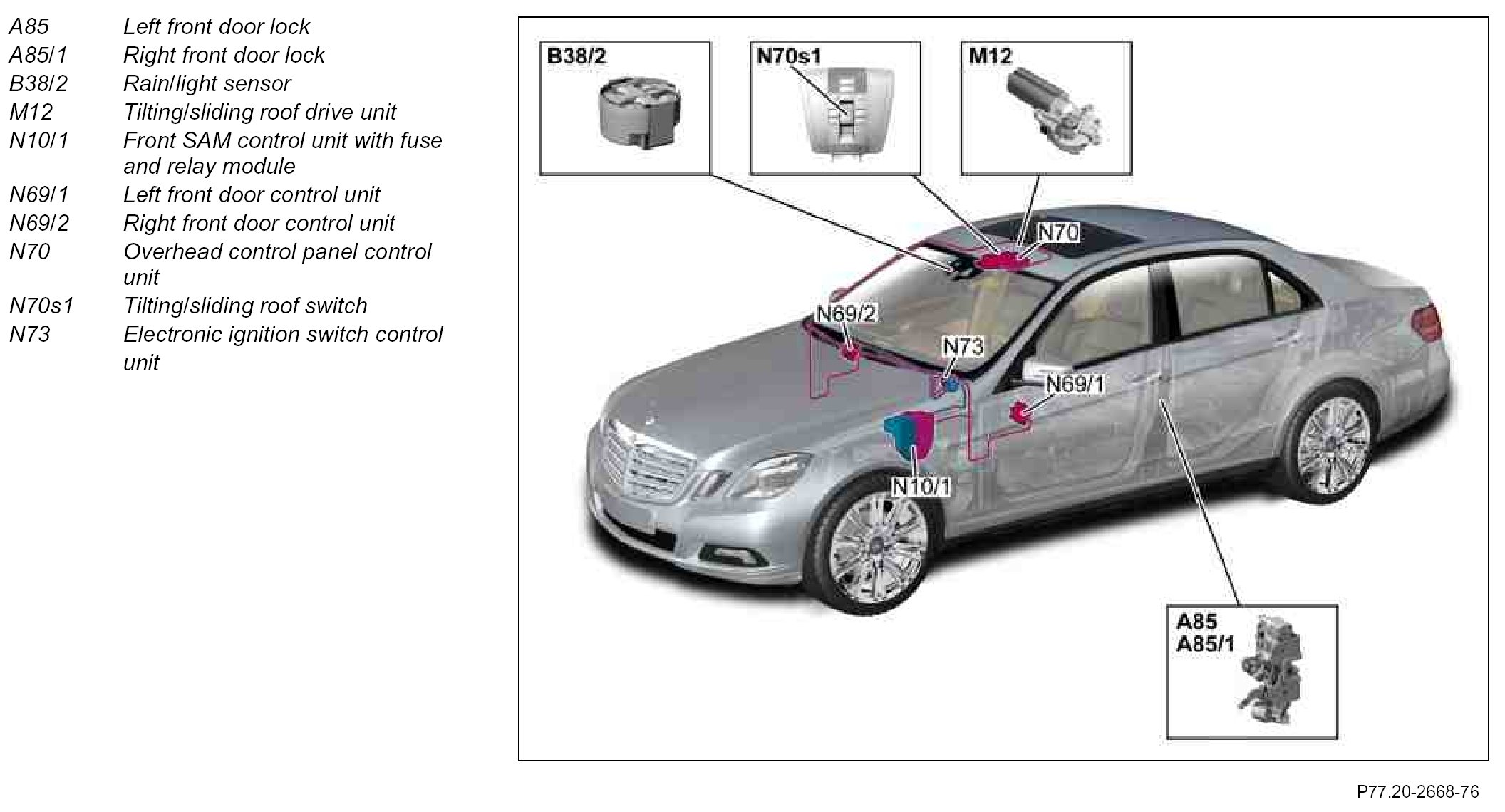

Component Identification:
