AR72.29-P-1000CW Remove/Install Front Door Control Unit
AR72.29-P-1000CW Remove/Install Front Door Control Unit
AR72.29-P-1000CW Remove/install Front Door Control Unit

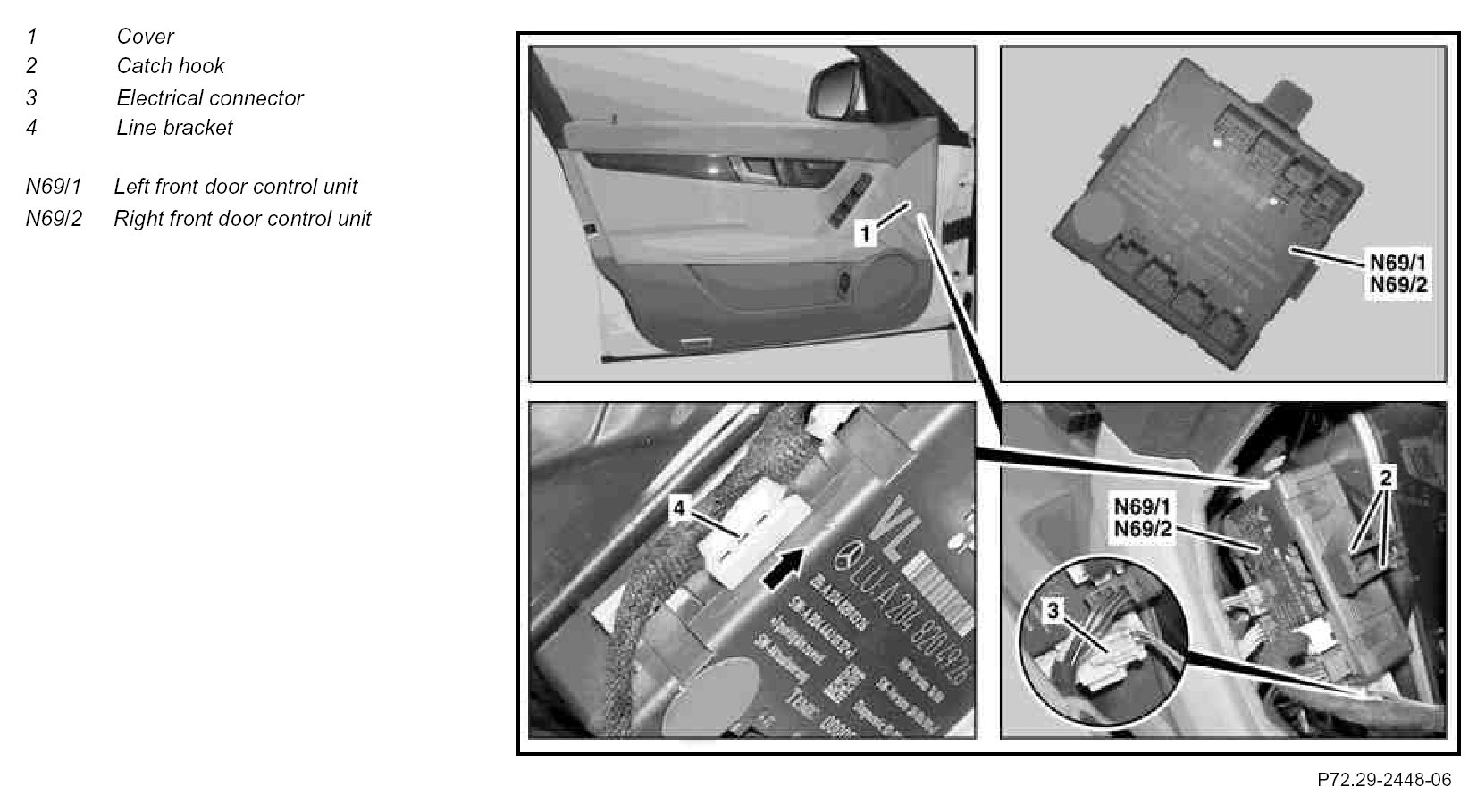

Component Identification:

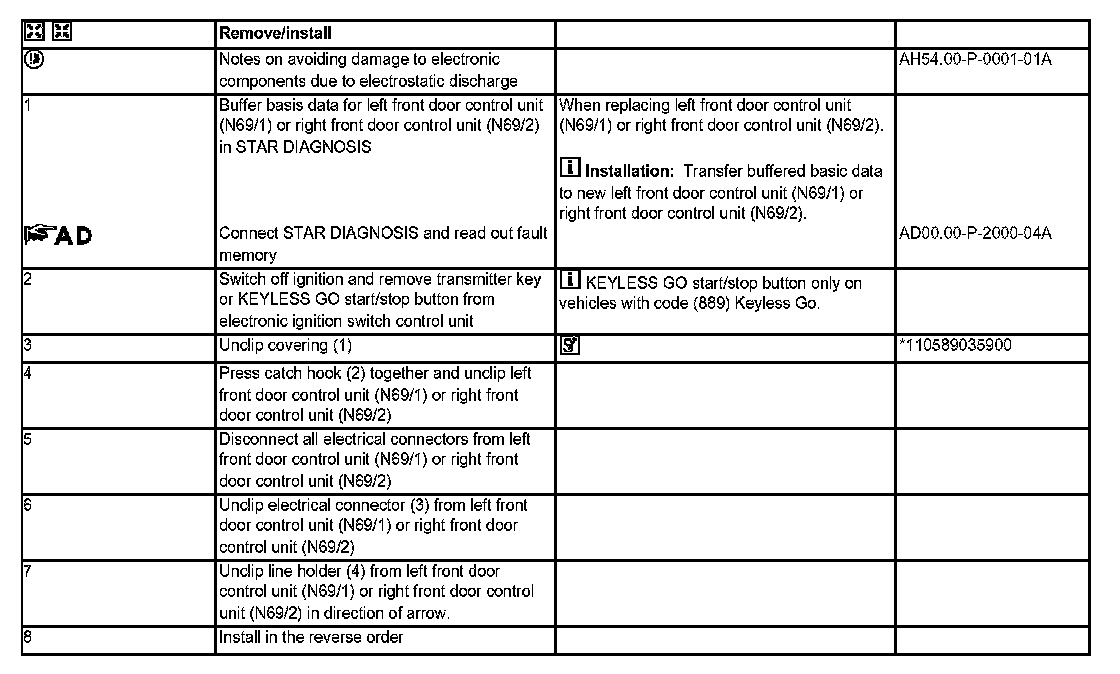

Steps 1 - 8:
Special Tools:
