E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Service and Repair
>>
AR88.80-P-0004EW Remove, Install Cover on Sealing Frame
AR88.80-P-0004EW Remove, Install Cover on Sealing Frame
AR88.80-P-0004EW Remove, Install Cover On Sealing
Frame

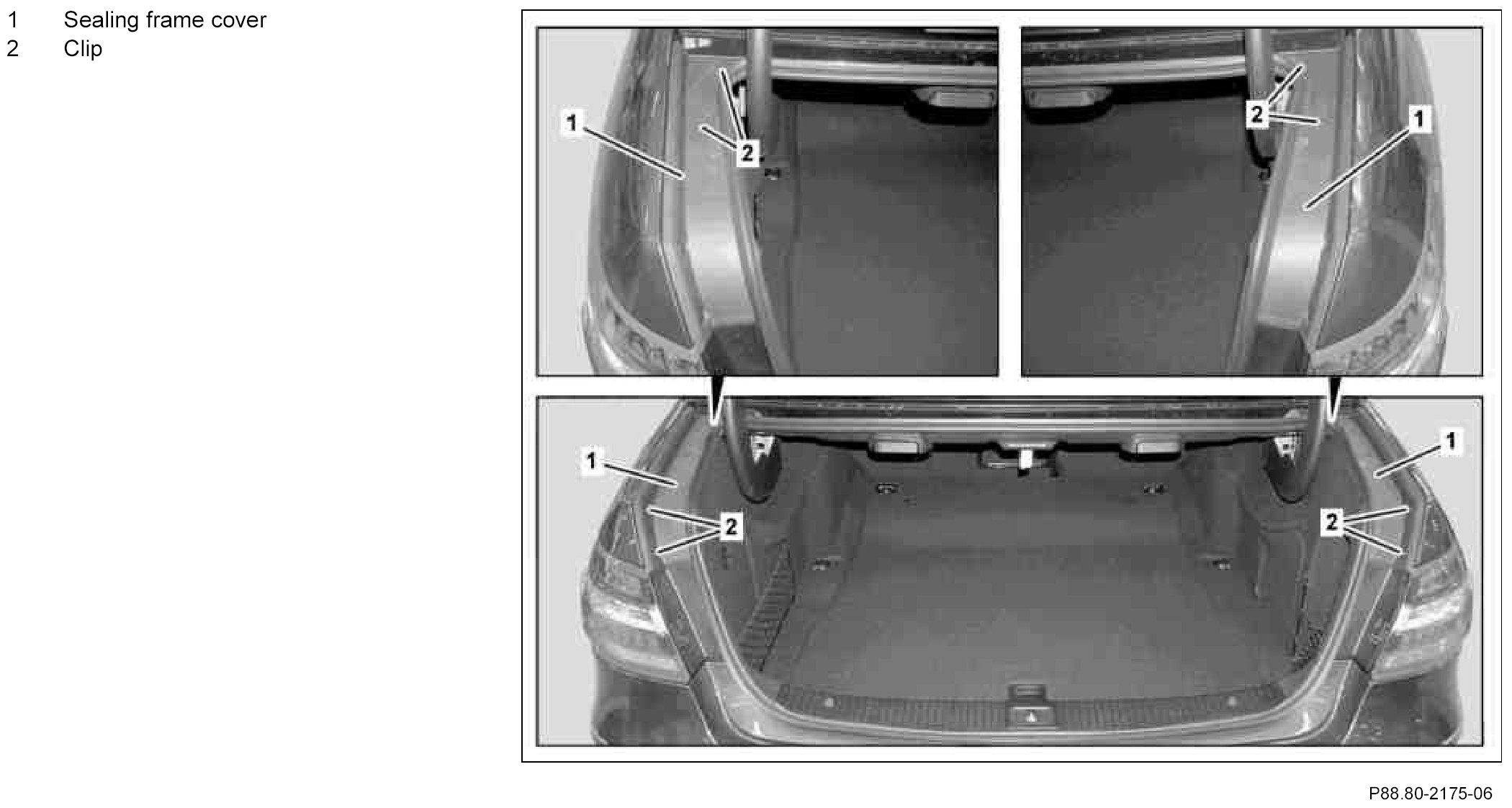

Component Identification:

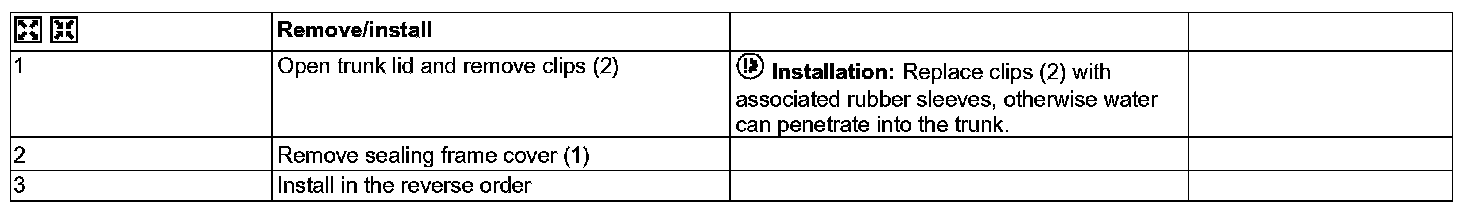

Steps 1 - 3:
