Power Mirror Motor: Service and Repair
AR88.70-P-9060CW Remove/Install Glass Adjustment Drive
Component Identification:

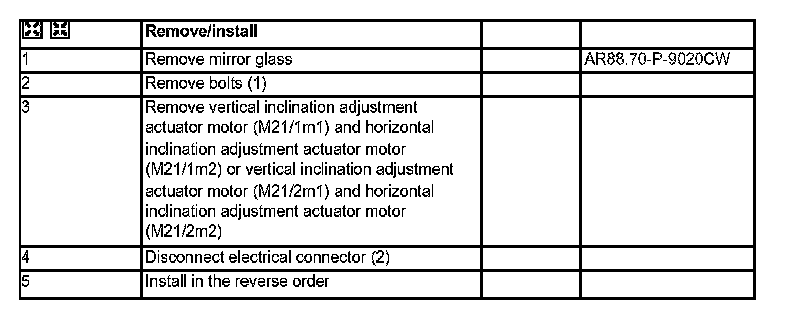

Steps 1 - 5:
