PE88.79-P-2056DAA Electrical Function Schematic For Automatic Dimming Mirror

PE88.79-P-2056DAA Electrical Function Schematic For Automatic Dimming Mirror
MODEL 212.0 /2
- with CODE (249) Automatically dimming inside rearview mirror and outside mirror (driver)
- with CODE (494) USA version
MODEL 212.0 /2
- with CODE (249) Automatically dimming inside rearview mirror and outside mirrors including folding outside mirrors
- with CODE (494) USA version

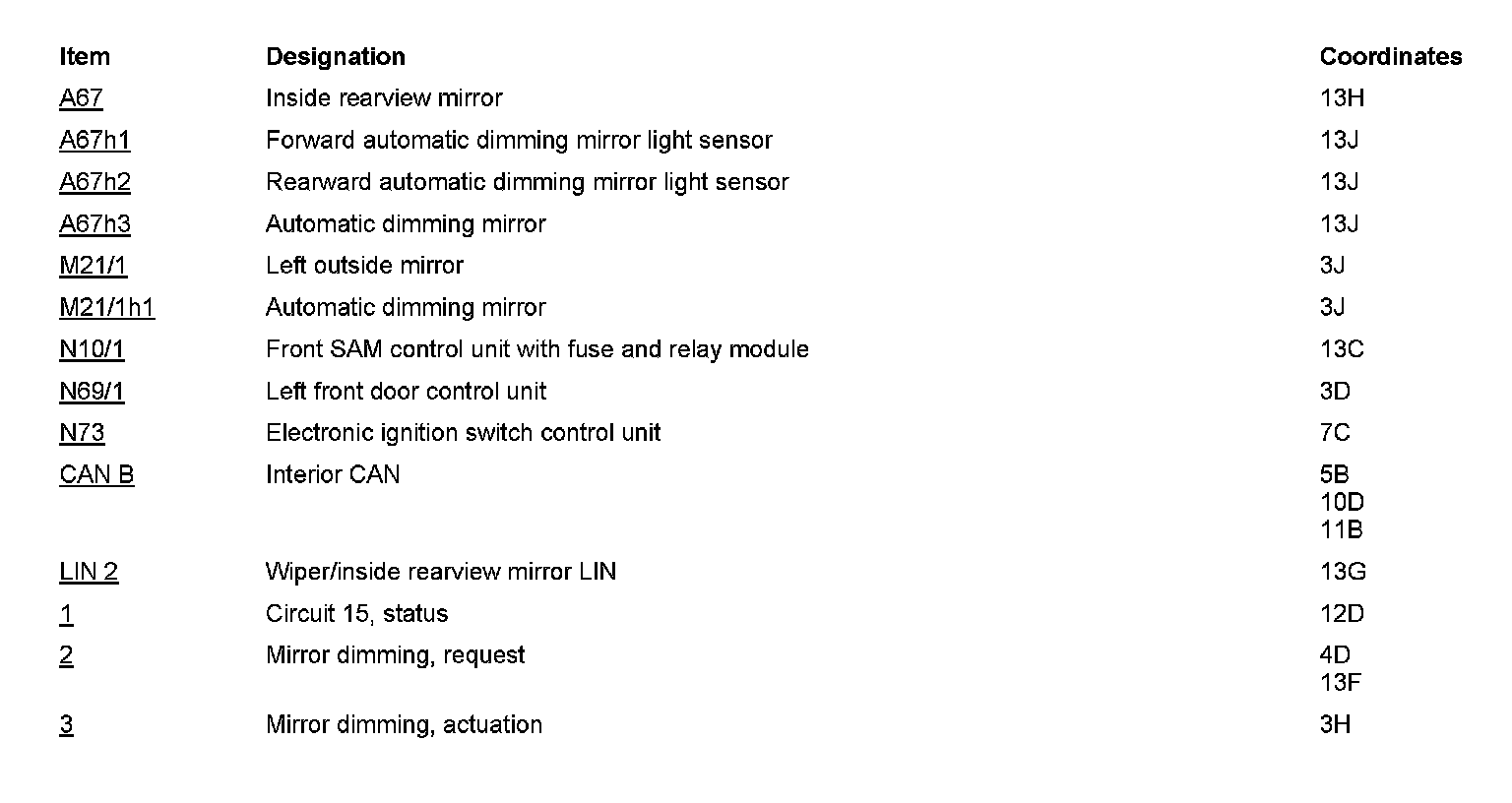

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
