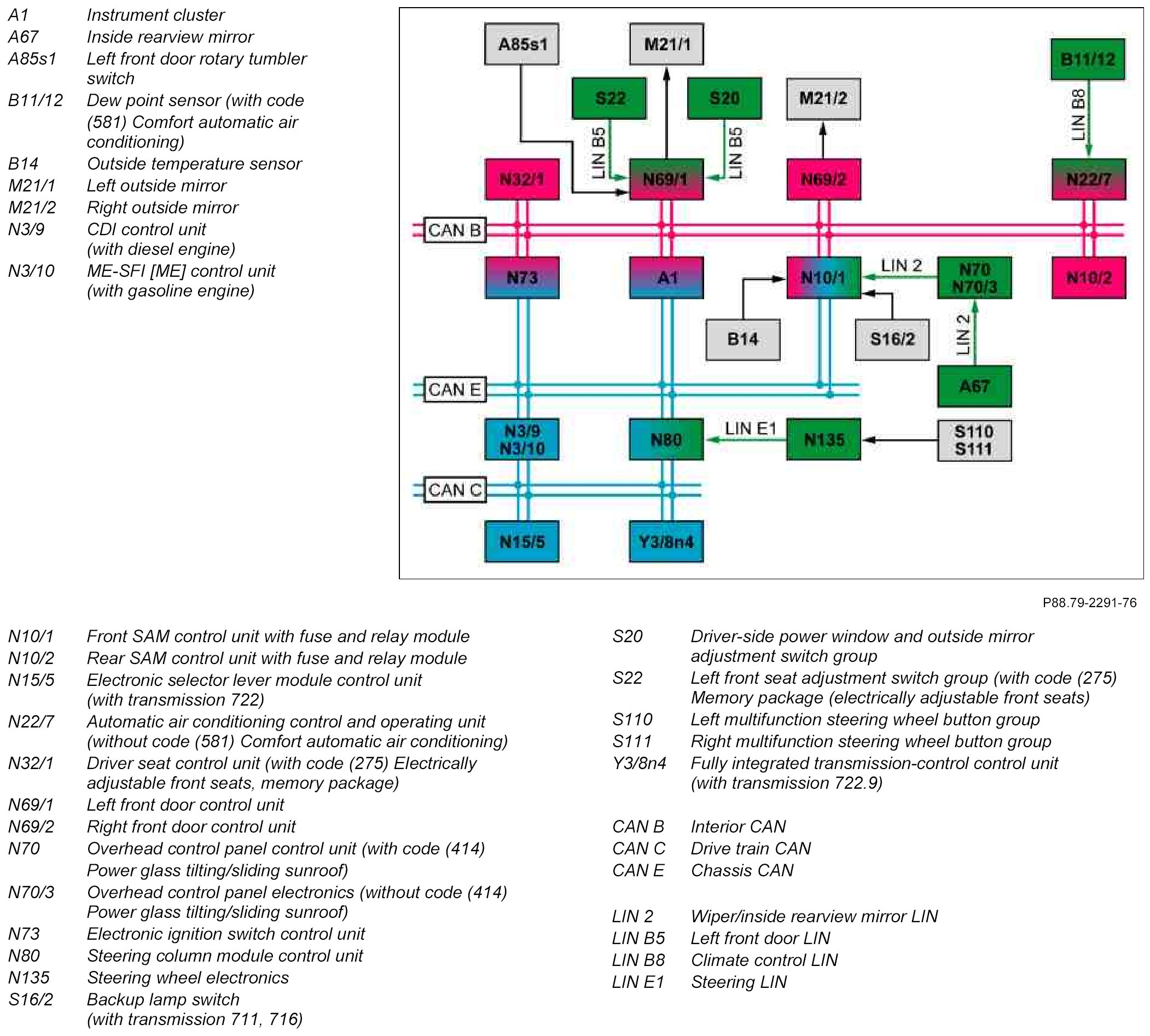

GF88.79-P-0003-02FL Electric Outside Mirrors, Block Diagram
GF88.79-P-0003-02FL Electric Outside Mirrors, Block Diagram
GF88.79-P-0003-02FL Electric Outside Mirrors, Block Diagram
Component Identification:
