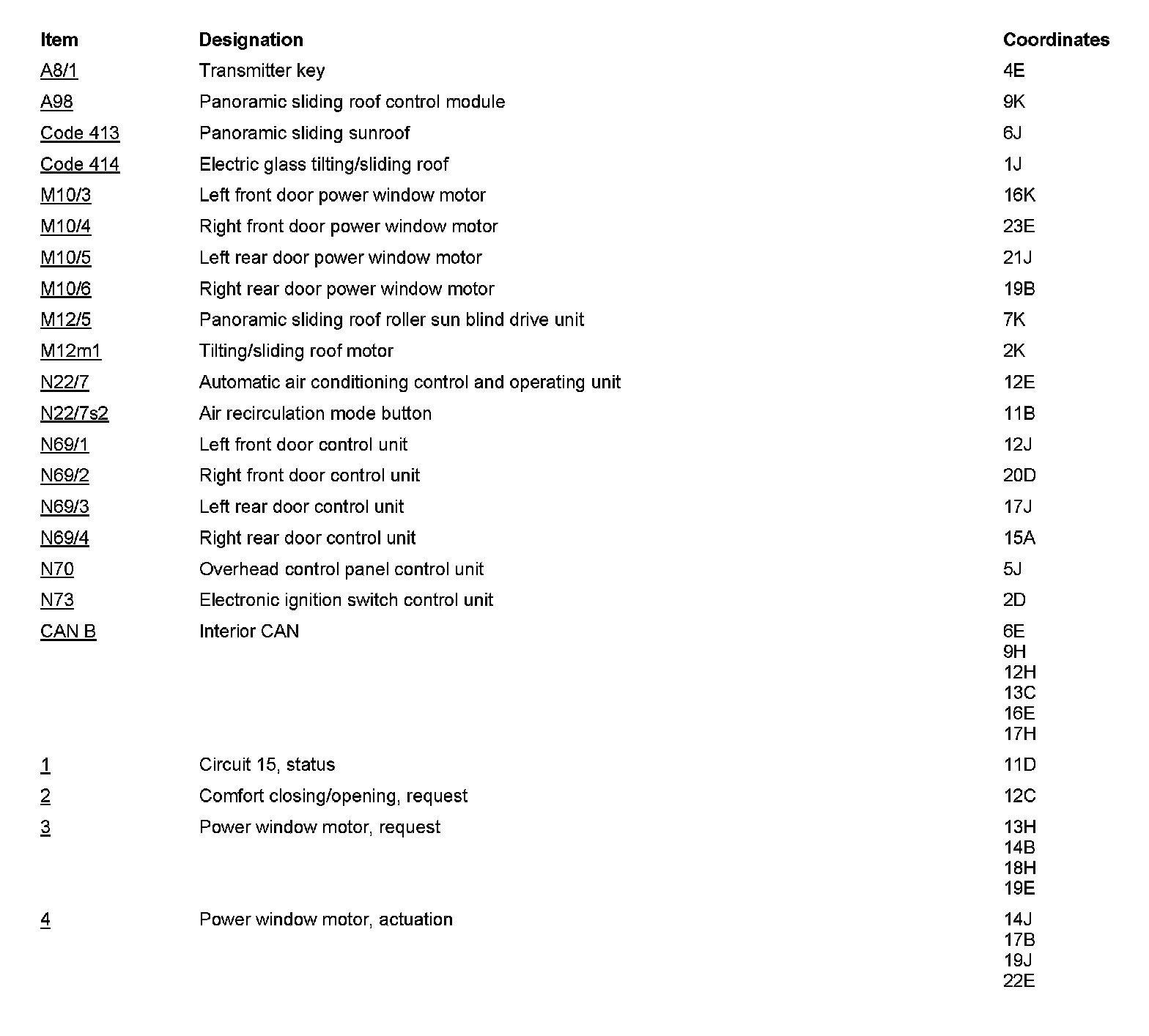

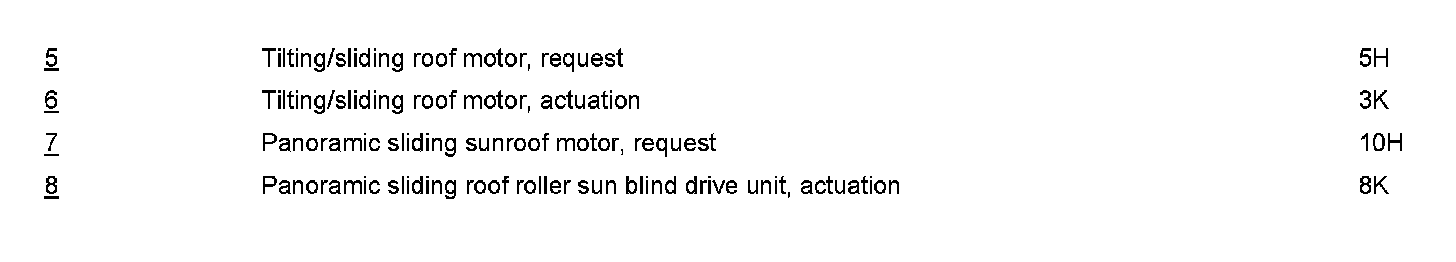

PE80.45-P-2053DAA Electrical Function Schematic For Convenience Opening/Closing Via Recirculated Air Function

PE80.45-P-2053DAA Electrical Function Schematic For Convenience Opening/Closing Via Recirculated Air Function
MODEL 212.0/ 2






























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
