AR68.30-P-4600EW Remove Paneling In Trunk



AR68.30-P-4600EW Remove Paneling In Trunk

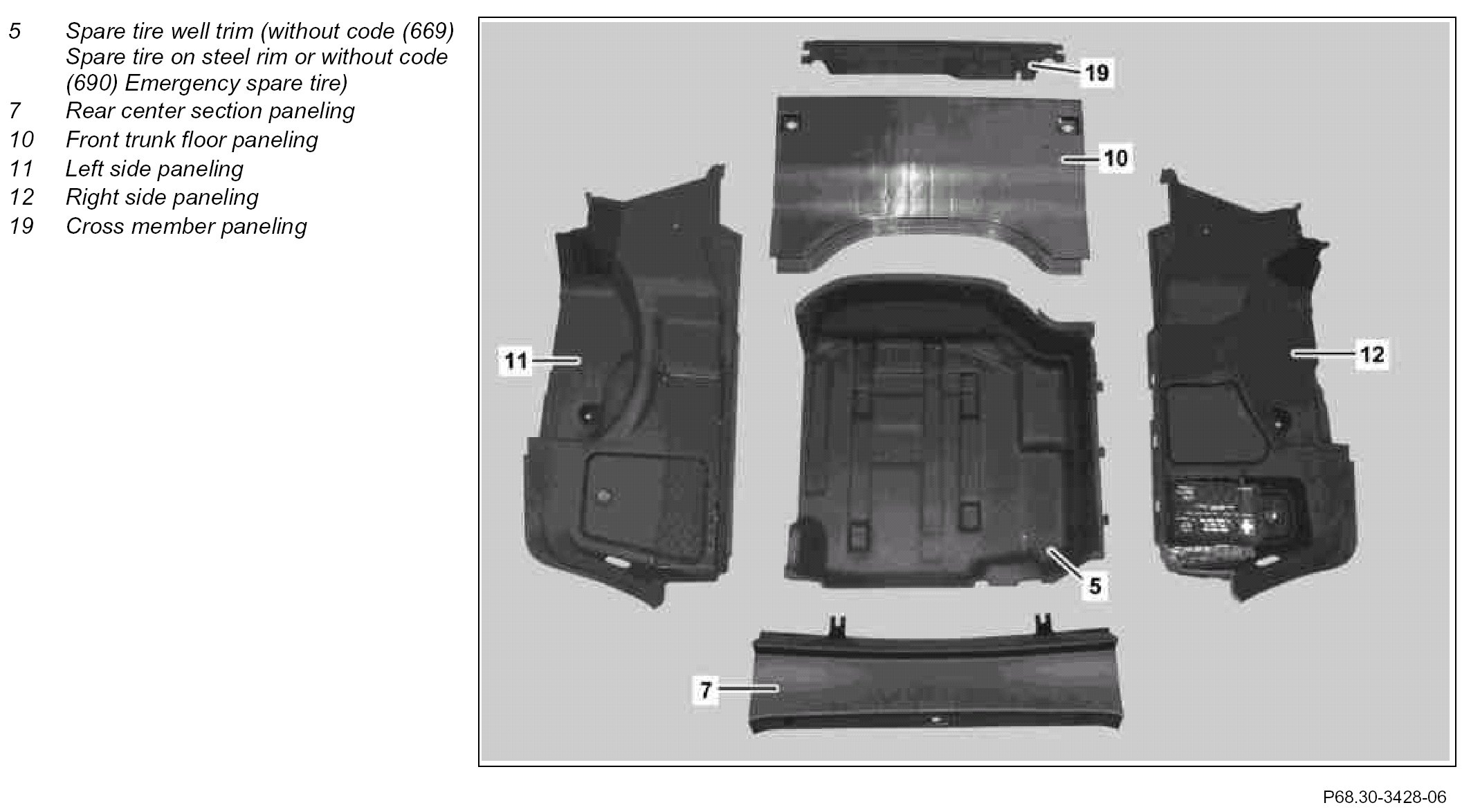

Component Identification:

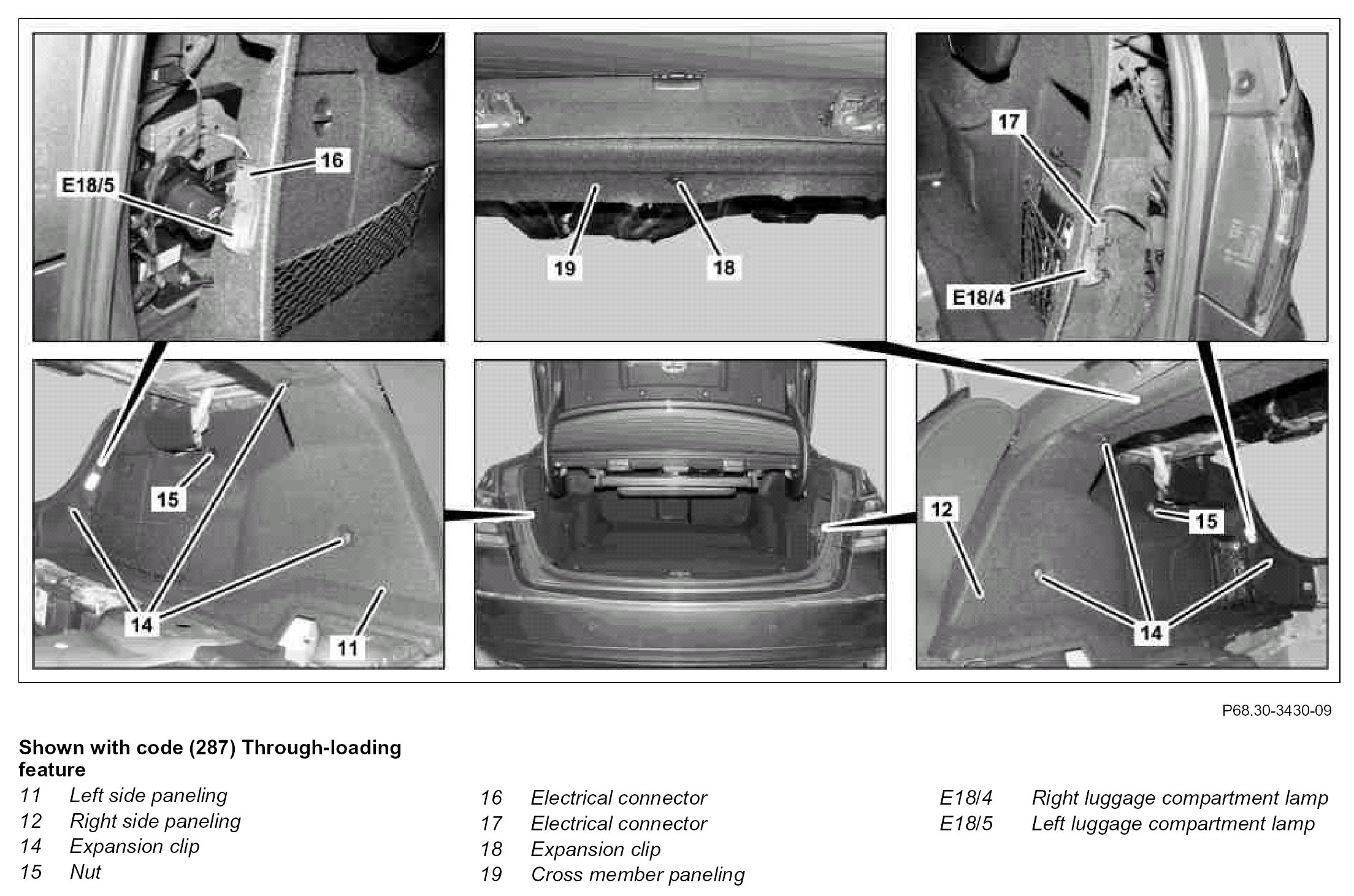

Component Identification:





Component Identification:

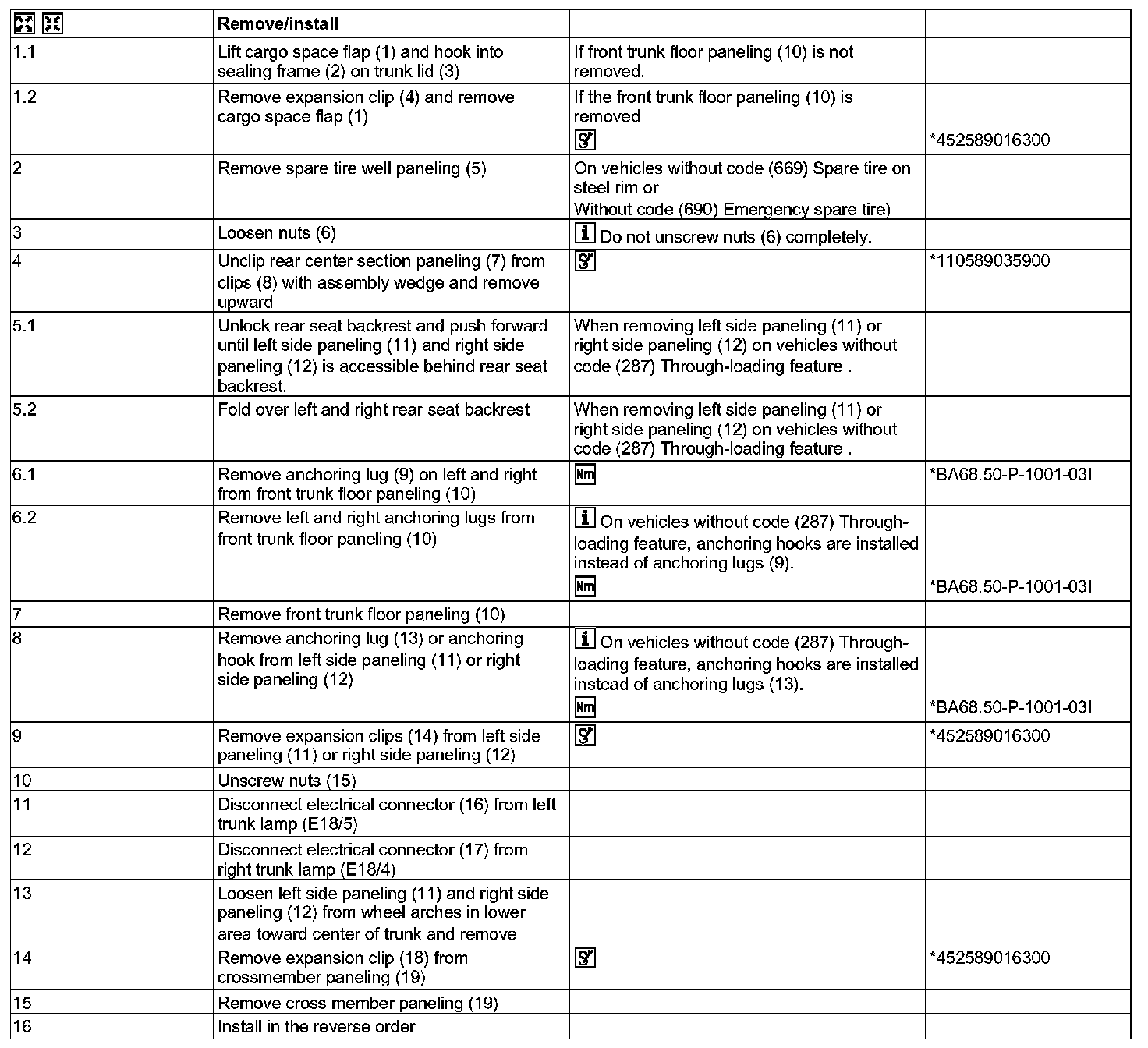

Steps 1.1 - 16:

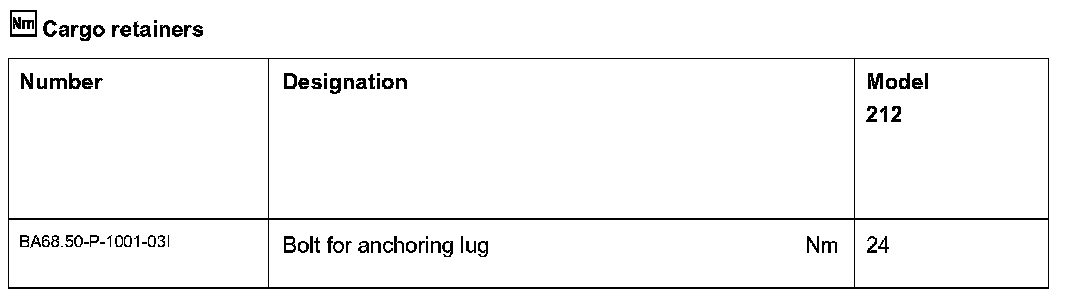

Cargo Retainers:

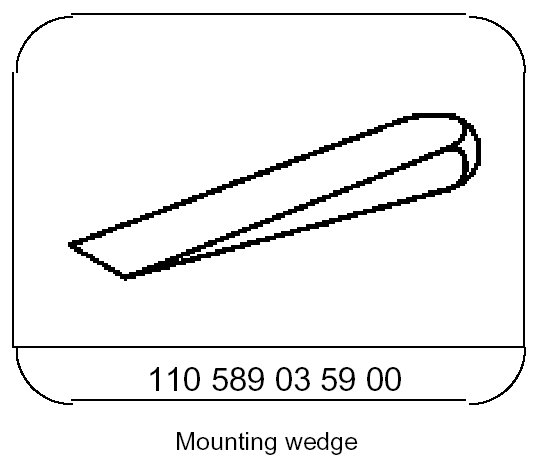

Special Tools:

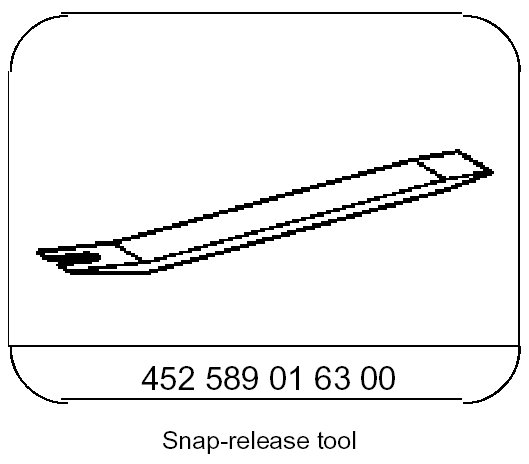

Special Tools:
