Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Service and Repair >> Procedures >> AN68.50-P-0006EW Retrofit EASY-PACK System Box In Trunk

AN68.50-P-0006EW Retrofit EASY-PACK System Box In Trunk




AN68.50-P-0006EW Retrofit EASY-PACK System Box in Trunk
MODEL 212.0

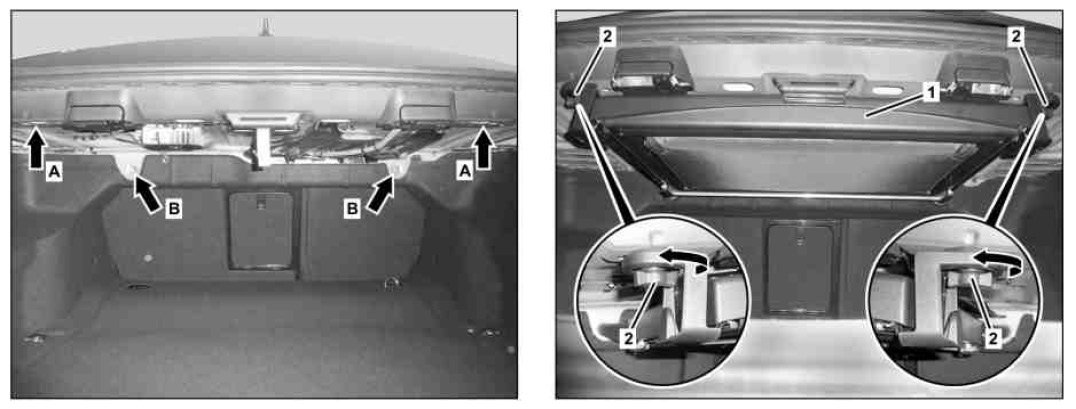

1 EASY-PACK trunk comfort box
2 Rotary lock
