AZ82.20-P-0001ESA Retrofit Illuminated Door Sill Molding

AZ82.20-P-0001ESA Retrofit Illuminated Door Sill Molding
MODEL 212.0 /2

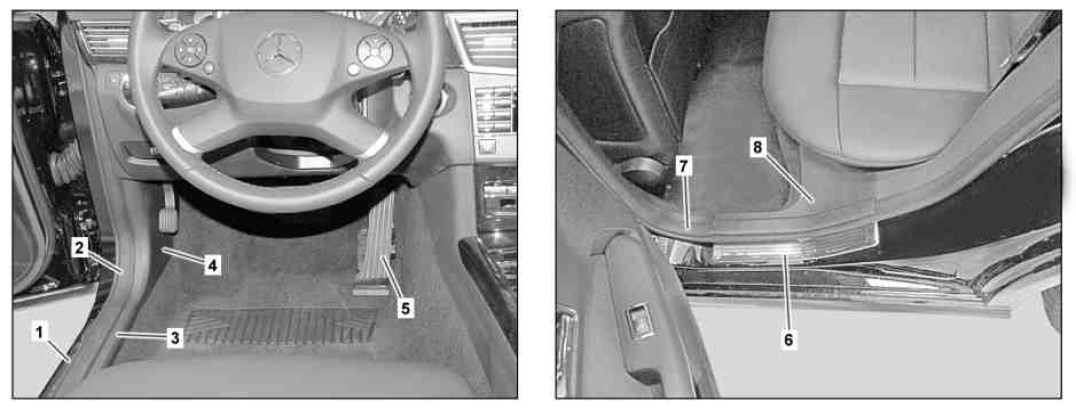

Installation of 4-fold door sill, AMG





1 Outer front door sill
2 Edge guard
3 Inner front door sill molding
4 A-pillar cover
5 Accelerator pedal
6 Outer rear door sill
7 Edge guard
8 Inner rear door sill

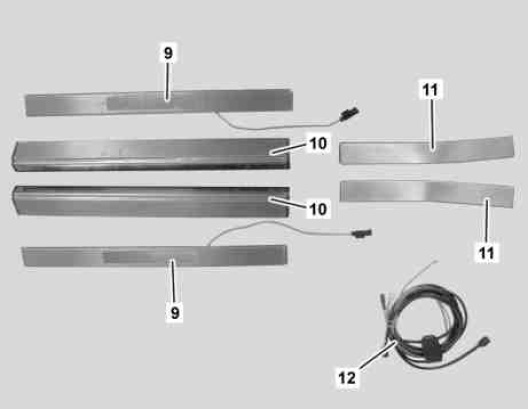

9 Illuminated door sill
10 New inner front door sill
11 Rear door sill faceplate
12 Wiring harness
