AZ82.20-P-0001EA Retrofit Illuminated Door Sill Molding

AZ82.20-P-0001EA Retrofit Illuminated Door Sill Molding
- MODEL 212.### (except 212.147 /148 /154) 1#

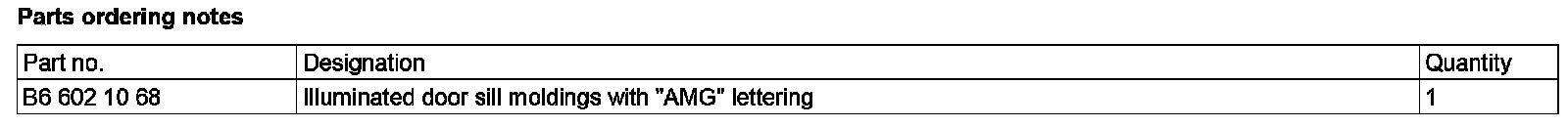

Installation of AMG door sill

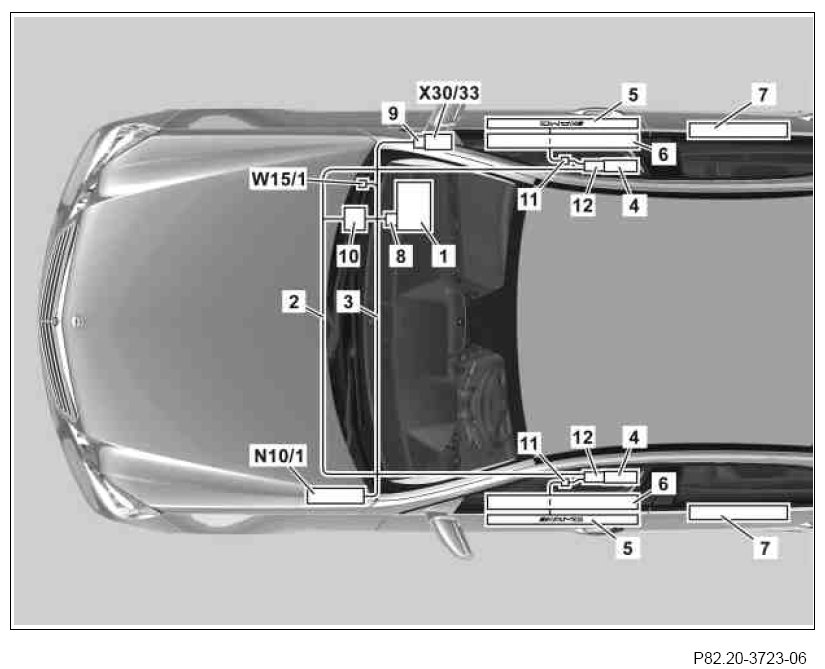

Routing diagram, shown on model 212.0






1 Illuminated door sill molding control unit
2 Wiring harness for illuminated door sill molding
3 Supply wiring harness
4 Converter
5 Illuminated door sill
6 Front door sills faceplate
7 Rear door sills faceplate
8 33-pin black connector (on illuminated door sill molding control unit (1))
9 Interior CAN connector
10 Connector, wiring harness for supply to wiring harness for illuminated door sill molding
11 Black 2-pin coupling (illuminated door sill molding wiring harness (2))
12 8-pin black connector (on converter (4))
N10/1 Front SAM control unit with fuse and relay module
W15/1 Right footwell ground point
X30/33 Right vehicle floor interior CAN voltage distributor electrical connector

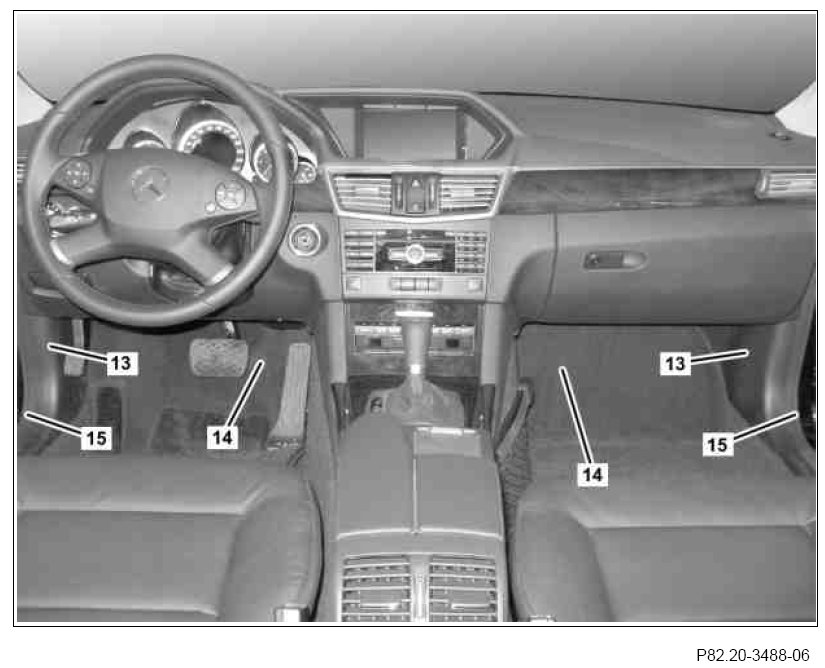

13 A-pillar cover
14 Front floor covering
15 Front edge guard











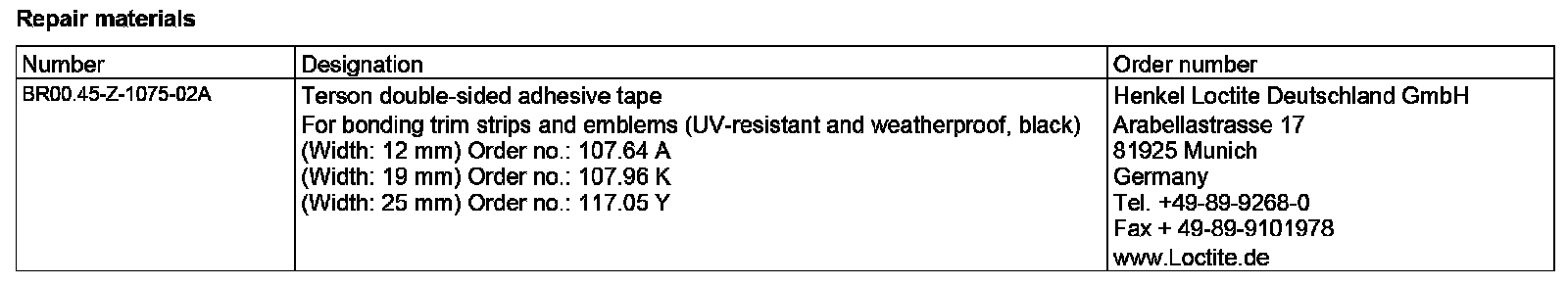

220 589 01 99 10, Crimp pliers
