Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Headliner
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR68.30-P-4300EW Remove/Install
Headliner

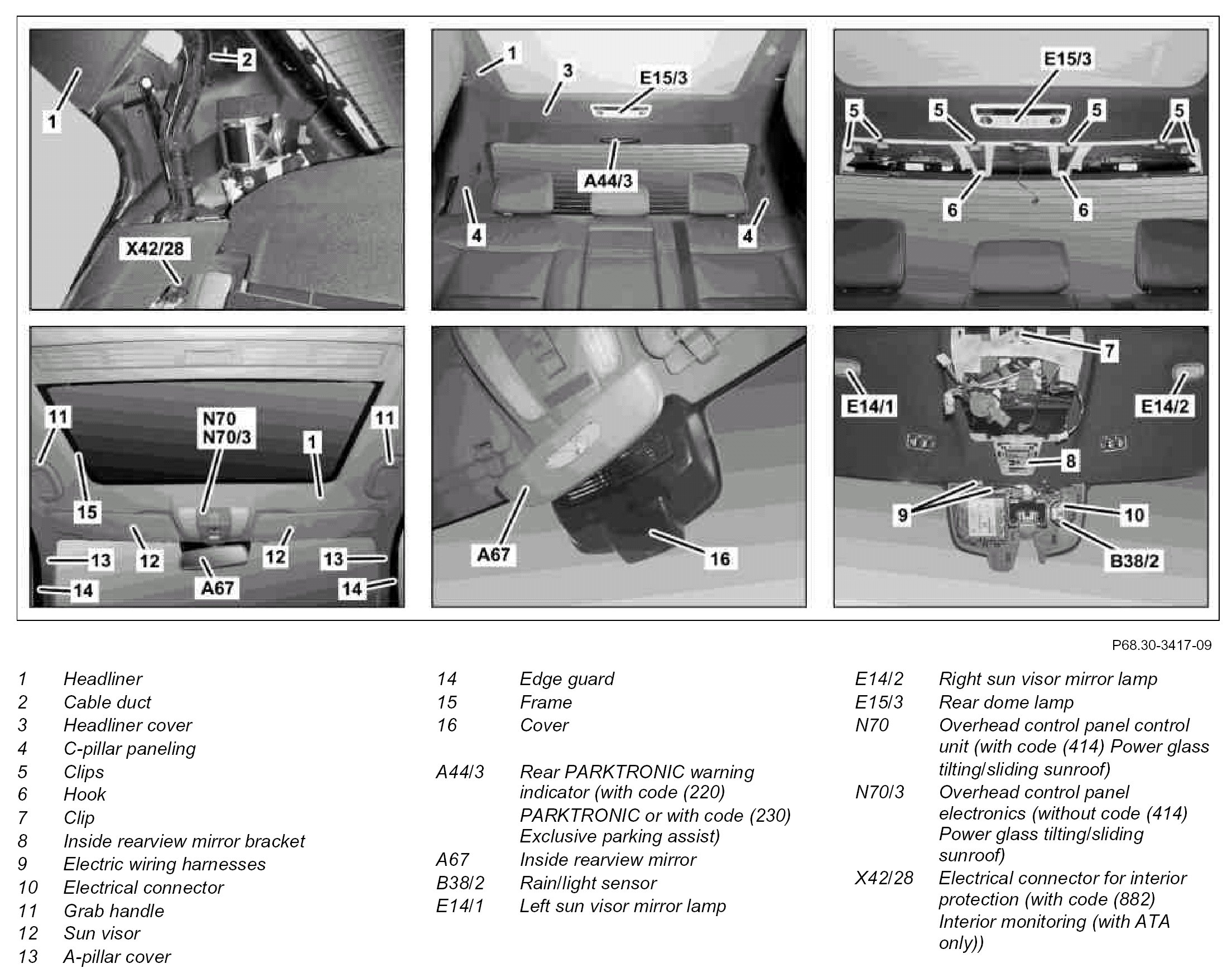

Component Identification:
Component Identification:

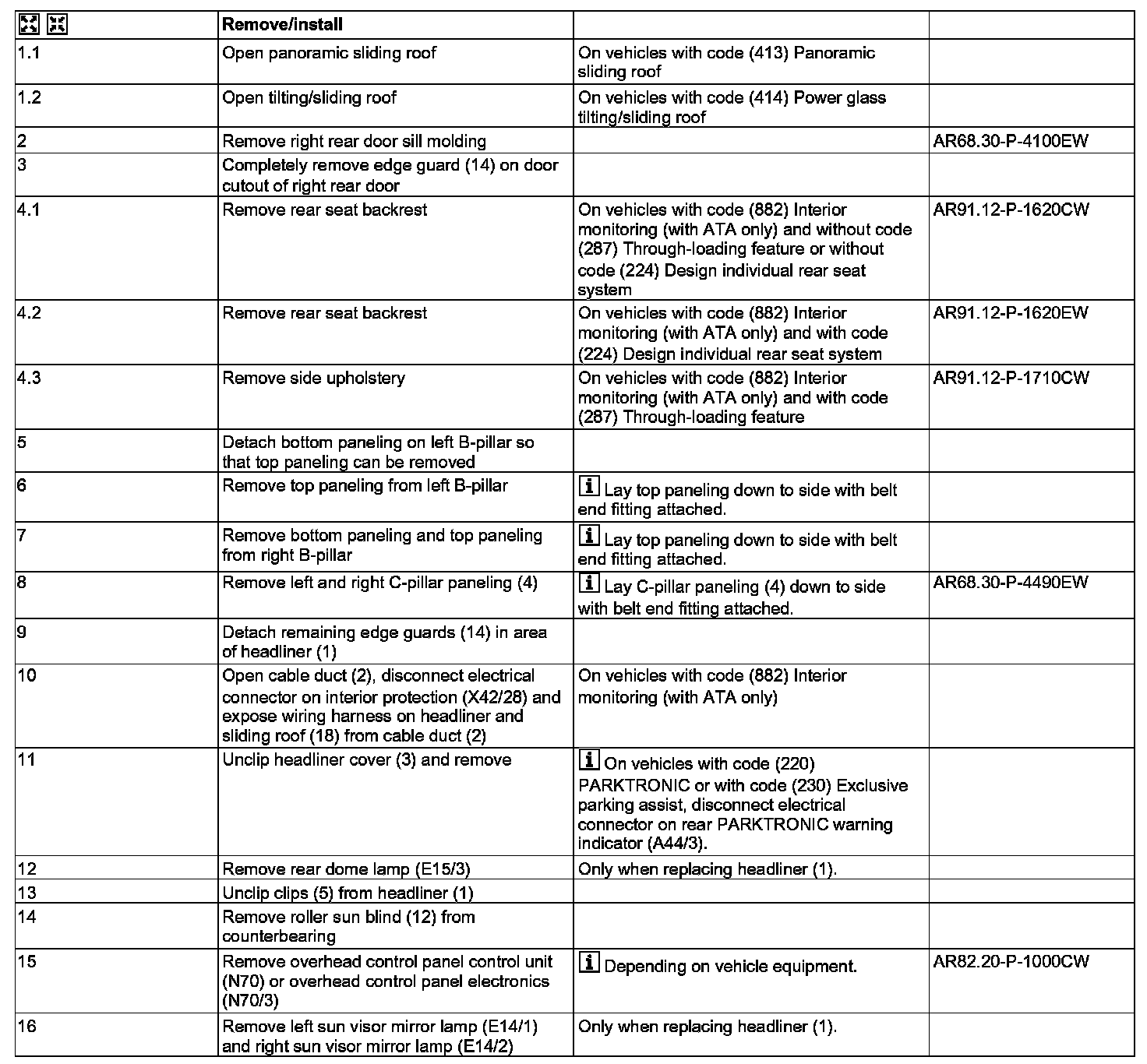

Steps 1.1 - 16:

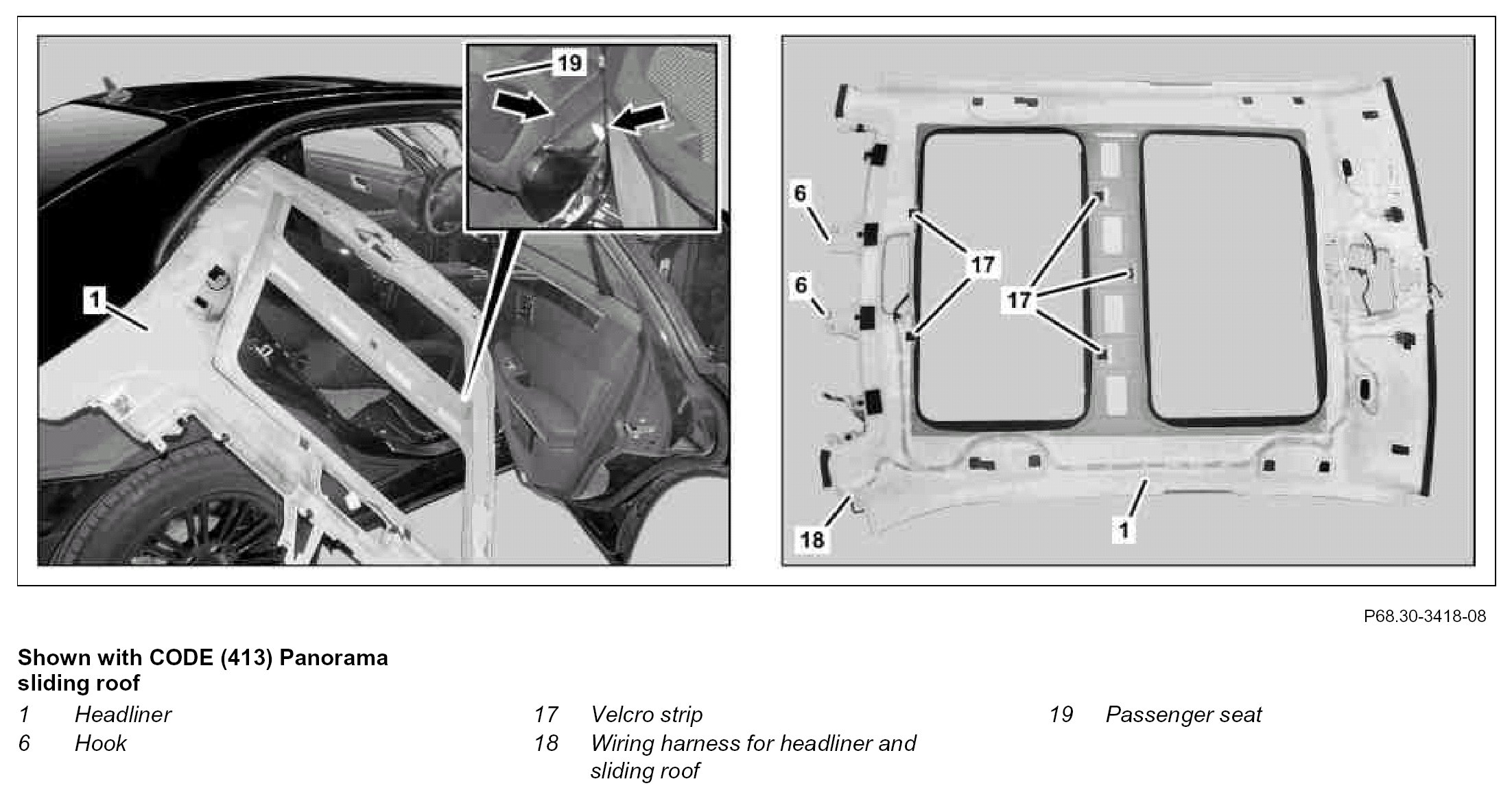

Steps 17 - 29:
