AR68.10-P-1400-02CW Remove, Install Electrical Connector on Media Interface on Glove Box

AR68.10-P-1400-02CW Remove, Install Electrical Connector on Media Interface On Glove Box
- with CODE (518) Media interface


Work procedure shown on model 212.

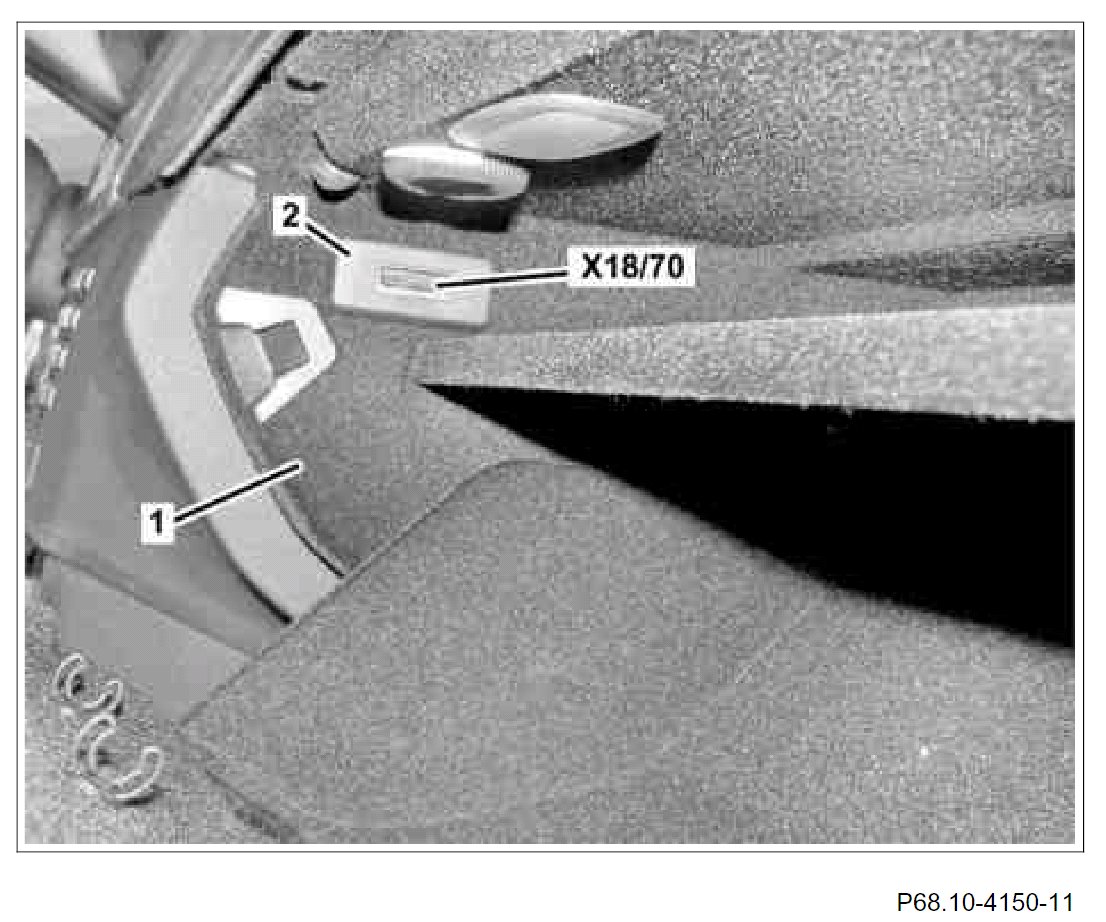

1. Open lid of glove box (1).
2. Unclip cover (2) from media interface electrical connector (X18/70) and remove.

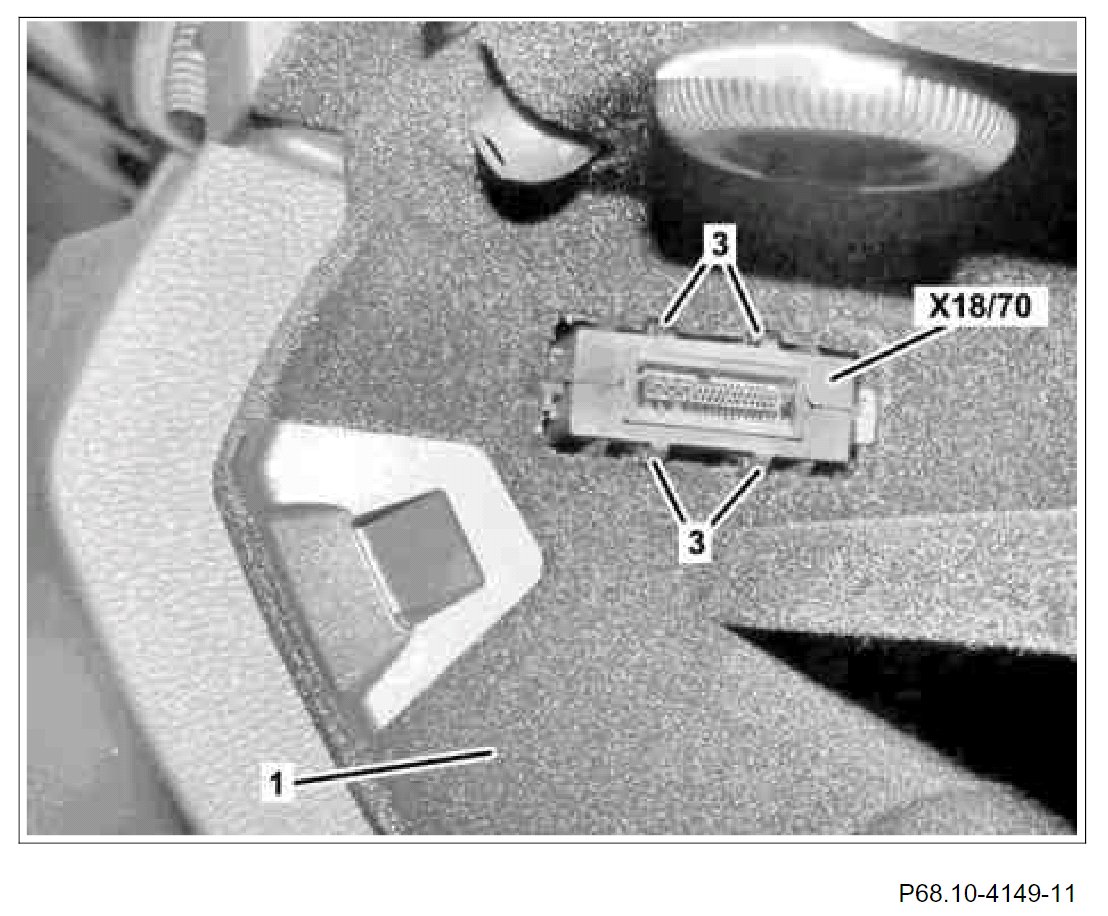

3. Unlock media interface electrical connector (X18/70) from catch hooks (3) on glove compartment (1) and guide media interface electrical connector (X18/70) out of glove compartment (1) toward rear.
Ensure that catch hooks (3) locks correctly on glove box (1).

4. Install in the reverse order.
