AR68.10-P-1200EW Remove/Install Glove Box Lid
AR68.10-P-1200EW Remove/Install Glove Box Lid
AR68.10-P-1200EW Remove/Install Glove Box Lid

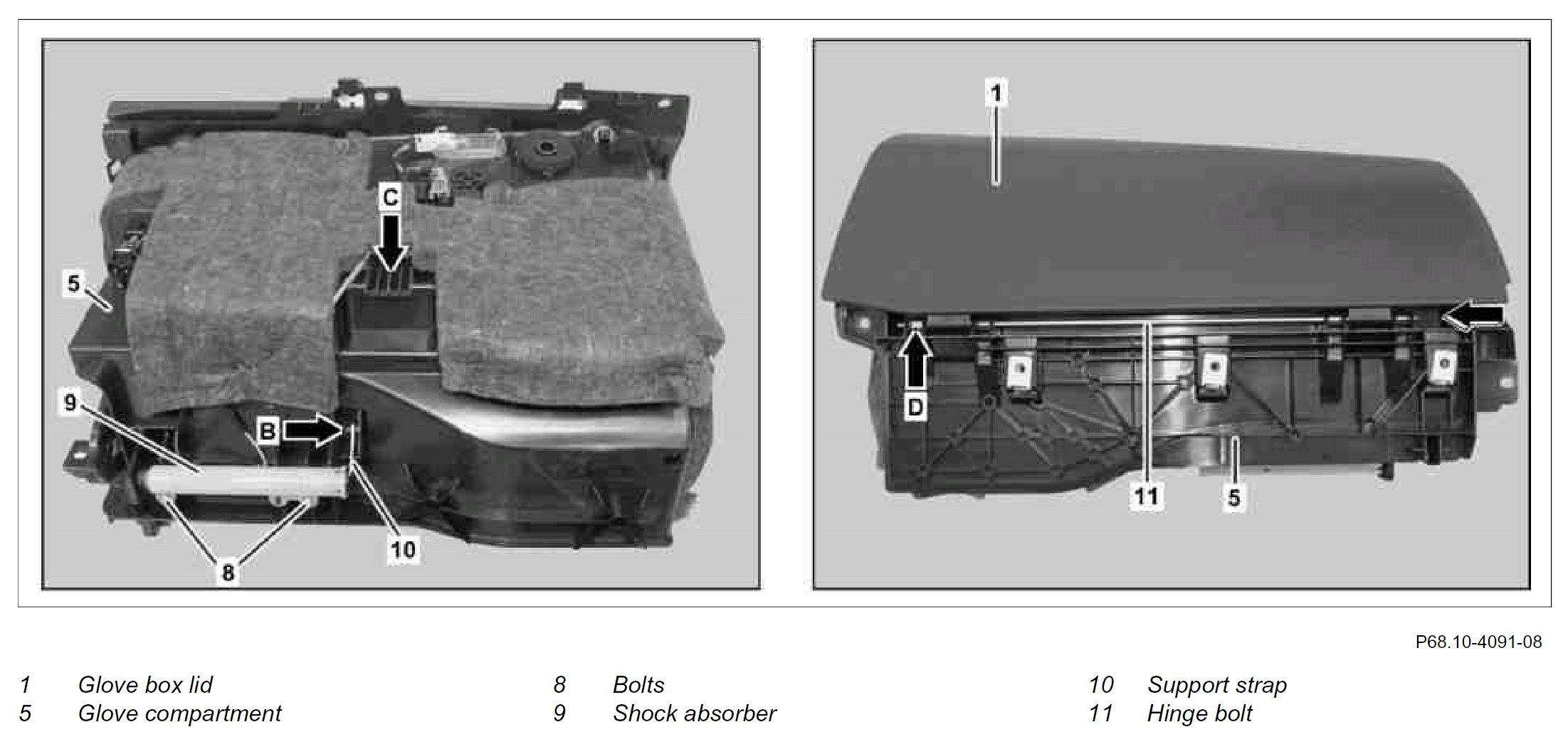

Component Identification:

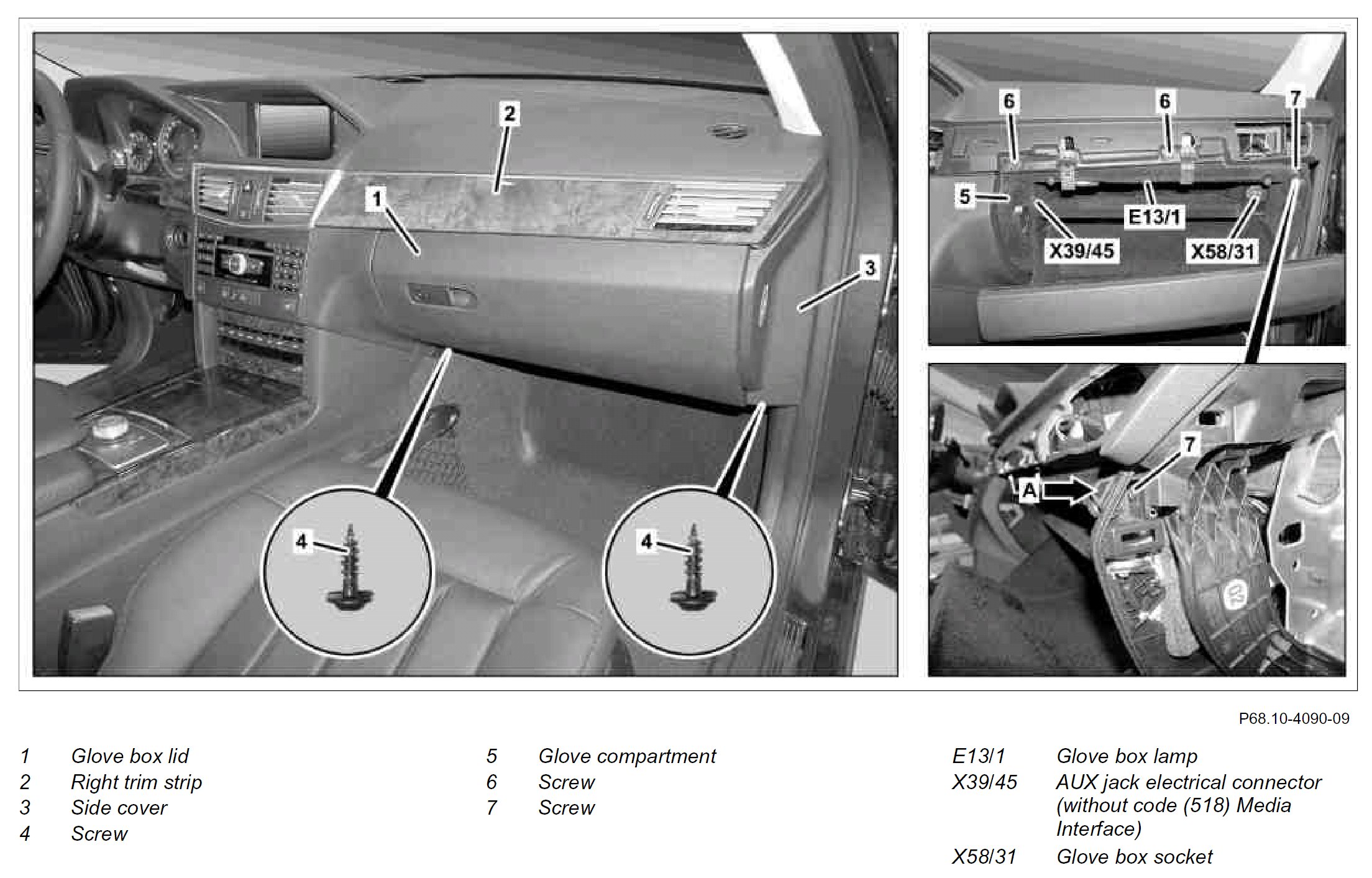

Component Identification:

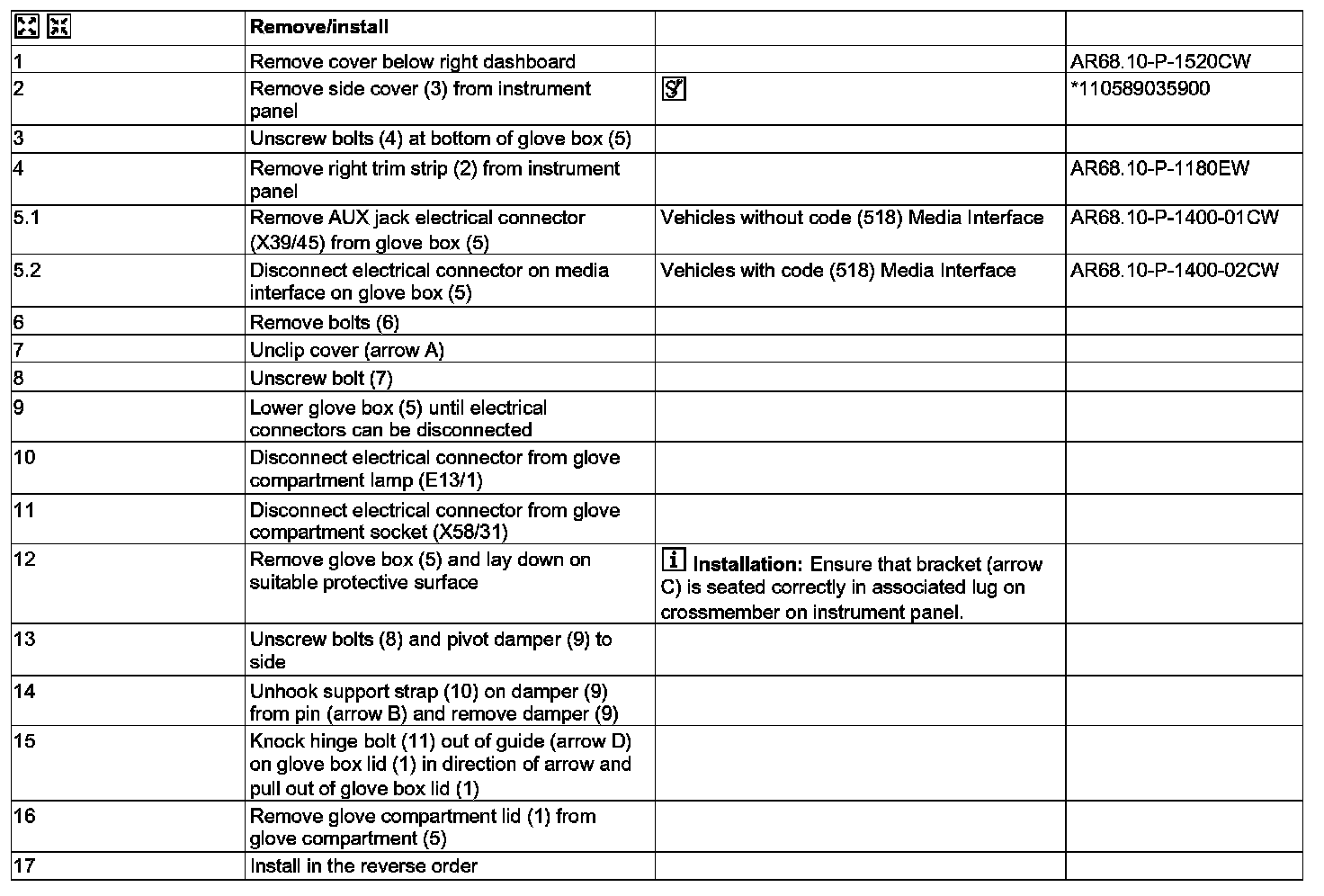

Steps 1 - 17:

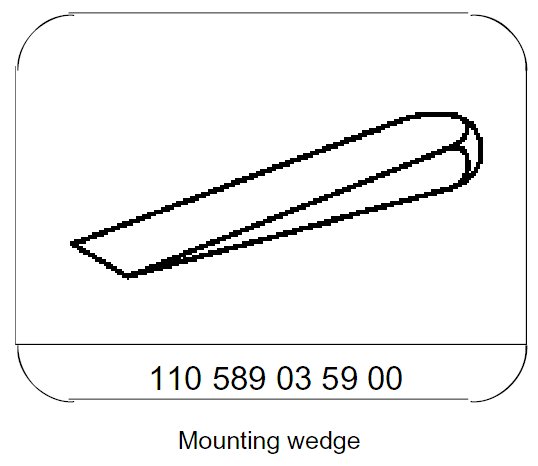

Special Tools:
